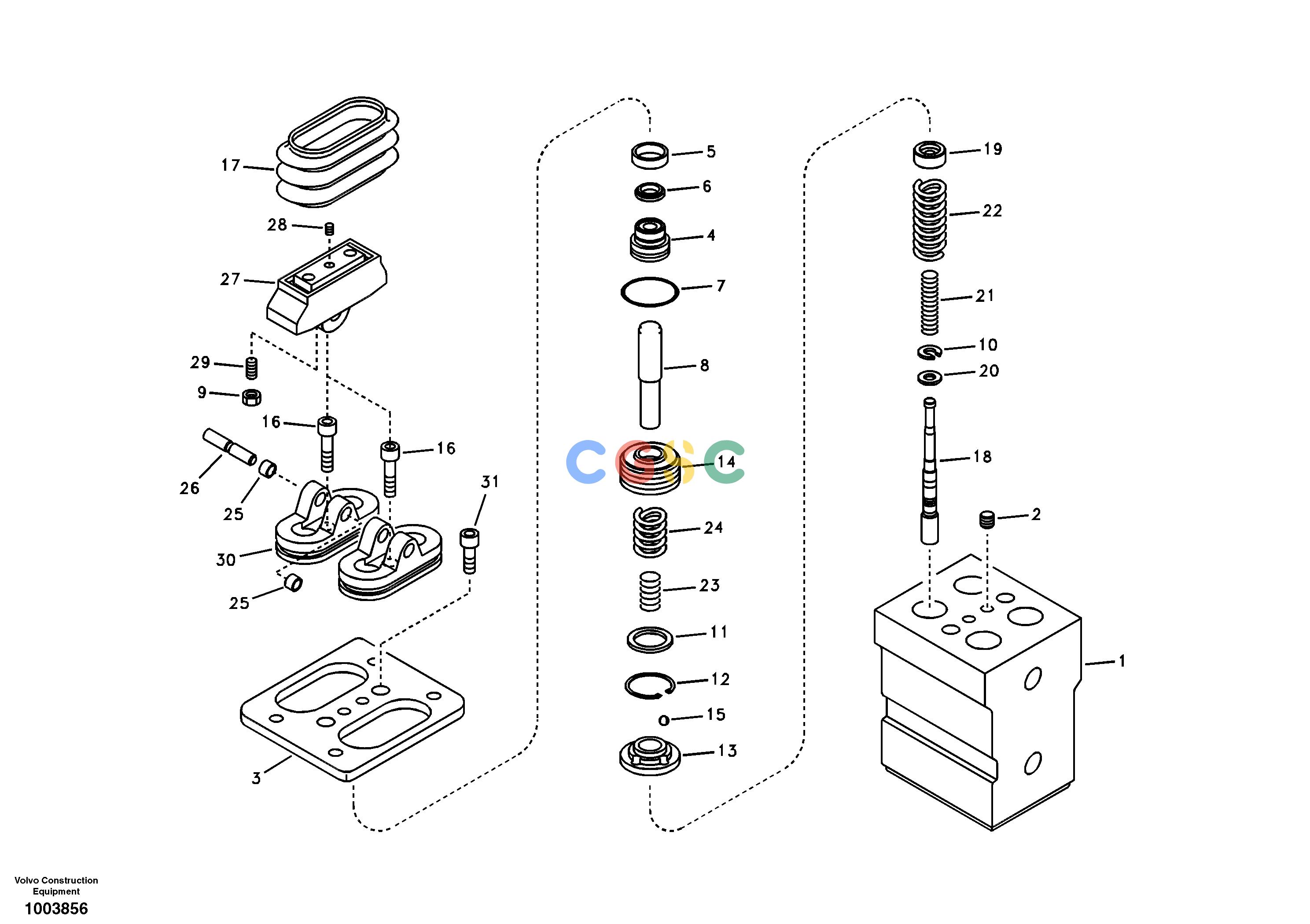

沃尔沃零件查询EC135B Remote control valve pedal, travel motorSER NO 20001-200798277787-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
338 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE14612097
|
[1] |
Pedal
|
|
| 1. |
VOE14516641
|
[1] |
Housing
|
|
| 2. |
VOE14560637
|
[2] |
Plug
|
|
| 3. |
VOE14516638
|
[1] |
Cover
|
|
| 4. |
VOE14516639
|
[4] |
Plug
|
|
| 5. |
SA8230-27430
|
[4] |
Grease cup
|
|
| 6. |
SA8230-30580
|
[4] |
Packing
|
|
| 7. |
VOE981291
|
[4] |
O-ring
|
|
| 8. |
VOE14516637
|
[4] |
Rod
|
|
| 9. |
VOE11705998
|
[4] |
Lock nut
|
|
| 10. |
SA8230-19690
|
[4] |
Washer
|
|
| 11. |
SA8230-27450
|
[4] |
Seat
|
|
| 12. |
SA8230-27470
|
[4] |
Ring
|
|
| 13. |
SA8230-27650
|
[4] |
Bushing
|
|
| 14. |
SA8230-27640
|
[4] |
Piston
|
|
| 15. |
VOE11705988
|
[12] |
Ball
|
|
| 16. |
VOE11705989
|
[2] |
Allen Hd Screw
|
|
| 17. |
VOE11706002
|
[2] |
Bellows
|
|
| 18. |
VOE14516636
|
[4] |
Spool
|
|
| 19. |
VOE14516635
|
[4] |
Seat
|
|
| 20. |
SA8230-19450
|
[4] |
Washer
|
|
| 21. |
VOE11705990
|
[4] |
Spring
|
|
| 22. |
VOE11705991
|
[4] |
Spring
|
|
| 23. |
VOE11705992
|
[4] |
Spring
|
|
| 24. |
SA8230-27520
|
[4] |
Spring
|
|
| 25. |
VOE11705994
|
[4] |
Bushing
|
|
| 26. |
VOE11705995
|
[2] |
Shaft
|
|
| 27. |
SA8230-19550
|
[2] |
Cam
|
|
| 28. |
SA8240-03730
|
[2] |
Screw
|
|
| 29. |
VOE11705997
|
[4] |
Set screw
|
|
| 30. |
VOE14516640
|
[2] |
Cover
|
|
| 31. |
VOE13967630
|
[2] |
Allen Hd Screw
|
|
| 100. |
SA8230-27530
|
[1] |
Sealing kit
|
|
