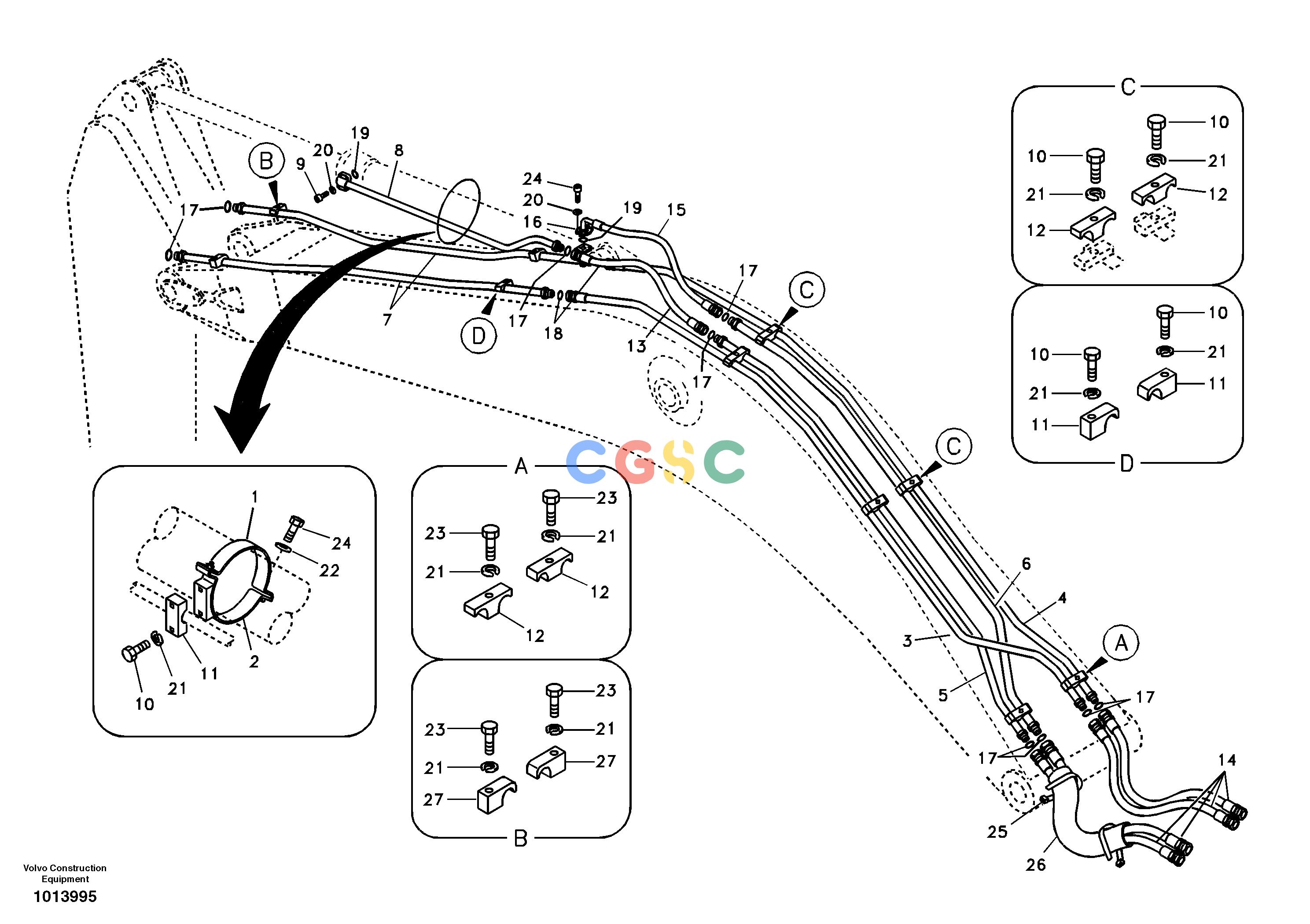

沃尔沃零件查询EC135B Working hydraulic, dipper arm cylinder on boom.SER NO 20001-200798278008-8278009NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
759 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14505765
|
[1] |
Clamp
|
|
| 2. |
VOE14507748
|
[1] |
Clamp
|
|
| 3. |
SA1174-01881
|
[1] |
Pipe
|
|
| 4. |
SA1174-01891
|
[1] |
Pipe
|
|
| 5. |
VOE14675454
|
[1] |
Pipe
|
|
| 6. |
VOE14508014
|
[1] |
Pipe
|
|
| 7. |
VOE14508015
|
[2] |
Pipe
|
|
| 8. |
SA1174-01920
|
|
Pipe
|
|
| 9. |
VOE984083
|
|
Hex. socket screw
|
|
| 10. |
VOE60110356
|
[7] |
Hexagon screw
|
|
| 11. |
VOE14881234
|
[3] |
Clamp
|
|
| 12. |
VOE14881242
|
[6] |
Clamp
|
|
| 13. |
VOE936214
|
[1] |
Hose assembly
|
|
| 14. |
VOE936222
|
[4] |
Hose assembly
|
|
| 15. |
VOE938611
|
[1] |
Hose assembly
|
|
| 16. |
SA9425-51021
|
[2] |
Flange
|
|
| 17. |
VOE981289
|
[8] |
O-ring
|
|
| 18. |
VOE981290
|
[2] |
O-ring
|
|
| 19. |
VOE990742
|
[1] |
O-ring
|
|
| 20. |
VOE955922
|
[4] |
Spring washer
|
|
| 21. |
VOE955926
|
[11] |
Spring washer
|
|
| 22. |
VOE992040
|
[2] |
Plain washer
|
|
| 23. |
VOE997464
|
[4] |
Hexagon screw
|
|
| 24. |
VOE983252
|
[6] |
Hexagon screw
|
|
| 25. |
SA9314-02300
|
[2] |
Cable tie
|
|
| 26. |
VOE14531110
|
[1] |
Cover
|
|
| 27. |
VOE14881234
|
|
Clamp
|
|
