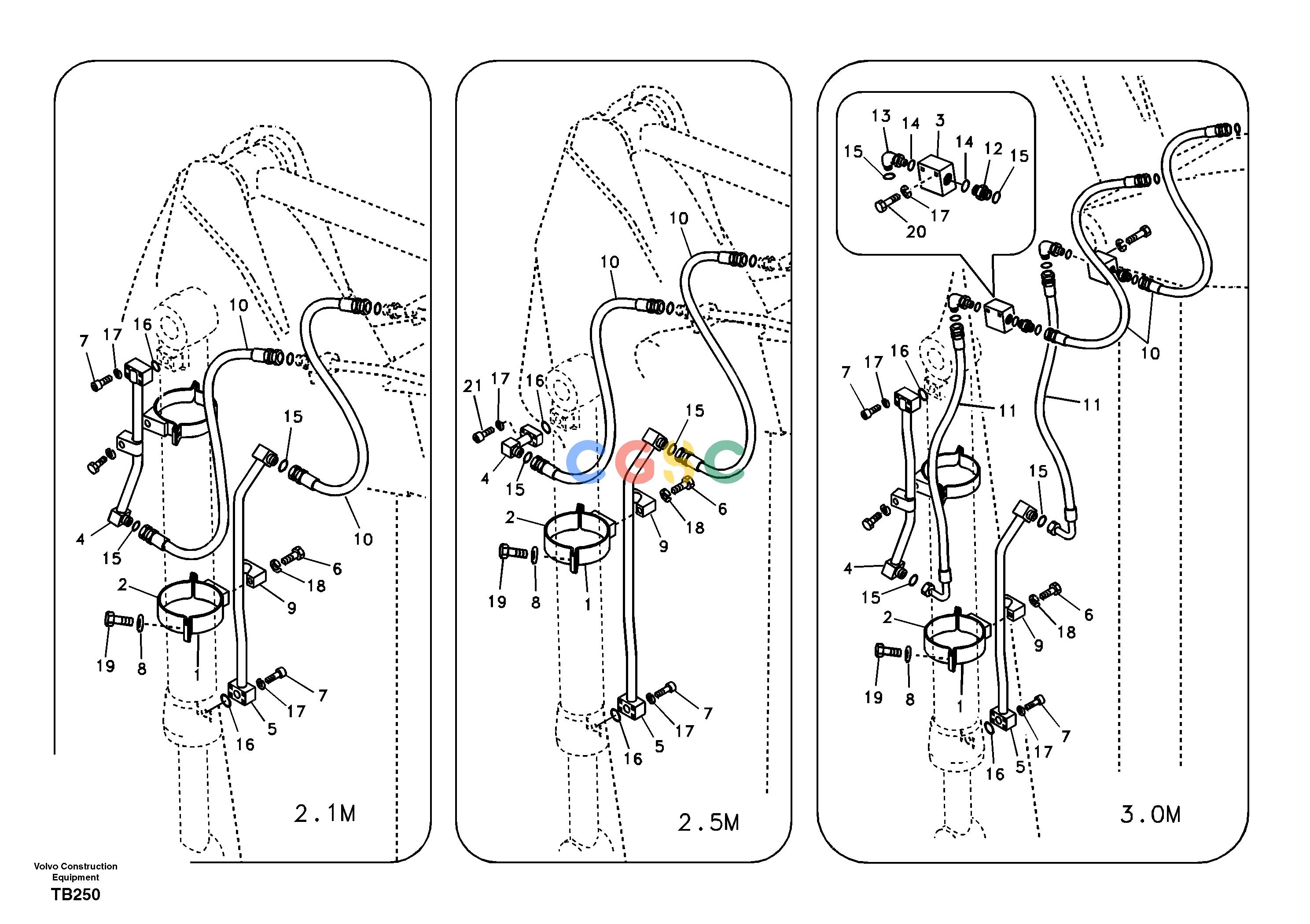

沃尔沃零件查询EC135B Working hydraulic, bucket cylinder on dipper armSER NO 20001-200798277976-8277977NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
789 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14507923
|
[2] |
Clamp
|
|
| 2. |
VOE14507922
|
[2] |
Clamp
|
|
| 3. |
VOE14509899
|
|
Block
|
|
| 4. |
VOE14675524
|
[1] |
Pipe
|
|
| |
VOE14675520
|
|
Pipe
|
|
| 5. |
VOE14675525
|
[1] |
Pipe
|
|
| |
VOE14675521
|
|
Pipe
|
|
| 6. |
VOE60110356
|
[2] |
Hexagon screw
|
|
| 7. |
VOE984083
|
[8] |
Hex. socket screw
|
|
| 8. |
VOE992040
|
[4] |
Plain washer
|
|
| 9. |
VOE14881234
|
[2] |
Clamp
|
|
| 10. |
VOE937764
|
[2] |
Hose assembly
|
|
| 11. |
VOE938603
|
|
Hose assembly
|
|
| 12. |
SA9419-11040
|
|
Connector
|
|
| 13. |
SA9419-21030
|
|
Connector
|
|
| 14. |
VOE983524
|
|
O-ring
|
|
| 15. |
VOE981289
|
[2] |
O-ring
|
|
| 16. |
VOE990742
|
[2] |
O-ring
|
|
| 17. |
VOE955922
|
[8] |
Spring washer
|
|
| 18. |
VOE955926
|
[2] |
Spring washer
|
|
| 19. |
VOE983252
|
[4] |
Hexagon screw
|
|
| 20. |
VOE983256
|
|
Hexagon screw
|
|
| 21. |
VOE984082
|
|
Hex. socket screw
|
|
