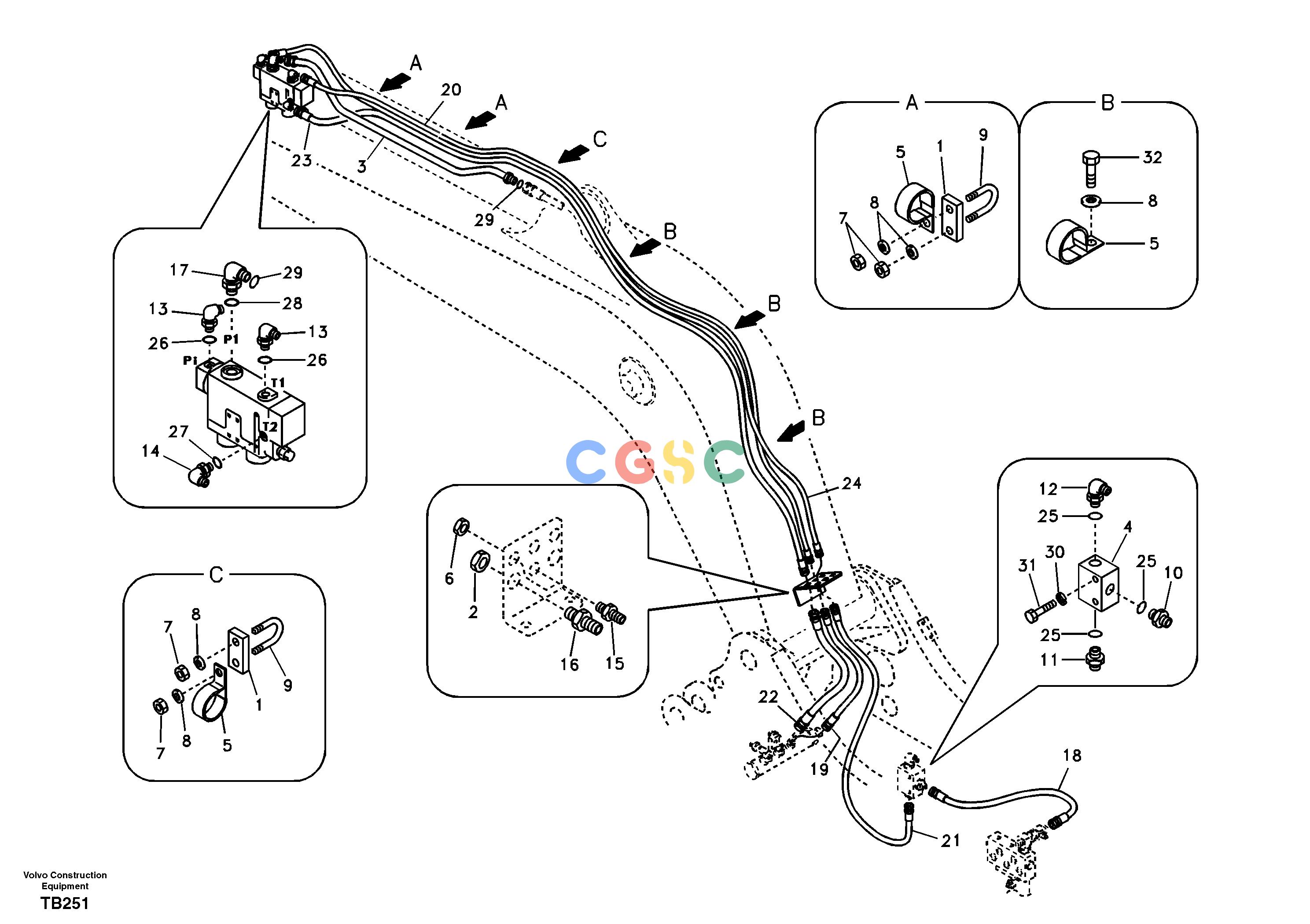

沃尔沃零件查询EC135B Working hydraulic, dipper arm ruptureSER NO 20001-200798278008-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
390 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1174-51182
|
[3] |
Plate
|
|
| 2. |
SA1174-53450
|
[1] |
Nut
|
|
| 3. |
VOE14675522
|
[1] |
Pipe
|
|
| 4. |
VOE14531005
|
[1] |
Block
|
|
| 5. |
VOE14515523
|
[6] |
Clip
|
|
| 6. |
SA2043-00120
|
[2] |
Hexagon nut
|
|
| 7. |
VOE993197
|
[6] |
Hexagon nut
|
|
| 8. |
VOE992040
|
[9] |
Plain washer
|
|
| 9. |
VOE14880630
|
[3] |
U-bolt
|
|
| 10. |
SA9412-11020
|
[1] |
Nipple
|
|
| 11. |
SA9412-11120
|
[1] |
Connector
|
|
| 12. |
SA9413-11010
|
[1] |
Elbow nipple
|
|
| 13. |
SA9413-11020
|
[2] |
Elbow nipple
|
|
| 14. |
SA9413-11030
|
[1] |
Elbow nipple
|
|
| 15. |
SA9416-11101
|
[2] |
Connector
|
|
| 16. |
SA9416-11111
|
[1] |
Connector
|
|
| 17. |
VOE14884882
|
[1] |
Elbow Nipple
|
|
| 18. |
SA9451-02220
|
[1] |
Hose assembly
|
|
| 19. |
SA9451-03215
|
[1] |
Hose assembly
|
|
| 20. |
SA9451-03288
|
[1] |
Hose assembly
|
|
| 21. |
SA9451-03525
|
[1] |
Hose assembly
|
|
| 22. |
SA9451-04315
|
[1] |
Hose assembly
|
|
| 23. |
SA9451-04388
|
[1] |
Hose assembly
|
|
| 24. |
SA9453-03592
|
[1] |
Hose assembly
|
|
| 25. |
VOE983502
|
[3] |
O-ring
|
|
| 26. |
VOE983505
|
[2] |
O-ring
|
|
| 27. |
VOE990557
|
[1] |
O-ring
|
|
| 28. |
VOE983527
|
[1] |
O-ring
|
|
| 29. |
VOE981289
|
[2] |
O-ring
|
|
| 30. |
VOE955921
|
[2] |
Spring washer
|
|
| 31. |
VOE983248
|
[2] |
Hexagon screw
|
|
| 32. |
VOE983252
|
[3] |
Hexagon screw
|
|
