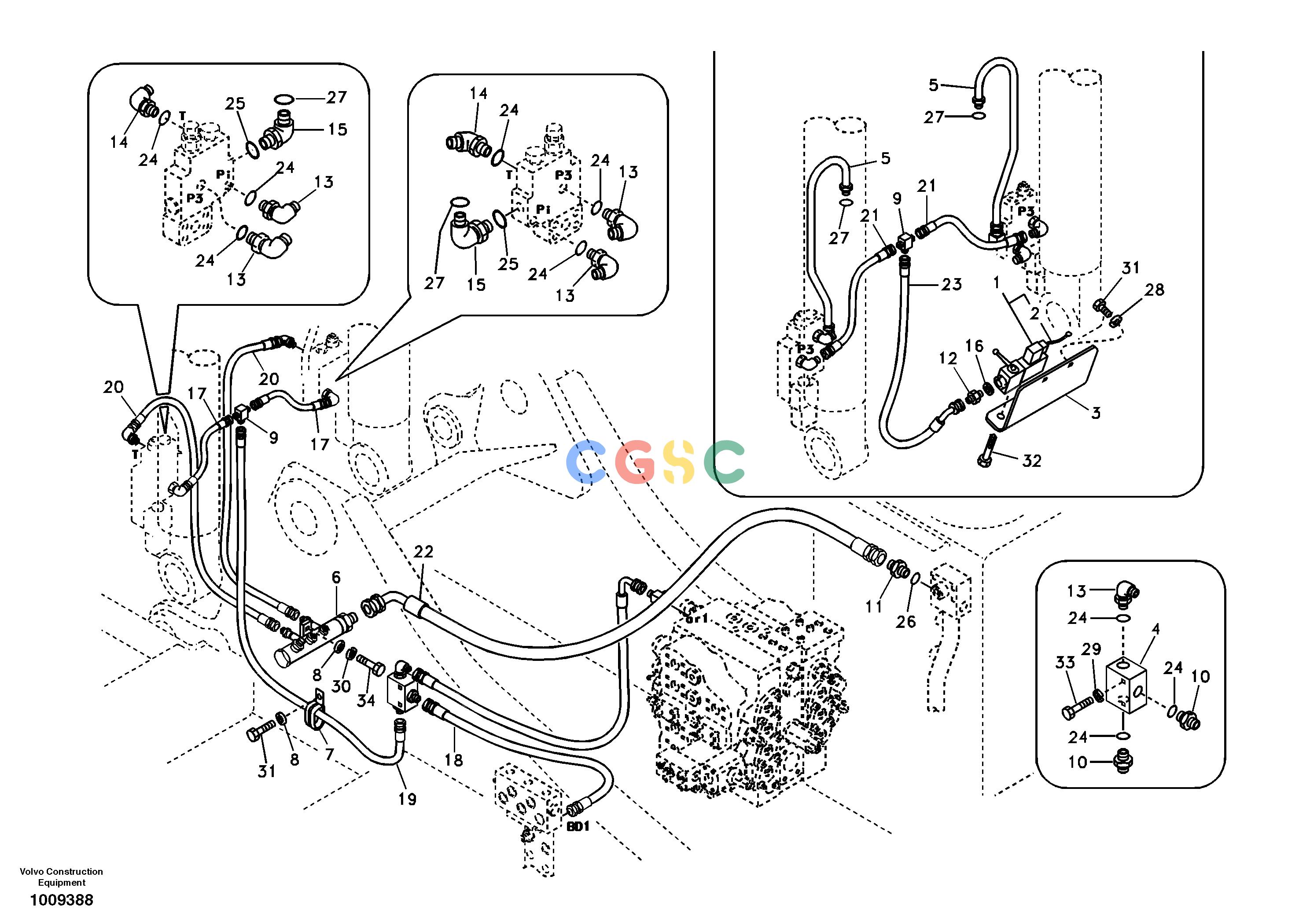

沃尔沃零件查询EC135B Working hydraulic, boom ruptureSER NO 20001-200798278006-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
973 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14515278
|
[1] |
Switch
|
|
| 2. |
VOE14571142
|
[1] |
Wiring harness
|
|
| 3. |
VOE14531112
|
[1] |
Bracket
|
|
| 4. |
VOE14531005
|
[1] |
Block
|
|
| 5. |
SA1174-51082
|
[2] |
Pipe
|
|
| 6. |
VOE14676999
|
[1] |
Pipe
|
|
| 7. |
VOE14515524
|
[1] |
Clip
|
|
| 8. |
VOE992040
|
[3] |
Plain washer
|
|
| 9. |
SA9411-92010
|
[2] |
T-nipple
|
|
| 10. |
SA9412-11020
|
[2] |
Connector
|
|
| 11. |
SA9412-11060
|
[1] |
Connector
|
|
| 12. |
SA9412-12020
|
[1] |
Connector
|
|
| 13. |
SA9413-11010
|
[5] |
Elbow nipple
|
|
| 14. |
SA9413-11160
|
[2] |
Elbow
|
|
| 15. |
SA9419-21010
|
[2] |
Connector
|
|
| 16. |
VOE907133
|
[1] |
Gasket
|
|
| 17. |
SA9451-02208
|
[2] |
Hose assembly
|
|
| 18. |
SA9451-02220
|
[1] |
Hose assembly
|
|
| 19. |
SA9451-02330
|
[1] |
Hose assembly
|
|
| 20. |
SA9451-03219
|
[2] |
Hose assembly
|
|
| 21. |
SA9451-32608
|
[2] |
Hose assembly
|
|
| 22. |
SA9453-06225
|
[1] |
Hose assembly
|
|
| 23. |
SA9453-32623
|
[1] |
Hose assembly
|
|
| 24. |
VOE983502
|
[9] |
O-ring
|
|
| 25. |
VOE990557
|
[2] |
O-ring
|
|
| 26. |
VOE983527
|
[1] |
O-ring
|
|
| 27. |
VOE990738
|
[4] |
O-ring
|
|
| 28. |
VOE955918
|
[2] |
Spring washer
|
|
| 29. |
VOE955921
|
[2] |
Spring washer
|
|
| 30. |
VOE955922
|
[2] |
Spring washer
|
|
| 31. |
VOE946441
|
[3] |
Flange screw
|
|
| 32. |
VOE969407
|
[2] |
Six point socket screw
|
|
| 33. |
VOE983245
|
[2] |
Hexagon screw
|
|
| 34. |
VOE983252
|
[2] |
Hexagon screw
|
|
