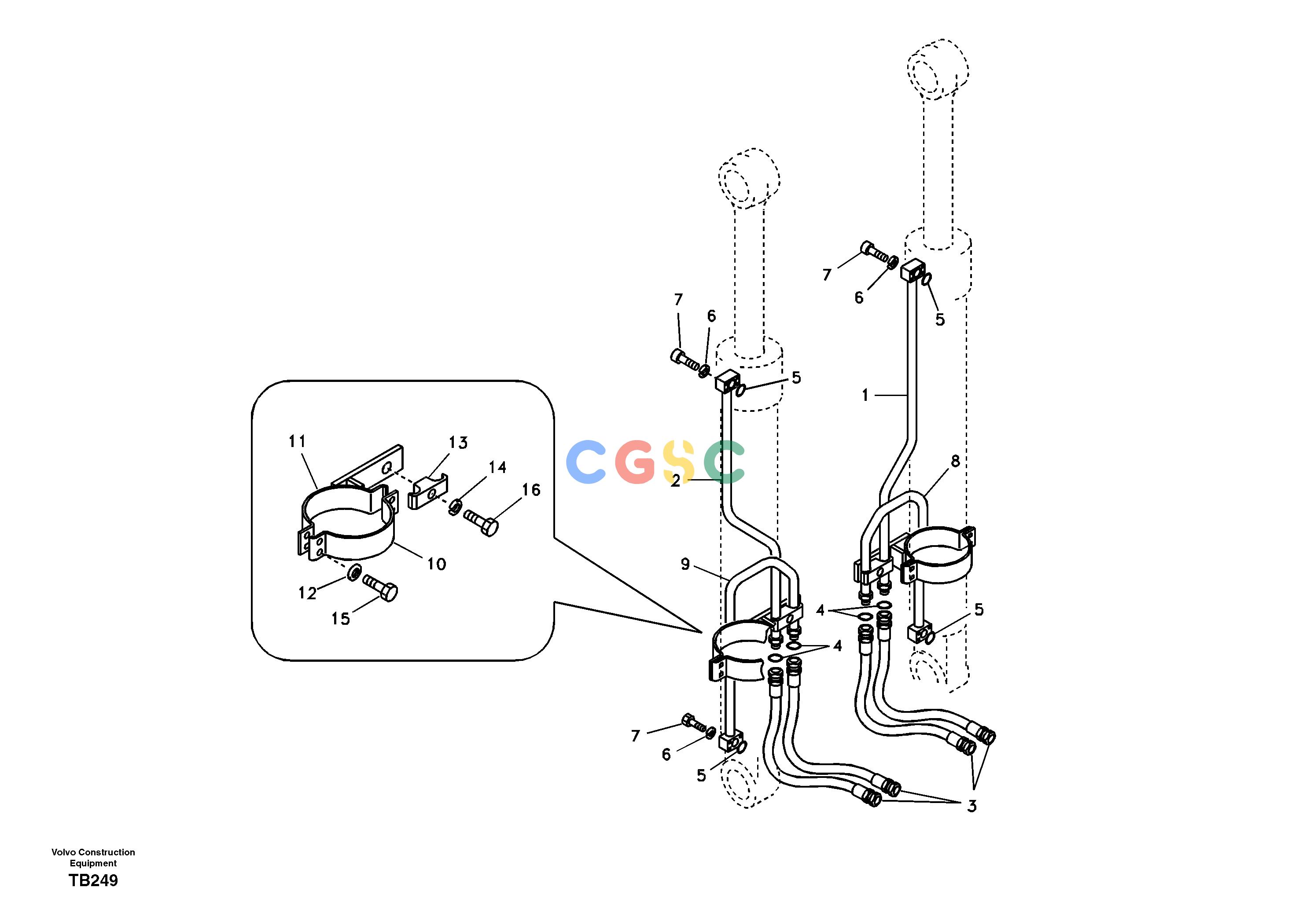

沃尔沃零件查询EC135B Working hydraulic, boom cylinderSER NO 20001-200798277787-8278005NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
309 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14674412
|
[1] |
Pipe
|
|
| 2. |
VOE14674411
|
[1] |
Pipe
|
|
| 3. |
VOE937770
|
[4] |
Hose assembly
|
|
| 4. |
VOE990738
|
[2] |
O-ring
|
|
| 5. |
VOE990741
|
[2] |
O-ring
|
|
| 6. |
VOE955921
|
[8] |
Spring washer
|
|
| 7. |
VOE983245
|
[8] |
Hexagon screw
|
|
| 8. |
SA1174-00693
|
|
Pipe
|
|
| 9. |
SA1174-00703
|
|
Pipe
|
|
| 10. |
VOE14507920
|
|
Clamp
|
|
| 11. |
VOE14507921
|
|
Clamp
|
|
| 12. |
VOE992040
|
|
Plain washer
|
|
| 13. |
VOE14881241
|
|
Clamp
|
|
| 14. |
VOE955922
|
|
Spring washer
|
|
| 15. |
VOE983252
|
|
Hexagon screw
|
|
| 16. |
VOE983254
|
|
Hexagon screw
|
|
