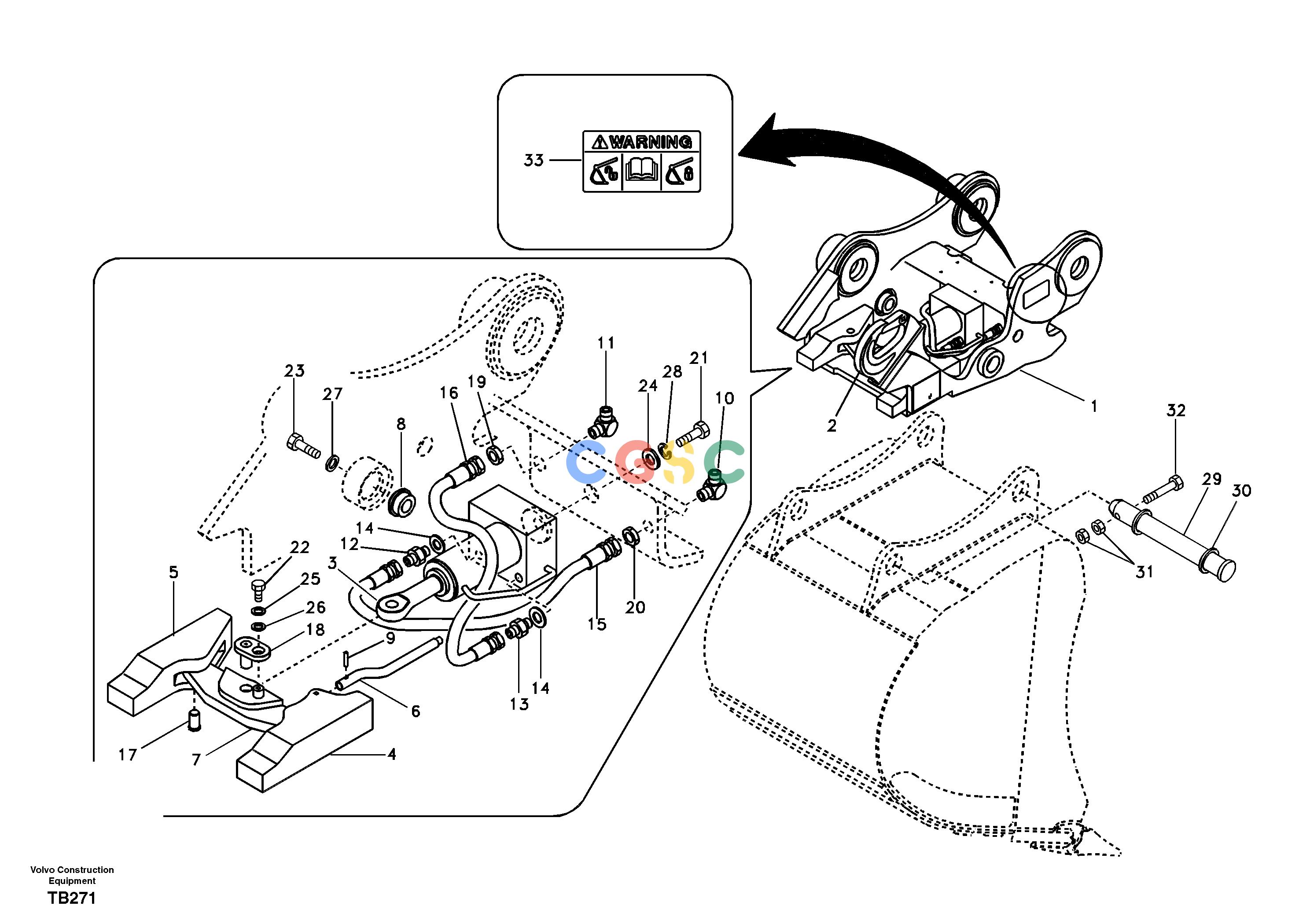

沃尔沃零件查询EC135B Attachment bracket, quickfitSER NO 20001-200798278014-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
583 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14529602
|
[1] |
Quick coupler
|
|
| |
VOE14529603
|
[1] |
Quick coupler
|
|
| 2. |
VOE14529539
|
[1] |
Hook
|
|
| |
VOE6210720
|
[1] |
Repair kit
|
|
| 3. |
VOE14522369
|
[1] |
Cylinder
|
|
| 4. |
SA1171-75240
|
[1] |
Key
|
LH
|
| 5. |
SA1171-75250
|
[1] |
Key
|
RH
|
| 6. |
SA1171-75261
|
[1] |
Stay
|
|
| 7. |
SA1171-75220
|
[1] |
Yoke
|
|
| 8. |
SA1171-75271
|
[2] |
Stopping device
|
|
| 9. |
VOE976510
|
[1] |
Spring pin
|
|
| 10. |
SA9411-95940
|
[1] |
Elbow
|
|
| 11. |
SA9411-95950
|
[1] |
Elbow
|
|
| 12. |
SA9412-12020
|
[1] |
Connector
|
|
| 13. |
SA9412-12120
|
[1] |
Connector
|
|
| 14. |
VOE907133
|
[2] |
Gasket
|
|
| 15. |
SA9459-05190
|
[1] |
Hose
|
|
| 16. |
SA9459-05200
|
[1] |
Hose
|
|
| 17. |
SA1171-75230
|
[2] |
Pin
|
|
| 18. |
SA1171-75350
|
[1] |
Pin
|
|
| 19. |
SA2043-00120
|
[1] |
Hexagon nut
|
|
| 20. |
VOE14717620
|
[1] |
Nut
|
|
| 21. |
VOE60110356
|
[1] |
Hexagon screw
|
|
| 22. |
VOE991633
|
[1] |
Hexagon screw
|
|
| 23. |
VOE14500572
|
[2] |
Bolt
|
|
| 24. |
SA1171-75380
|
[1] |
Washer
|
|
| 25. |
VOE993835
|
[1] |
Plain washer
|
|
| 26. |
VOE992040
|
[1] |
Plain washer
|
|
| 27. |
VOE60110299
|
[2] |
Washer
|
|
| 28. |
VOE955926
|
[1] |
Spring washer
|
|
| 29. |
VOE14547821
|
[2] |
Pin
|
|
| 30. |
VOE14881185
|
[4] |
Ring
|
|
| 31. |
VOE997410
|
[4] |
Hexagon nut
|
|
| 32. |
VOE983260
|
[2] |
Hexagon screw
|
|
| 33. |
|
[1] |
Decal
|
SER NO 20001-20041
|
