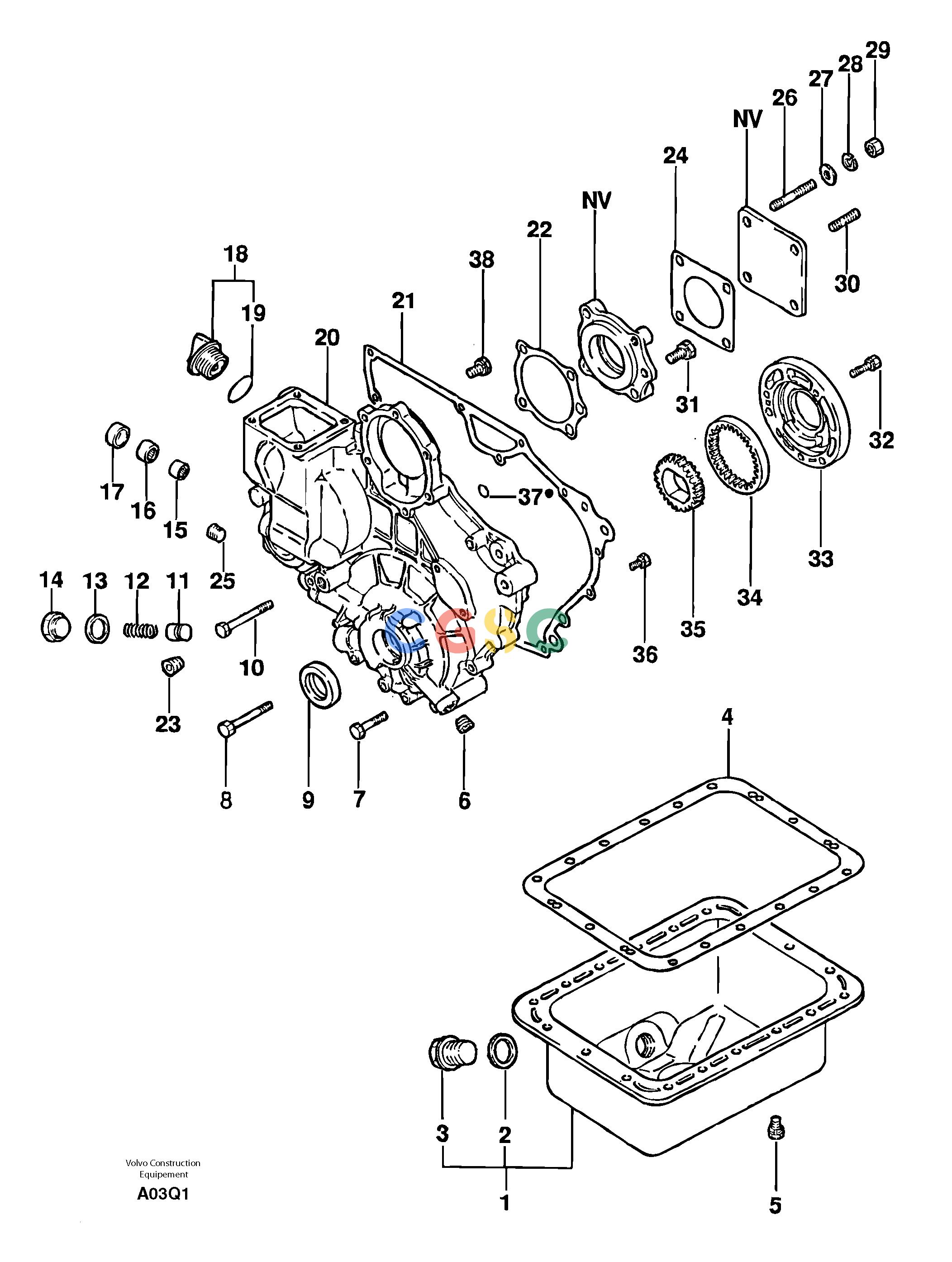

沃尔沃零件查询EC14 Timing gear casingTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
852 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7413163
|
[1] |
Oil pan
|
|
| 2. |
VOE11715851
|
[1] |
Seal
|
|
| 3. |
PJ7410041
|
[1] |
Plug
|
|
| 4. |
PJ7418431
|
[1] |
Seal
|
|
| 5. |
PJ7410100
|
[18] |
Screw
|
|
| 6. |
PJ7410408
|
[1] |
Plug
|
|
| 7. |
PJ7410592
|
[3] |
Screw
|
|
| 8. |
PJ7410593
|
[4] |
Screw
|
|
| 9. |
PJ7410580
|
[1] |
Seal
|
|
| 10. |
PJ7410594
|
[1] |
Screw
|
|
| 11. |
PJ7410047
|
[1] |
Plunger
|
|
| 12. |
PJ7410659
|
[1] |
Spring
|
|
| 13. |
VOE11715851
|
[1] |
Seal
|
|
| 14. |
PJ7410579
|
[1] |
Plug
|
|
| 15. |
PJ7410623
|
[1] |
Needle bearing
|
|
| 16. |
PJ7410624
|
[1] |
Needle bearing
|
|
| 17. |
PJ7410627
|
[1] |
Plug
|
|
| 18. |
VOE11716698
|
[1] |
Oil filler cap
|
|
| 19. |
PJ7410604
|
[1] |
O-ring
|
|
| 20. |
PJ7415741
|
[1] |
Oil Pan
|
|
| 21. |
PJ7418368
|
[1] |
Seal
|
|
| 22. |
PJ7410636
|
[1] |
Seal
|
|
| 23. |
PJ7410407
|
[1] |
Plug
|
|
| 24. |
PJ7410177
|
[1] |
Seal
|
|
| 25. |
PJ7410691
|
[1] |
Plug
|
|
| 26. |
PJ7410401
|
[3] |
Stud
|
|
| 27. |
PJ7410124
|
[4] |
Washer
|
|
| 28. |
PJ7410126
|
[4] |
Lock Washer
|
|
| 29. |
PJ7410117
|
[4] |
Nut
|
|
| 30. |
PJ7410115
|
[1] |
Stud
|
|
| 31. |
PJ7410102
|
[1] |
Screw
|
|
| 32. |
PJ7410506
|
[3] |
Screw
|
|
| 33. |
PJ7410671
|
[1] |
Oil pump housing
|
|
| 34. |
PJ7410582
|
[1] |
Crown Wheel
|
|
| 35. |
PJ7410581
|
[1] |
Pinion
|
|
| 36. |
PJ7410101
|
[4] |
Screw
|
|
| 37. |
PJ7410603
|
[2] |
O-ring
|
|
| 38. |
PJ7410097
|
[3] |
Screw
|
|
