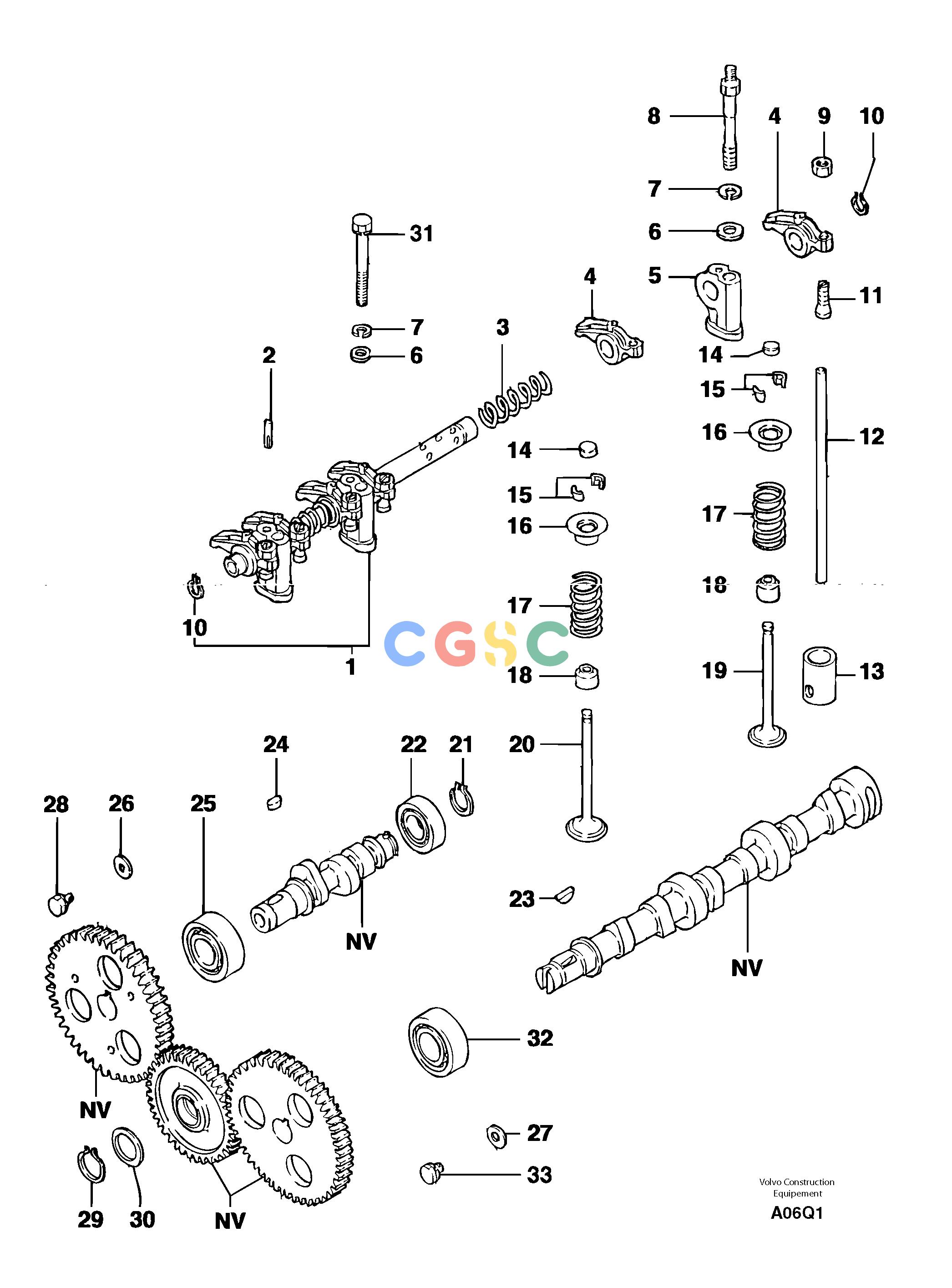

沃尔沃零件查询EC14 Timing gearsTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
495 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7412983
|
[1] |
Rocker Arm Shaft
|
|
| 2. |
PJ7410622
|
[1] |
Pin
|
|
| 3. |
PJ7410612
|
[2] |
Spring
|
|
| 4. |
VOE15043547
|
[6] |
Rocker arm
|
|
| 5. |
PJ7410613
|
[3] |
Support
|
|
| 6. |
PJ7410402
|
[3] |
Washer
|
|
| 7. |
PJ7410126
|
[3] |
Lock Washer
|
|
| 8. |
VOE15043549
|
[2] |
Bolt
|
|
| 9. |
PJ7410597
|
[6] |
Nut
|
|
| 10. |
PJ7410605
|
[2] |
Snap Ring
|
INCL IN 1
|
| 11. |
PJ7410658
|
[6] |
Screw
|
|
| 12. |
PJ7410656
|
[6] |
Rod
|
|
| 13. |
PJ7410651
|
[6] |
Tappet
|
|
| 14. |
PJ7414924
|
[6] |
Cap
|
|
| 15. |
PJ7410056
|
[12] |
Stop
|
|
| 16. |
PJ7410655
|
[6] |
Washer
|
|
| 17. |
PJ7410638
|
[6] |
Spring
|
|
| 18. |
PJ7410057
|
[6] |
Seal
|
|
| 19. |
PJ7410621
|
[3] |
Exhaust Valve
|
|
| 20. |
PJ7410620
|
[3] |
Inlet valve
|
|
| 21. |
PJ7410606
|
[1] |
Snap Ring
|
|
| 22. |
PJ7410618
|
[1] |
Ball bearing
|
|
| 23. |
PJ7410602
|
[1] |
Key
|
|
| 24. |
PJ7410131
|
[1] |
Key
|
|
| 25. |
PJ7410617
|
[1] |
Ball bearing
|
|
| 26. |
PJ7410629
|
[1] |
Washer
|
|
| 27. |
PJ7410629
|
[1] |
Washer
|
|
| 28. |
PJ7410100
|
[1] |
Screw
|
|
| 29. |
PJ7415178
|
[1] |
Snap Ring
|
|
| 30. |
PJ7415183
|
[1] |
Washer
|
|
| 31. |
PJ7410093
|
[1] |
Screw
|
|
| 32. |
PJ7410617
|
[1] |
Ball bearing
|
|
| 33. |
PJ7410100
|
[1] |
Screw
|
|
