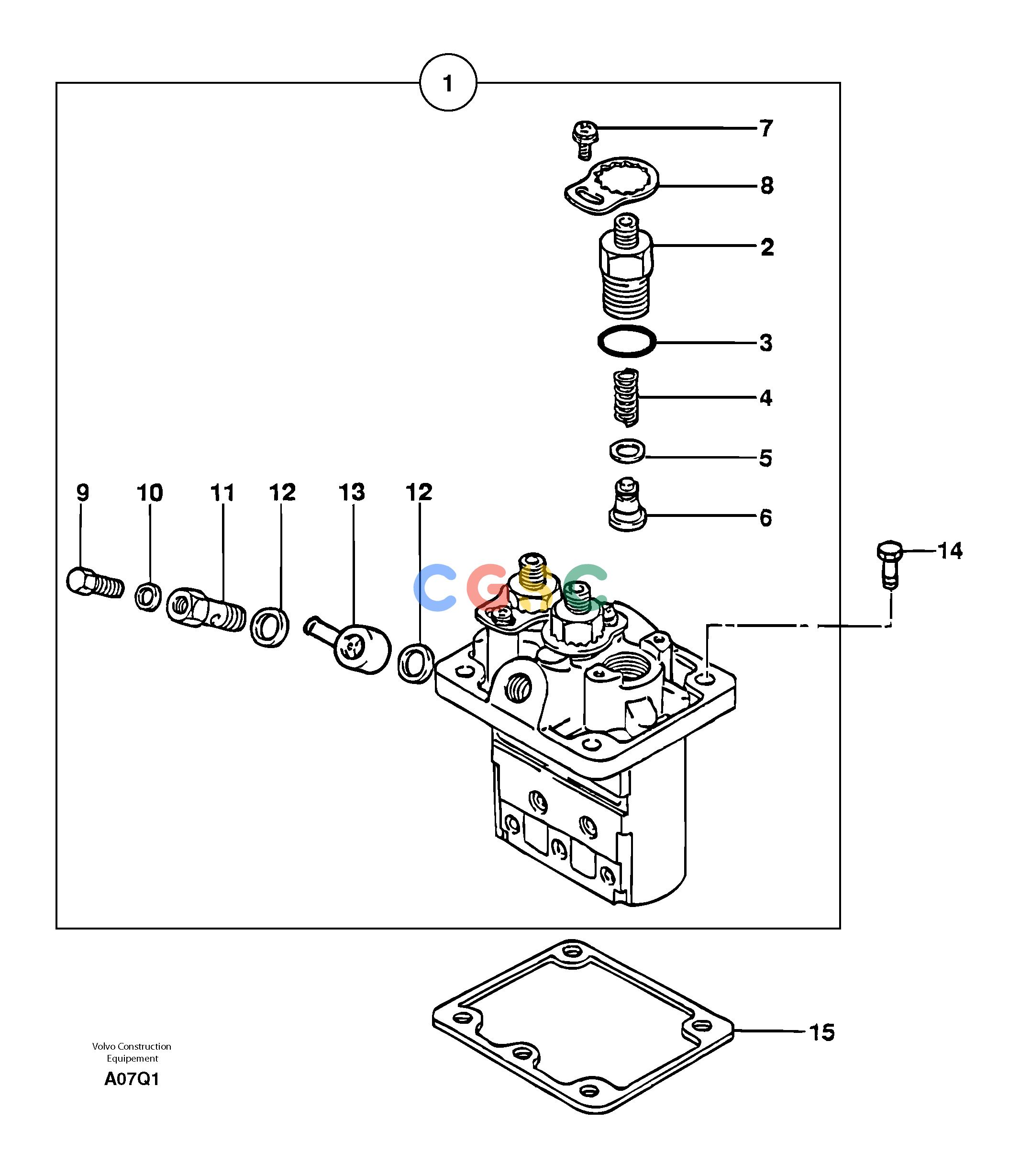

沃尔沃零件查询EC14 Injection pumpTYPE 246, 271246.21501-271.10151NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7413168
|
[1] |
Injection Pump
|
|
| 2. |
PJ7410881
|
[3] |
Nipple
|
|
| 3. |
PJ7410878
|
[3] |
O-ring
|
|
| 4. |
PJ7410880
|
[3] |
Spring
|
|
| 5. |
PJ7412098
|
[3] |
Seal
|
|
| 6. |
PJ7412928
|
[3] |
Reed Valve
|
|
| 7. |
PJ7413159
|
[3] |
Screw
|
|
| 8. |
PJ7410813
|
[3] |
Retaining plate
|
|
| 9. |
PJ7410810
|
[1] |
Screw
|
|
| 10. |
PJ7410808
|
[1] |
Washer
|
|
| 11. |
PJ7410811
|
[1] |
Hollow Screw
|
|
| 12. |
PJ7410809
|
[2] |
Seal
|
|
| 13. |
PJ7413158
|
[1] |
Nipple
|
|
| 14. |
PJ7410725
|
[4] |
Screw
|
|
| 15. |
PJ7412909
|
[REQ] |
Shim
|
THICK = 0,2mm/0,0079in
|
| 15. |
PJ7412910
|
[REQ] |
Shim
|
THICK = 0,3mm/0,0118in
|
| 15. |
PJ7412915
|
[REQ] |
Shim
|
THICK = 0,4mm/0,0157in
|
| 15. |
PJ7412911
|
[REQ] |
Shim
|
THICK = 0,5mm/0,0197in
|
| 15. |
PJ7412916
|
[REQ] |
Shim
|
THICK = 0,6mm/0,0236in
|
| 15. |
PJ7412917
|
[REQ] |
Shim
|
THICK = 0,7mm/0,0276in
|
| 15. |
PJ7412918
|
[REQ] |
Shim
|
THICK = 0,8mm/0,0315in
|
| 15. |
PJ7412919
|
[REQ] |
Shim
|
THICK = 0,9mm/0,0354in
|
| 15. |
PJ7412920
|
[REQ] |
Shim
|
THICK = 1,0mm/0,0394in
|
