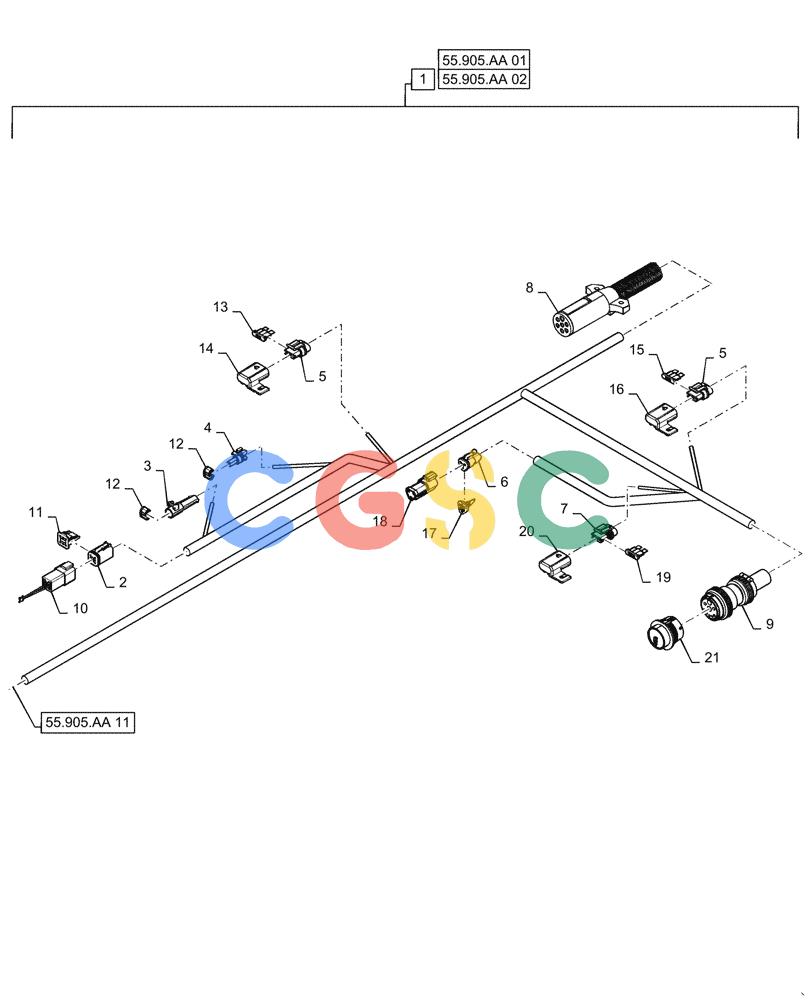

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (55.905.AA[12]) - VAR - 726967, 726969 - WIRE HARNESS, ISOBUS, YFN188618 AND PRIOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
214 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47462454
|
[1] |
WIRE HARNESS
|
NH
ISOBUS, YFN188618 AND PRIOR Superseded by part number: 47938509
|
| 2. |
87694112
|
[1] |
ELEC CONNECTOR,Female, 6 Pole
|
NH
Lighting Control Superseded by part number: 225351C1
|
| 3. |
87697527
|
[1] |
ELEC CONNECTOR,Male, 1 Pole
|
RAC
Brake Lights Override
|
| 4. |
87697528
|
[1] |
ELEC CONNECTOR,Female, 1 Pole
|
RAC
Brake Lights Override
|
| 5. |
87693710
|
[1] |
ELEC CONNECTOR,Female 2 Cavities
|
BN
Fuse, Fuel System
|
| 6. |
87695580
|
[1] |
ELEC CONNECTOR,Female, 3 Pole
|
BN
Resistor, CAN Termination
|
| 7. |
47618629
|
[1] |
Fuse, Power
|
ELEC CONNECTOR,Female, 2 Cavities
|
| 8. |
84137504
|
[1] |
MULTIPOLE CONNECTOR,Female, 7 Pole
|
PA
Baler to Tractor Superseded by part number: 121646C1
|
| 9. |
87703855
|
[1] |
MULTIPOLE CONNECTOR,Female, 9 Cavities
|
SAS
Baler to Tractor
|
| 10. |
87694150
|
[1] |
LOCKING TAB,Wedge Lock
|
NH
|
| 11. |
87537164
|
[1] |
WIRE HARNESS
|
PA
ANZ Light Jumper
|
| 12. |
87704919
|
[1] |
LOCKING TAB,Wedge Lock
|
RAC
|
| 13. |
83933689
|
[1] |
FUSE,10A, Red
|
ZED
Superseded by part number: 9811773
|
| 14. |
87688863
|
[1] |
CAP
|
BN
|
| 15. |
87717080
|
[1] |
FUSE,15A, Blue
|
COE
Superseded by part number: 84090658
|
| 17. |
84147090
|
[1] |
LOCKING TAB,Wedge Lock
|
CUR
|
| 18. |
84058092
|
[1] |
CONTACT HOUSING,120 Ohm Resistor
|
ZED
|
| 19. |
83932926
|
[1] |
FUSE,25A
|
ZED
Superseded by part number: 84100299
|
| 21. |
788614
|
[1] |
PROTECTING COVER
|
NH
|
