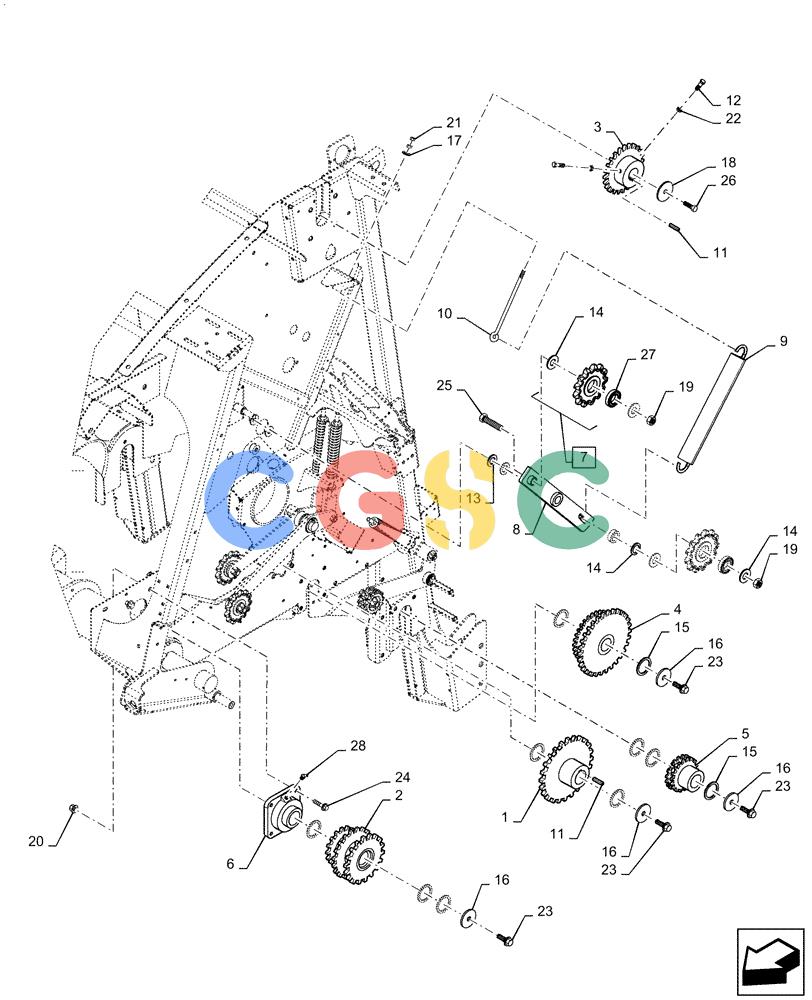

| 1. |
84280322
|
[1] |
SPROCKET,RC80, 25T
|
PLO
25T, RC80
|
| 2. |
84406459
|
[1] |
SPROCKET
|
PLO
13T / 18T, RC80
|
| 3. |
86637269
|
[1] |
DRIVEN SPROCKET,RC80, 22T
|
NH
22T, RC80
|
| 4. |
84594720
|
[1] |
SPROCKET,27T Internal, 16T/16T/25T External
|
NH
16T, RC60 / 25T, RC80
|
| 5. |
84594180
|
[1] |
SPROCKET,27T Internal, 17T/17T External
|
NH
17T, RC60, Double
|
| 6. |
86609558
|
[1] |
BEARING ASSY,45mm ID
|
NH
|
| 7. |
84401598
|
[2] |
SPROCKET,39.967mm ID x 118.4mm OD x 14.61mm Thk
|
GI
13T, RC80, Incl 27 Superseded by part number: 87011880
|
| 8. |
84262617
|
[1] |
ARM
|
NH
Idler, Incl 29, Serial Range: -YFN188618 Superseded by part number: 47748078
|
| 8. |
47748078
|
[1] |
ARM
|
NH
Idler, Incl 29 , Start Serial: YFN188619
|
| 9. |
86512547
|
[1] |
SPRING,Extension, 1.94" OD x 13 - 1/8" L
|
NH
|
| 10. |
183356
|
[1] |
EYEBOLT,3/8" - 16 x 10" L
|
NH
|
| 11. |
87483
|
[2] |
KEY,0.31" x 1.5" L
|
NH
|
| 12. |
86542824
|
[2] |
SET SCREW,Sq Hd, 3/8" - 16 x 1-1/2"
|
NH
|
| 13. |
26402
|
[2] |
WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk
|
NH
|
| 14. |
80299
|
[4] |
WASHER,0.69" ID x 1.75" OD x 0.13" Thk
|
NH
|
| 15. |
58821
|
[1] |
WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk
|
NH
|
| 16. |
694478
|
[4] |
WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk
|
NH
|
| 17. |
80702
|
[1] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 18. |
86624647
|
[1] |
WASHER,10.8mm ID x 57mm OD x 6.1mm Thk
|
NH
|
| 19. |
86000441
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 20. |
9804279
|
[4] |
FLANGE NUT,Hex, M12, Cl 8
|
NH
Superseded by part number: 86512497
|
| 21. |
9628503
|
[2] |
NUT,3/8"-16, G5
|
NH
|
| 22. |
86509499
|
[2] |
JAM NUT,3/8"-16, G2
|
ZED
|
| 23. |
9670066
|
[4] |
FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8
|
NH
|
| 24. |
9671487
|
[4] |
BOLT,Hex, M12 x 50mm, Cl 8.8
|
PA
|
| 25. |
120092
|
[1] |
BOLT,M16 x 70mm, Cl 8.8
|
NH
|
| 26. |
9804262
|
[1] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 27. |
66553
|
[2] |
BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W
|
NH
|
| 28. |
80717
|
[1] |
LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg
|
NH
|
| 29. |
84019797
|
[1] |
SLEEVE,25mm ID x 28mm OD x 25mm L
|
NH
Superseded by part number: 604085
|
