纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (48.110.AA[01]) - SUSPENSION - NARROW New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
172 次

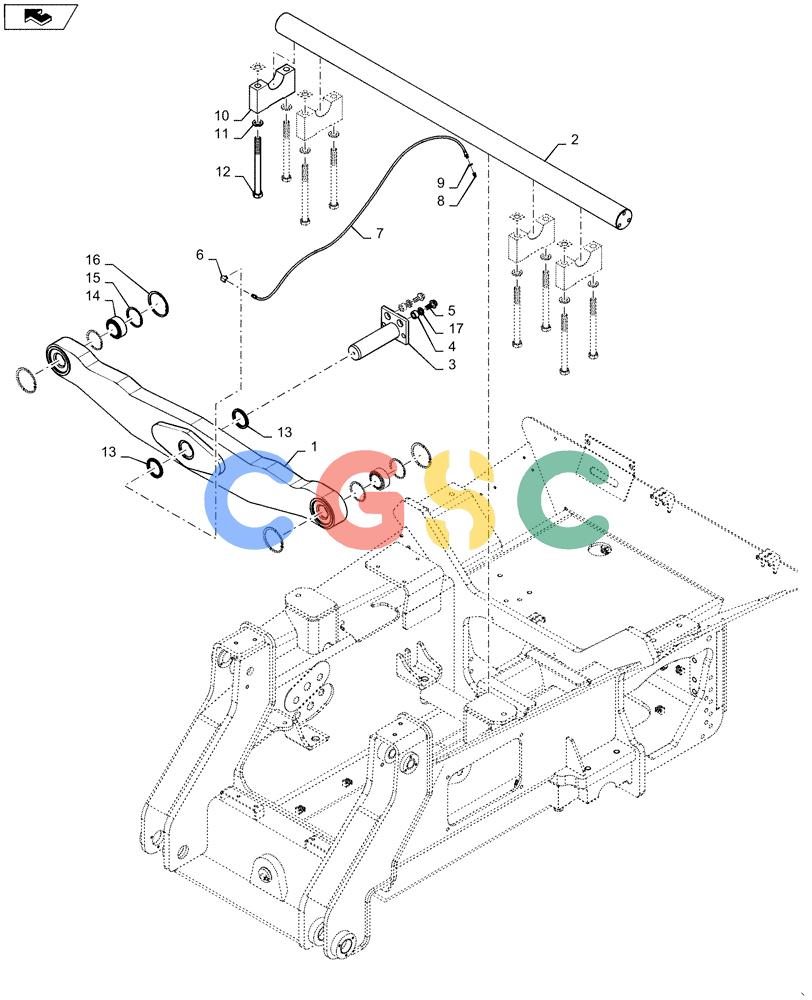

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47465223 | [1] | BEAM | BUREqualizer, 72 Gauge Superseded by part number: 47705877 |
| 2. | 84558551 | [1] | SHAFT | BURPivot, 72 Guage |
| 3. | 84301353 | [1] | SPECIAL PIN | BURCenter |
| 4. | 87652972 | [2] | BUSHING | BURLift Link |
| 5. | 87563127 | [2] | BOLT,Hex, M20 x 50mm, Cl 10.9 | BHBFlange, M20 x 50 Full, 10.9 |
| 6. | 217-1014 | [1] | ELBOW,90º, 1/8"-27 Female x 1/8"-27 Male | CAS Superseded by part number: 217-20 |
| 7. | 84588575 | [1] | HOSE ASSY.,4mm ID x 1430mm L, SAE 100R7 | BURHydraulic, Grease |
| 8. | 219-8 | [1] | LUBE NIPPLE,1/4"-28 x 1/2" | CASFitting Superseded by part number: 87414 |
| 9. | 76085536 | [1] | NUT,1/8-27 NPSM | LEC1/8-27 Npsm, Bank Lube Hose Superseded by part number: 700713413 |
| 10. | 47564120 | [4] | CLAMP | BURPivot Shaft, Lower |
| 11. | 87016610 | [8] | WASHER,25.8mm ID x 44.5mm OD x 5mm Thk | RAC |
| 12. | 47568002 | [8] | BOLT,Hex, M24 x 290mm, Cl 10.9 | BUR |
| 13. | 87344647 | [2] | SEALING RING | ZED; Incl 1 Superseded by part number: 139059C1 |
| 14. | 87381270 | [2] | SPHERICAL BEARING,60mm ID x 90mm OD x 44mm W | BURRadial Spherical; Incl 1 |
| 15. | 11062476 | [4] | SNAP RING,M90, Int | TTFRetaining; Incl 1 Superseded by part number: |
| 16. | 11075676 | [4] | SNAP RING,M115, Int | MKTRetaining; Incl 1 |
| 17. | 87655047 | [2] | SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm, HTS, BORON | BUR |
