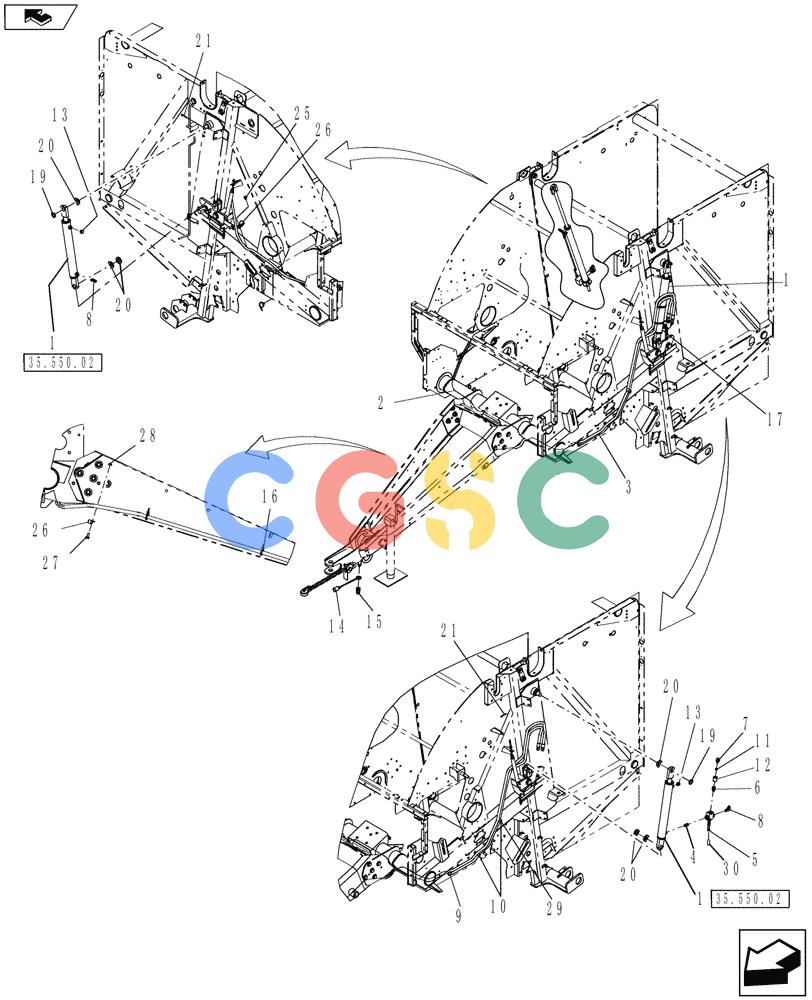

| 1. |
87517395
|
[2] |
HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 373.38mm Stroke
|
PA
Tailgate Lift
|
| 2. |
84307406
|
[1] |
HYDRAULIC HOSE
|
NH
RH, 165"
|
| 3. |
84534710
|
[1] |
HYDRAULIC HOSE
|
NH
LH
|
| 4. |
9846669
|
[1] |
HYD CONNECTOR,9/16" - 18 Male x 9/16" - 18 Male
|
NH
Includes: Ref. 22
|
| 5. |
84606149
|
[1] |
VALVE WITH LEVER
|
NH
Shutoff
|
| 6. |
259619
|
[1] |
HYD CONNECTOR,3/4" - 16 ORB x 3/4" - 16 ORB
|
WIN
Superseded by part number: 87412765
|
| 7. |
81827427
|
[1] |
HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB
|
A
Includes: Ref. 23 Superseded by part number: 86301S36
|
| 8. |
76344
|
[2] |
90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB
|
NH
Includes: Ref. 22
|
| 9. |
593508
|
[1] |
GROMMET
|
GI
|
| 10. |
578070
|
[2] |
CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type
|
NH
|
| 11. |
87584428
|
[1] |
ORIFICE
|
NH
|
| 12. |
86635143
|
[1] |
COUPLING,3/4" - 16, 1-9/64" L
|
NH
|
| 13. |
87564420
|
[2] |
BREATHER
|
NH
|
| 14. |
86621124
|
[1] |
DUST CAP
|
NH
|
| 15. |
9801618
|
[1] |
QUICK MALE COUPLING,1/2" - 14
|
NH
Superseded by part number: 9412
|
| 16. |
84292754
|
[2] |
CLIP,Cable Tie W/ Fir Tree, 5mm OD x 203mm OAL
|
NH
|
| 17. |
529070
|
[2] |
CABLE TIE,368.3mm L
|
NH
CABLE STRAP
|
| 18. |
87034173
|
[3] |
CABLE TIE,774.7mm L
|
PA
CABLE STRAP Superseded by part number: 529070
|
| 19. |
26402
|
[2] |
WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk
|
NH
|
| 20. |
87367
|
[6] |
WASHER,1.06" ID x 2" OD x 0.13" Thk
|
PA
|
| 21. |
87399
|
[2] |
COTTER PIN,1/2 x 3 Bolt
|
GI
|
| 22. |
9617873
|
[1] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
NH
|
| 23. |
128825
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
NH
|
| 25. |
677808
|
[2] |
SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"
|
NH
HWH, 1/4"-20 x 5/8"
|
| 26. |
9706748
|
[3] |
CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type
|
NH
|
| 27. |
9804258
|
[1] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 28. |
9804277
|
[1] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 29. |
86545825
|
[1] |
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"
|
NH
Superseded by part number: 570821
|
| 30. |
47576842
|
[1] |
HANDLE GRIP
|
NH
|
