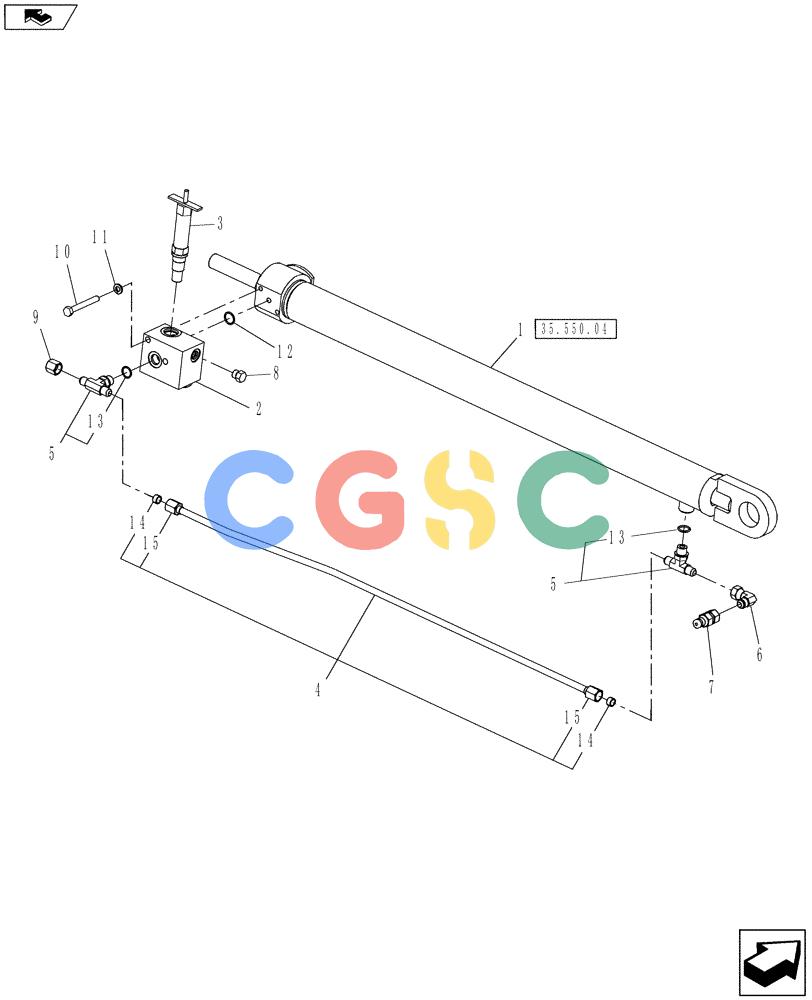

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (35.550.03) - HYDRAULIC BALE TENSION Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
505 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84246781
|
[1] |
HYDRAULIC CYLINDER,Double Acting, 25.4mm Rod, 686mm Stroke
|
NH
Bale Tension
|
| 2. |
87028083
|
[1] |
EXCHANGE VALVE PLATE
|
PA
Bale Tension Superseded by part number: 47583126
|
| 3. |
86520938
|
[1] |
VALVE PRESSURE RELIE
|
NH
|
| 4. |
86605282
|
[1] |
TUBE,0.375" OD x 28.83", 4.18" L
|
NH
|
| 5. |
163335
|
[2] |
TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC
|
BEL
Includes: Ref. 13
|
| 6. |
86629586
|
[1] |
90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw
|
NH
|
| 7. |
101792A1
|
[1] |
COUPLING
|
CAS
|
| 8. |
76349
|
[1] |
PLUG,9/16" - 18 ORB
|
NH
Includes: Ref. 13
|
| 9. |
574342
|
[1] |
CAP,9/16" - 18 JIC
|
LEC
|
| 10. |
88346
|
[2] |
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
|
BEL
|
| 11. |
80681
|
[2] |
LOCK NUT,5/16"
|
NH
Superseded by part number: 83990583
|
| 12. |
128359
|
[1] |
O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro
|
MOD
|
| 13. |
9617873
|
[3] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
NH
|
| 14. |
235670
|
[2] |
SLEEVE,37 Degree, 3/8" Tube
|
BEL
|
| 15. |
136658
|
[2] |
TUBE NUT,0.72" Length
|
BEL
|
