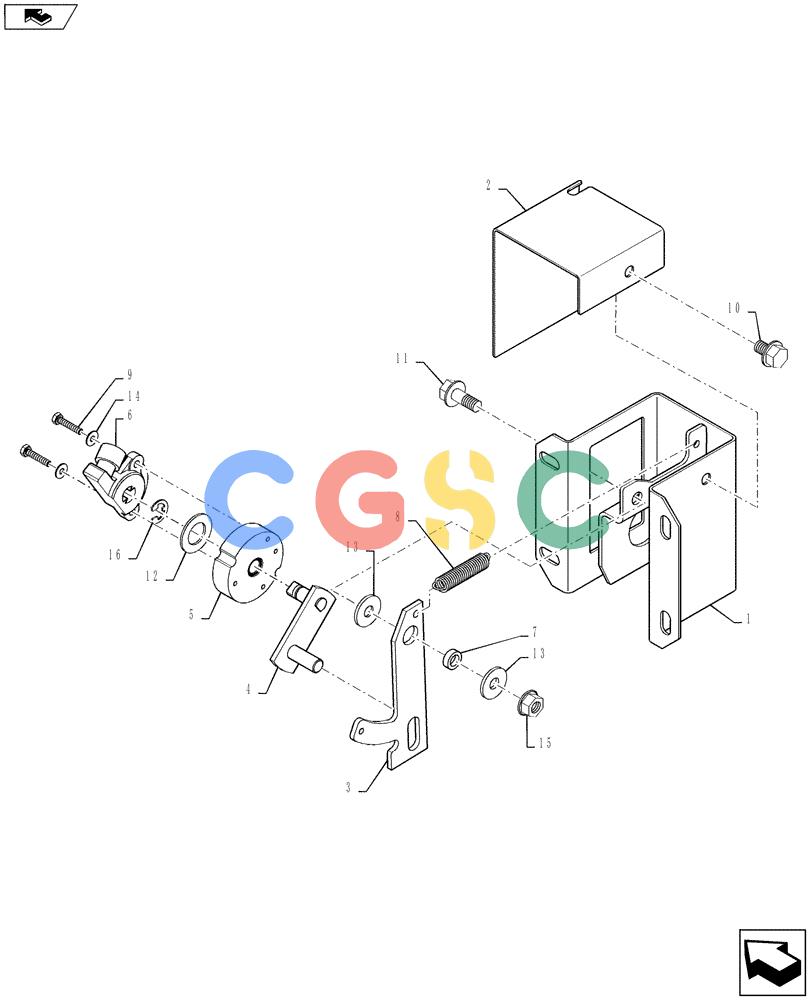

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (55.628.02) - SENSOR - ASSY, NET WRAP Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
367 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84231880
|
[1] |
COVER
|
NH
|
| 2. |
84231881
|
[1] |
PROTECTION PLATE
|
NH
|
| 3. |
86637391
|
[1] |
ARM
|
NH
|
| 4. |
86619565
|
[1] |
SUPPORT
|
NH
|
| 5. |
87362420
|
[1] |
MOUNT
|
PA
|
| 6. |
86977396
|
[1] |
POTENTIOMETER,3000 Ohm, 16 VDC
|
PA
|
| 7. |
177822
|
[1] |
SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk
|
NH
|
| 8. |
217465
|
[1] |
SPRING
|
NH
|
| 9. |
412255
|
[2] |
BOLT,Hex, M4 x 20mm, Cl 8.8
|
NH
|
| 10. |
86512520
|
[1] |
BOLT,Hvy Hex, M8 x 12mm, Cl 8.8, Full Thd
|
WIN
|
| 11. |
9804258
|
[1] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 12. |
86613601
|
[1] |
WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk
|
NH
Urethane
|
| 13. |
80664
|
[2] |
WASHER,0.38" ID x 0.88" OD x 0.08" Thk
|
NH
|
| 14. |
9672521
|
[2] |
LOCK WASHER,Ext Tooth, #10
|
WIN
|
| 15. |
9804277
|
[1] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 16. |
86000439
|
[1] |
SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External
|
NH
|
