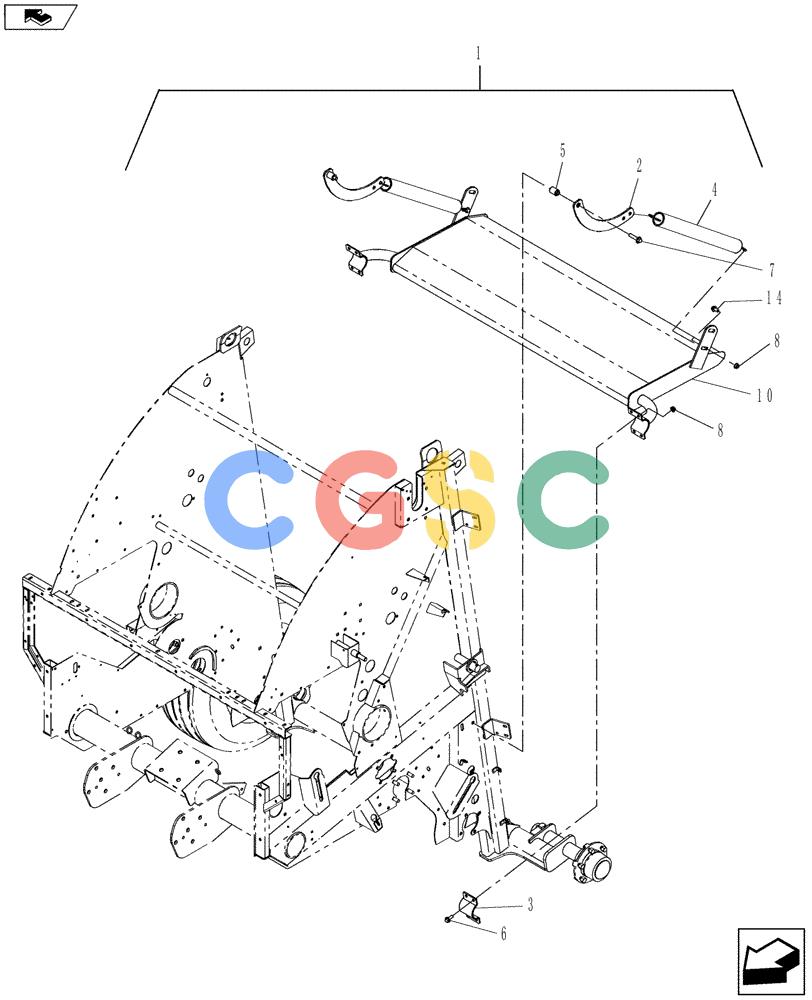

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (88.070.01) - DIA KIT, BALE KICKER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
213 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84227916
|
[1] |
DIA KIT, HARVESTER
|
NH
Bale Ramp, Includes: Installation Instructions
|
| 2. |
84245053
|
[2] |
LINK
|
NH
|
| 3. |
84258675
|
[2] |
MOUNT
|
NH
|
| 4. |
86514028
|
[2] |
SPRING
|
NH
|
| 5. |
84262009
|
[2] |
SPACER
|
NH
|
| 6. |
9804261
|
[8] |
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 7. |
9804270
|
[2] |
BOLT,Hex, M12 x 60mm, Cl 8.8
|
NH
|
| 8. |
43435
|
[10] |
FLANGE NUT,Hex, M10 x 1.5
|
WIN
|
| 9. |
84134383
|
[1] |
INSTRUCTION
|
NH
Bale Ramp Kit
|
| 10. |
84258674
|
[1] |
EJECTOR
|
NH
Bale
|
