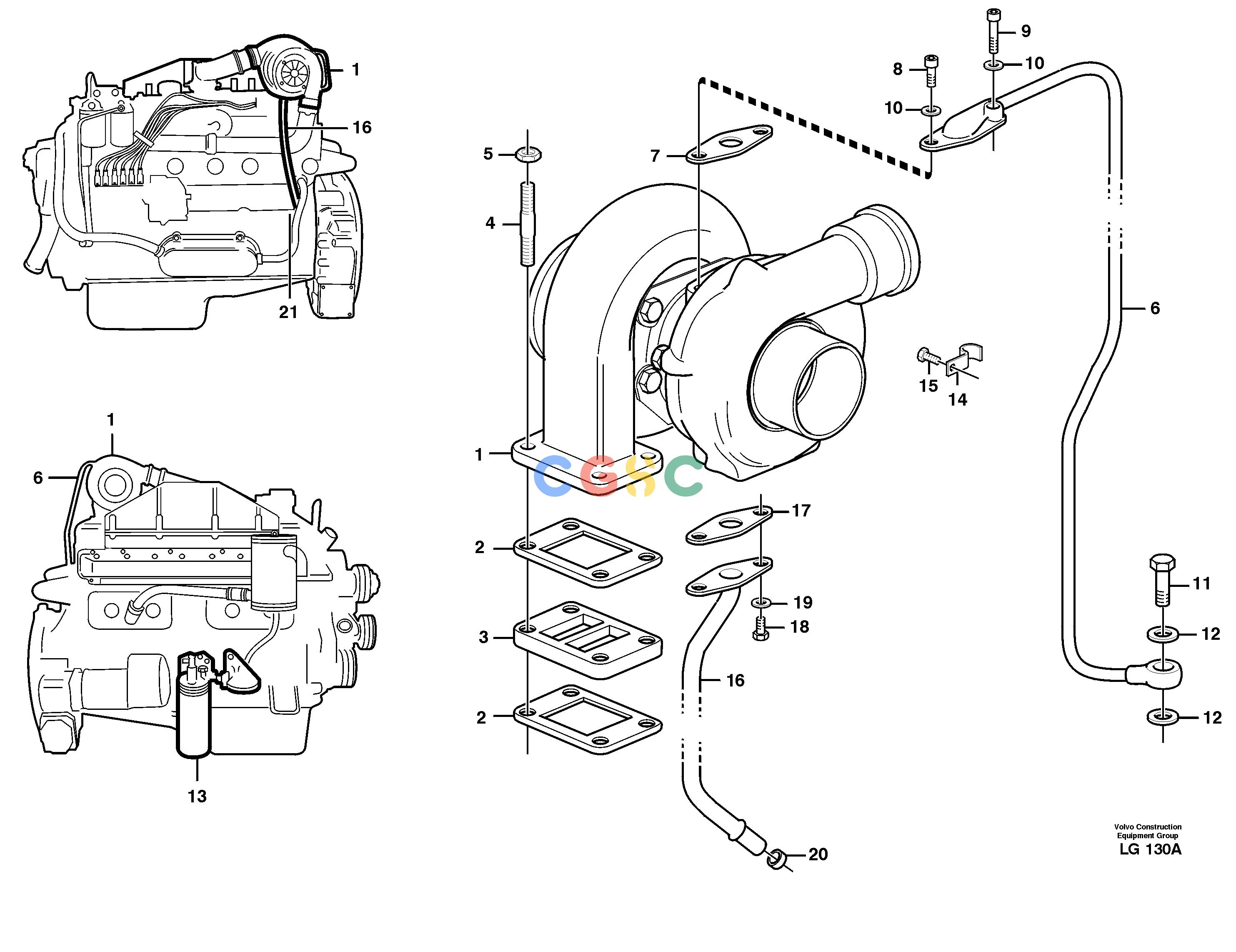

沃尔沃零件查询EC200 Turbocharger with fitting partsSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
857 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11032959
|
[1] |
Turbocharger
|
TD 63 KHE
|
| 2. |
VOE420618
|
[2] |
Gasket
|
|
| 3. |
VOE847384
|
[1] |
Spacer plate
|
|
| 4. |
VOE13977298
|
[4] |
Stud
|
|
| 5. |
VOE1543499
|
[4] |
Flange nut
|
|
| 6. |
VOE866166
|
[1] |
Tube
|
|
| 7. |
VOE420641
|
[1] |
Gasket
|
|
| 8. |
VOE13945444
|
[1] |
Screw
|
(945444)
|
| 9. |
VOE60113082
|
[1] |
Flange screw
|
|
| 10. |
VOE13941907
|
[2] |
Washer
|
|
| 11. |
VOE941686
|
[1] |
Hollow screw
|
|
| 12. |
VOE13947622
|
[2] |
Plane gasket
|
|
| 13. |
|
[1] |
Oil filter
|
|
| 14. |
VOE13946834
|
[1] |
Clamp
|
|
| 15. |
VOE947107
|
[1] |
Flange screw
|
|
| 16. |
VOE862044
|
[1] |
Return pipe
|
|
| 17. |
VOE420643
|
[1] |
Gasket
|
|
| 18. |
VOE13945444
|
[2] |
Screw
|
|
| 19. |
VOE13955894
|
[1] |
Washer
|
|
| 20. |
VOE471626
|
[1] |
Sealing ring
|
|
| 21. |
|
[1] |
Cylinder block
|
|
