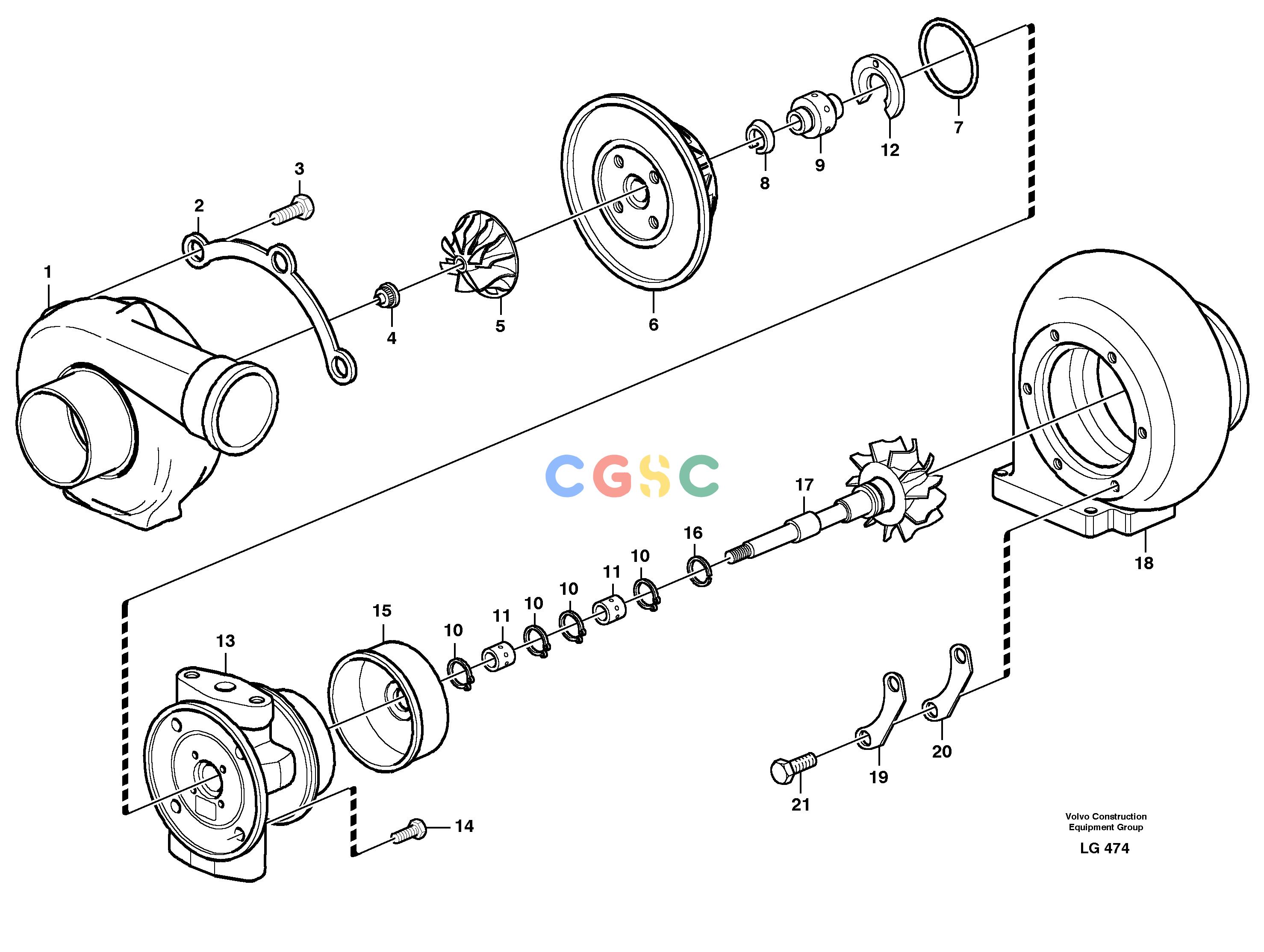

沃尔沃零件查询EC200 Turbo chargerSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
686 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
|
[1] |
Turbocharger
|
|
| 1. |
|
[1] |
Compressor housing
|
|
| 2. |
VOE1697143
|
[2] |
Clamp
|
|
| 3. |
VOE273714
|
[6] |
Repair kit
|
|
| 4. |
VOE6212671
|
[1] |
Nut
|
|
| 5. |
VOE1697146
|
[1] |
Compressor wheel
|
|
| |
VOE1697154
|
[1] |
Rotor unit
|
|
| 6. |
VOE1697150
|
[1] |
Cover
|
|
| 7. |
VOE466478
|
[1] |
Sealing ring
|
|
| 8. |
VOE466476
|
[1] |
Piston ring
|
|
| 9. |
VOE466475
|
[1] |
Sleeve
|
|
| 10. |
VOE466470
|
[4] |
Snap ring
|
|
| 11. |
VOE1697152
|
[2] |
Bearing
|
|
| 12. |
VOE274122
|
[1] |
Repair kit
|
|
| 13. |
VOE1697153
|
[1] |
Bearing housing
|
|
| 14. |
VOE1697149
|
[4] |
Screw
|
|
| 15. |
VOE1697148
|
[1] |
Cover
|
|
| 16. |
VOE6212285
|
[1] |
Piston ring
|
|
| 17. |
VOE11702479
|
[1] |
Shaft
|
|
| |
|
[1] |
Shaft
|
|
| 18. |
|
[1] |
Turbine housing
|
|
| 19. |
VOE466486
|
[3] |
Striker plate
|
|
| 20. |
VOE466484
|
[3] |
Clamp
|
|
| 21. |
VOE940113
|
[6] |
Hexagon screw
|
|
| |
VOE274122
|
[0001] |
Repair kit
|
|
