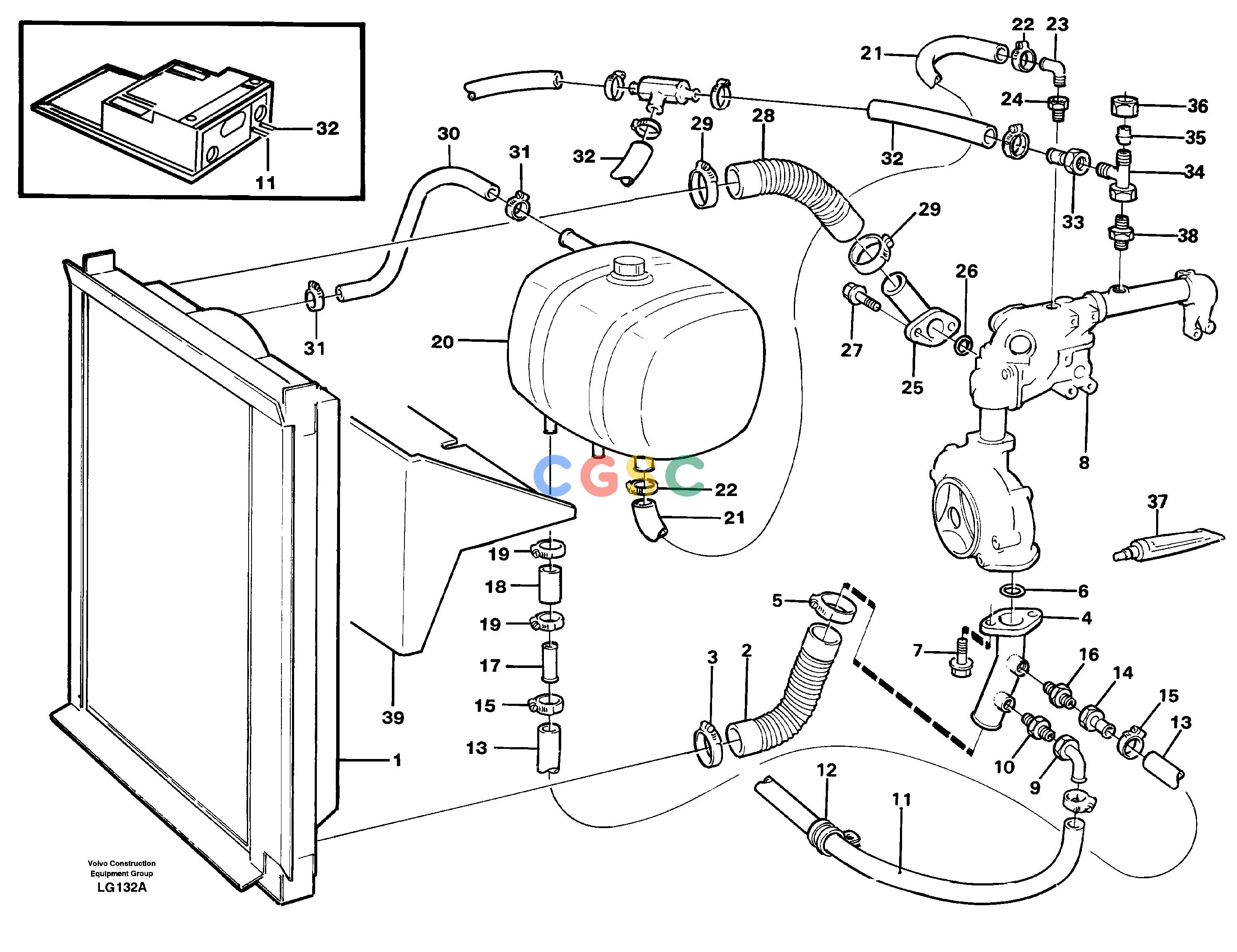

沃尔沃零件查询EC200 Cooling systemSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
149 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Radiator
|
|
| 2. |
VOE14215321
|
[1] |
Radiator hose
|
|
| 3. |
VOE943478
|
[1] |
Hose clamp
|
(14013957)
|
| 4. |
VOE848143
|
[1] |
Water pipe
|
|
| 5. |
VOE943478
|
[1] |
Hose clamp
|
(14013957)
|
| 6. |
VOE977015
|
[1] |
O-ring
|
|
| 7. |
VOE13945444
|
[2] |
Screw
|
|
| 8. |
|
[1] |
Water pump
|
|
| 9. |
VOE14239791
|
[1] |
Tube Assembly
|
|
| |
VOE956971
|
[1] |
Ferrule
|
(14012366)
|
| |
VOE14012452
|
[1] |
Nut
|
|
| 10. |
VOE14012422
|
[1] |
Fitting
|
|
| 11. |
VOE14014148
|
[1] |
Oil hose
|
|
| 12. |
VOE952635
|
[1] |
Clamp
|
(14013857)
|
| 13. |
VOE943368
|
[1] |
Hose
|
|
| 14. |
VOE14242256
|
[1] |
Hose connection
|
|
| |
VOE956971
|
[1] |
Ferrule
|
|
| |
VOE956971
|
[1] |
Ferrule
|
(14012452)
|
| 15. |
VOE13943472
|
[2] |
Hose clamp
|
(14013948)
|
| 16. |
VOE14012422
|
[1] |
Fitting
|
|
| 17. |
VOE14264923
|
[1] |
Hose connection
|
|
| 18. |
VOE944386
|
[1] |
Hose
|
|
| 19. |
VOE13943472
|
[2] |
Hose clamp
|
(14013948)
|
| 20. |
|
[1] |
Expansion tank
|
|
| 21. |
VOE943366
|
[1] |
Hose
|
|
| 22. |
VOE943470
|
[2] |
Hose clamp
|
(14013952)
|
| 23. |
VOE479953
|
[1] |
Nipple
|
|
| 24. |
VOE862109
|
[1] |
Nipple
|
|
| 25. |
VOE848381
|
[1] |
Water pipe
|
|
| 26. |
VOE977015
|
[1] |
O-ring
|
|
| 27. |
VOE13945444
|
[2] |
Screw
|
|
| 28. |
VOE4821434
|
[1] |
Radiator hose
|
|
| 29. |
VOE943478
|
[2] |
Hose clamp
|
|
| 30. |
VOE943366
|
[1] |
Hose
|
(14245653)
|
| 31. |
VOE943470
|
[2] |
Hose clamp
|
|
| 32. |
|
[1] |
Hose
|
|
| 33. |
VOE14242256
|
[1] |
Hose connection
|
|
| |
VOE956971
|
[1] |
Ferrule
|
|
| |
VOE956971
|
[1] |
Ferrule
|
(14012452)
|
| 34. |
VOE14012384
|
[1] |
Fitting
|
|
| |
VOE14213279
|
[1] |
O-ring
|
|
| 35. |
VOE13964090
|
[1] |
Closure
|
|
| 36. |
VOE14012452
|
[1] |
Nut
|
|
| 37. |
VOE14213786
|
[1] |
Sealant
|
|
| 38. |
VOE14012422
|
[1] |
Fitting
|
|
| 39. |
VOE14238097
|
[1] |
Hose retainer
|
|
