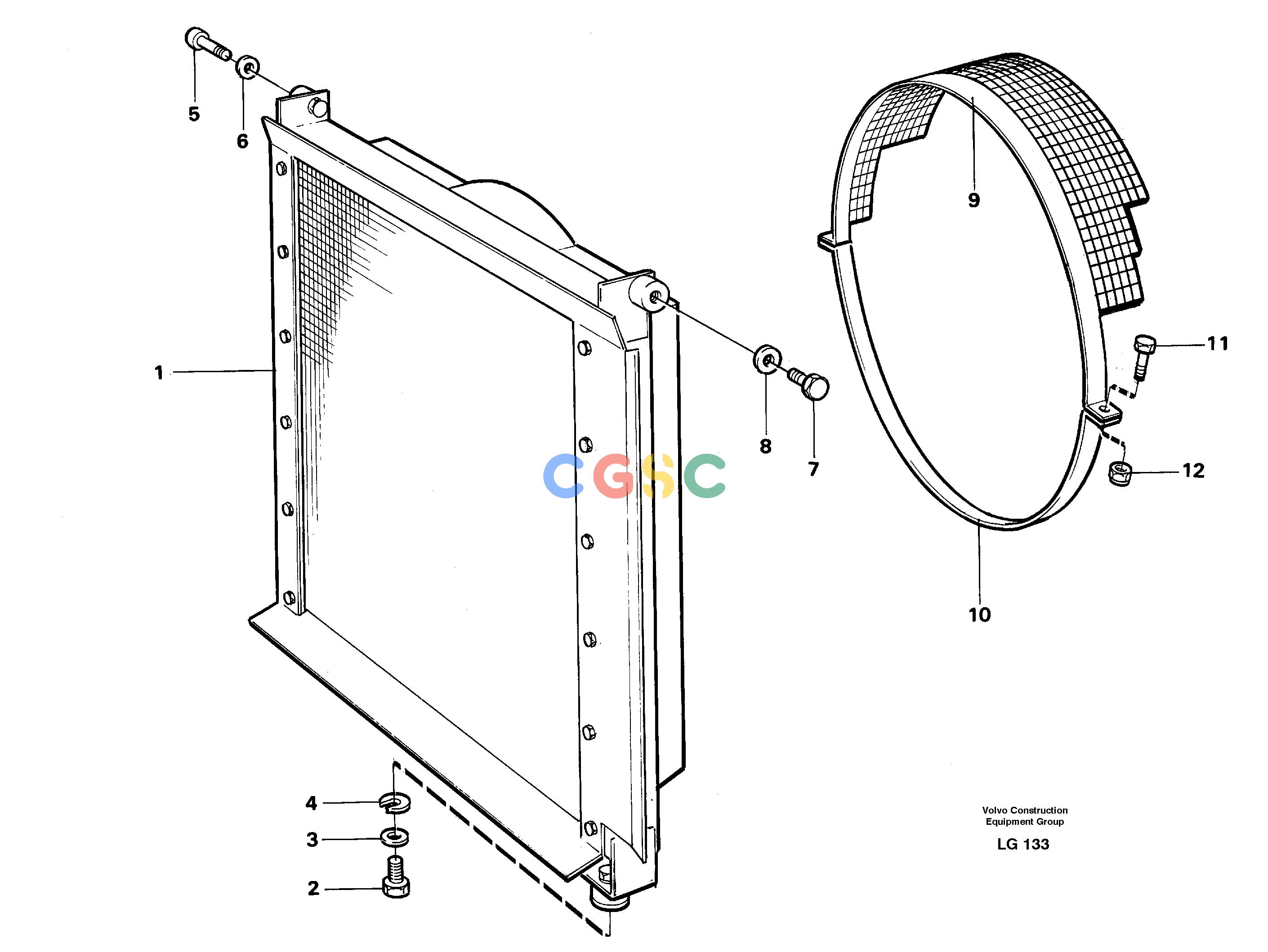

沃尔沃零件查询EC200 Radiator with fitting partsSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
683 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Radiator
|
|
| 2. |
VOE13970967
|
[2] |
Hexagon screw
|
|
| 3. |
VOE13930908
|
[2] |
Washer
|
|
| 4. |
VOE14254799
|
[REQ] |
Adjusting washer
|
|
| 5. |
VOE14023268
|
[1] |
Screw
|
|
| 6. |
VOE13930908
|
[1] |
Washer
|
|
| 7. |
VOE13970967
|
[1] |
Hexagon screw
|
|
| 8. |
VOE13930908
|
[1] |
Washer
|
|
| 9. |
VOE14255403
|
[1] |
Fan Protector
|
|
| 10. |
VOE14255404
|
[1] |
Fan ring
|
|
| 11. |
VOE60111867
|
[2] |
Hexagon screw
|
(14014591)
|
| 12. |
VOE13963105
|
[2] |
Lock nut
|
(14023228)
|
