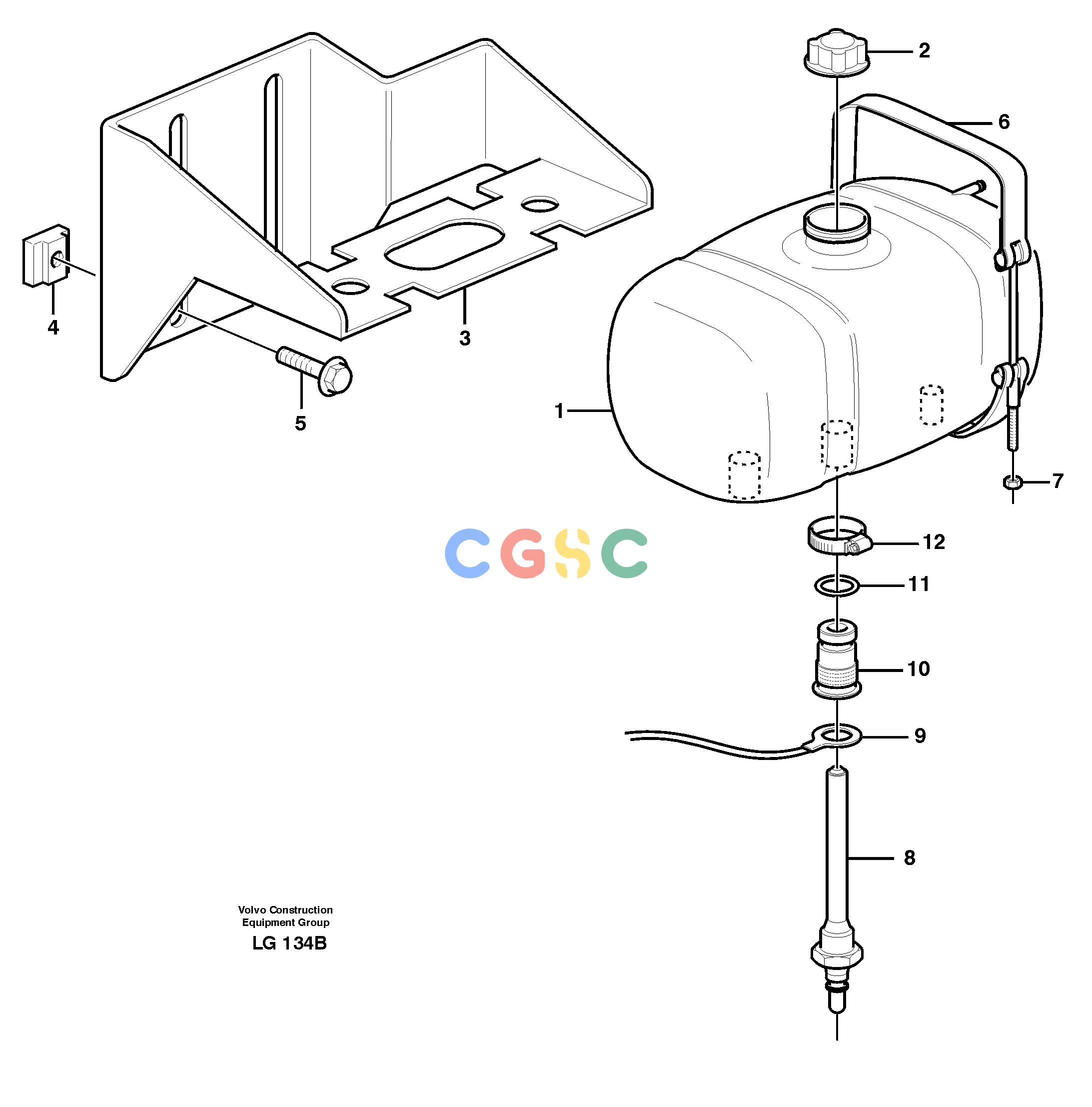

沃尔沃零件查询EC200 Expansion tank with fitting partsSER NO 2760- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
502 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11110208
|
[1] |
Expansion tank
|
|
| 2. |
VOE1542591
|
[1] |
Cap
|
|
| 3. |
VOE14264551
|
[1] |
Bracket
|
|
| 4. |
VOE13971089
|
[2] |
Lock nut
|
|
| 5. |
VOE14264567
|
[2] |
Bolt
|
|
| 6. |
VOE4804563
|
[2] |
Tensioning band
|
|
| 7. |
VOE13963104
|
[2] |
Lock nut
|
|
| 8. |
VOE11702408
|
[1] |
Level indicator
|
|
| 9. |
VOE14257801
|
[1] |
Ground connection
|
|
| 10. |
VOE11031743
|
[1] |
Nipple
|
|
| 11. |
VOE925056
|
[1] |
O-ring
|
|
| 12. |
VOE13943472
|
[1] |
Hose clamp
|
|
