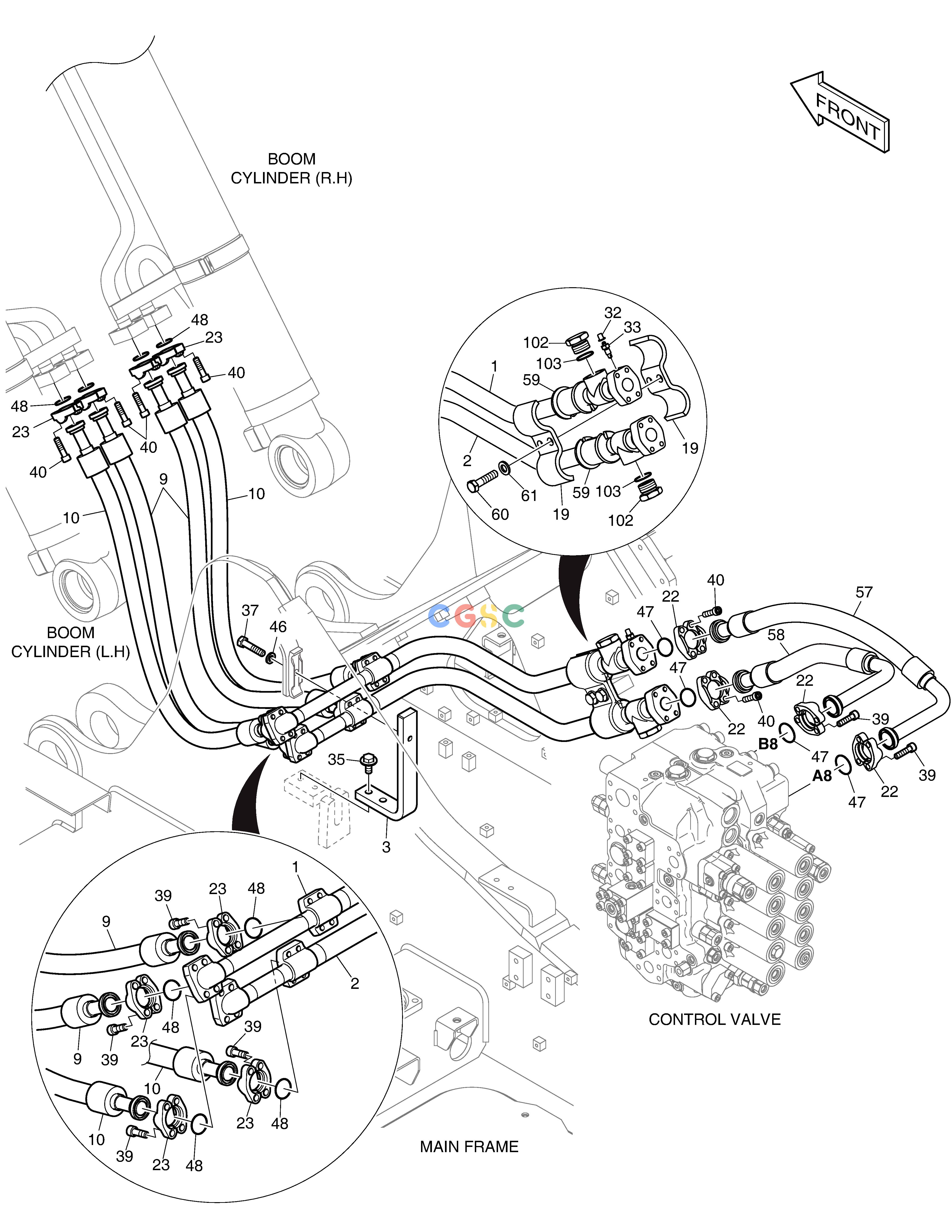

斗山零件查询MAIN PIPING(2) - BOOM DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
824 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09194
|
[-] |
|
|
| 1. |
420207-04121
|
[1] |
|
|
| 10. |
DS2038144
|
[2] |
HOSE
|
|
| 102. |
2181-1950D9
|
[2] |
PLUG
|
|
| 103. |
S8000291
|
[2] |
O-RING
|
|
| 19. |
120208-00410
|
[2] |
|
|
| 2. |
420207-04122
|
[1] |
|
|
| 22. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 23. |
2181-9079
|
[16] |
FLANGE
|
|
| 3. |
110406-03245
|
[1] |
|
|
| 32. |
110910-00038A
|
[1] |
CAP
|
|
| 33. |
120705-00105
|
[1] |
|
|
| 35. |
DS0025025
|
[2] |
BOLT
|
|
| 37. |
S0561066
|
[1] |
BOLT
|
|
| 39. |
S2212266
|
[24] |
BOLT
|
|
| 40. |
S2212466
|
[24] |
BOLT
|
|
| 46. |
120804-00077
|
[1] |
WASHER
|
|
| 47. |
DS2856003
|
[4] |
O-RING
|
|
| 48. |
DS2856002
|
[8] |
O-RING
|
|
| 57. |
DS20401550
|
[1] |
|
|
| 58. |
DS20401549
|
[1] |
|
|
| 59. |
180308-00235
|
[2] |
|
|
| 60. |
S0563166
|
[2] |
BOLT M14X2.0X60
|
|
| 61. |
120804-00080
|
[2] |
WASHER
|
|
| 9. |
DS2038222
|
[2] |
HOSE
|
|
