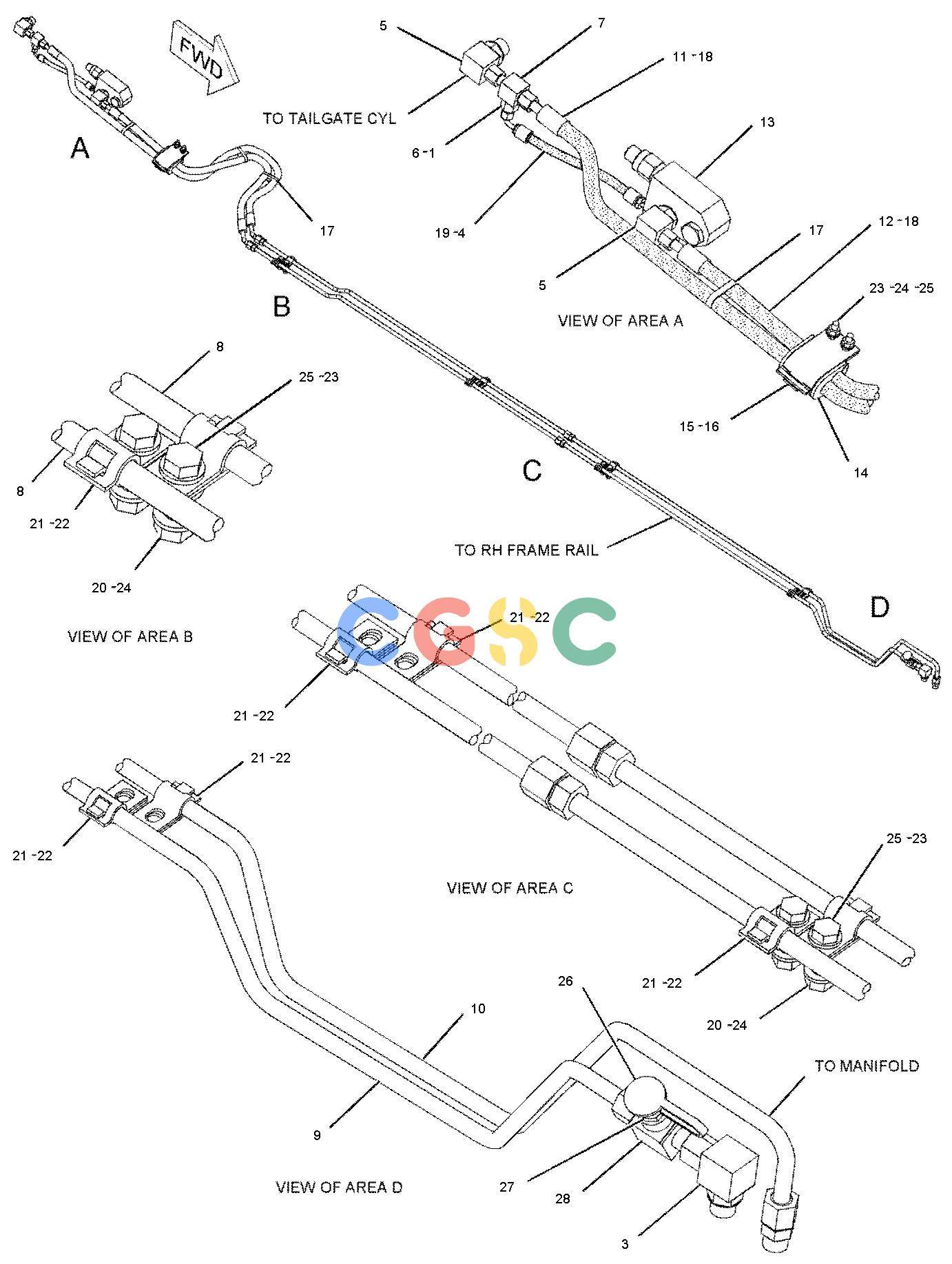

卡特零件查询（725） 171-7584: LINES GP-TAILGATE
广数供应链运营团队, 14 02月, 2025，浏览：
972 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9X-6582 | [1] | NUT(13/16-16-THD) | |
| 2. | 148-8340 | [1] | CONNECTOR AS | |
| | 6V-8639 | [1] | CONNECTOR | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 3. | 148-8364 | [1] | ELBOW AS | |
| | 6V-8625 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 4. | 148-8368 | [1] | ELBOW AS | |
| | 6V-8627 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 5. | 148-8381 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 8T-5429 | [1] | ELBOW | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 6. | 148-8419 | [1] | REDUCER AS | |
| | 6V-8935 | [1] | REDUCER | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 7. | 148-8444 | [1] | TEE AS-SWIVEL | |
| | 6V-9837 | [1] | TEE-SWIVEL | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| 8. | 160-6160 | [2] | TUBE AS | |
| 9. | 224-4285 | [1] | TUBE AS | |
| 10. | 176-5628 | [1] | TUBE AS | |
| 11. | 124-4112I | [1] | HOSE AS | |
| 12. | 124-4113I | [1] | HOSE AS | |
| 13. | 133-8810Y | [1] | VALVE GP-COUNTERBALANCE | |
| 14. | 3G-8047 | [1] | GROMMET | |
| 15. | 3G-8054 | [1] | CLIP(TAB) | |
| 16. | 3G-8057 | [1] | CLIP(SLOT) | |
| 17. | 6U-0455 | [4] | STRAP | |
| 18. | 6V-8398 | [4] | SEAL-O-RING | |
| 19. | 7U-3368I | [1] | HOSE AS | |
| 20. | 7X-0575 | [2] | WASHER-HARD(10.2X22.5X5-MM THK) | |
| 21. | 8T-1885 | [8] | CLIP(SLOT) | |
| 22. | 8T-1886 | [8] | CLIP(TAB) | |
| 23. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 24. | 8T-4133M | [6] | NUT(M10X1.5-THD) | |
| 25. | 8T-4186M | [6] | BOLT(M10X1.5X40-MM) | |
| 26. | 6V-0852 | [1] | CAP-DUST | |
| 27. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 28. | 164-5586 | [1] | TEE AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 7X-0871 | [1] | TEE | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
