纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (3.434[03]) - HYDRAULIC SYSTEM PIPING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
580 次

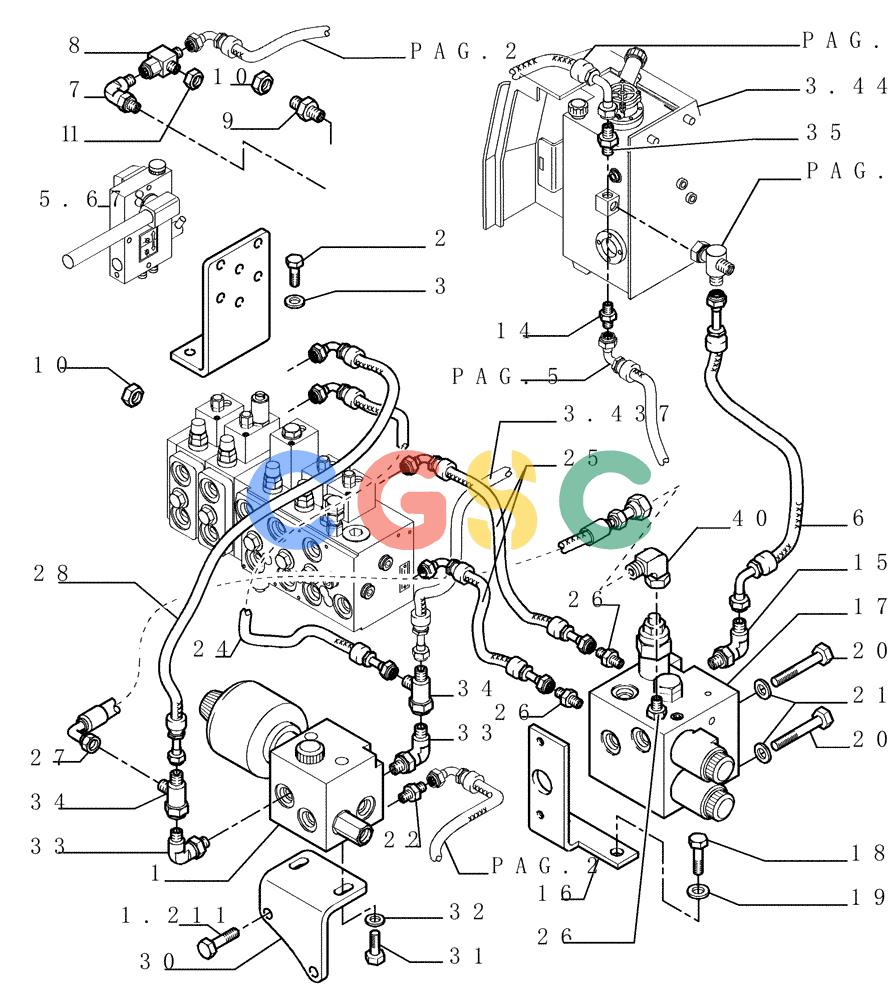

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76073165 | [1] | HYDRAULIC VALVE | LEC- CHECK POINT "DSD" ASSY SEE PAG. 7 |
| 2. | 11114131 | [2] | BOLT,Hex, M12 x 95, 10.9 | LEC |
| 3. | 14496731 | [2] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 4. | 76076683 | [1] | SUPPORT | TOR Superseded by part number: 76078177 |
| 5. | 11106231 | [3] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 6. | 76076766 | [1] | FLEXIBLE HOSE | LEC- EXHAUST |
| 7. | 79053561 | [1] | ELBOW | LEC |
| 8. | 71313708 | [1] | TEE | LECT 3/4" Superseded by part number: 86511870 |
| 9. | 71444084 | [1] | HYD CONNECTOR | LECM14-7/16" Superseded by part number: 71444083 |
| 10. | 79054460 | [2] | PLUG | LEC |
| 11. | 10118540 | [1] | PLUG,M10 x 1 x 11, Brass | LEC |
| 12. | 79066986 | [1] | TEE | LEC |
| 14. | 79066943 | [1] | ELBOW | LEC16 |
| 15. | 79067021 | [1] | HYD CONNECTOR | LEC |
| 16. | 76075446 | [1] | BRACKET | TOR |
| 17. | 76069705 | [1] | HYDRAULIC VALVE | LEC- ELECTROVALVE ASSY SEE PAG. 8 Superseded by part number: 47480858 |
| 18. | 14420231 | [2] | HEX SOC SCREW,M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC |
| 19. | 14496631 | [2] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 20. | 16038540 | [2] | BOLT,Hex, M6 x 100mm, Brass | LEC |
| 21. | 14496431 | [2] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 22. | 79095838 | [1] | HYD CONNECTOR | LEC1/4G. 9/16"-18 |
| 24. | 76075474 | [1] | FLEXIBLE HOSE | LEC |
| 25. | 76075469 | [2] | FLEXIBLE HOSE | LEC |
| 26. | 79066938 | [2] | FITTING | LEC10 |
| 27. | 76075471 | [1] | FLEXIBLE HOSE | LEC |
| 28. | 76075473 | [1] | FLEXIBLE HOSE | LEC |
| 30. | 76075171 | [1] | PLATE | LEC |
| 31. | 16043331 | [2] | SCREW,Hex, M8 x 1.25 x 18mm, Cl 10.9, Full Thd | LEC |
| 32. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 33. | 79066302 | [2] | ELBOW | LEC |
| 34. | 79054269 | [2] | TEE | LEC |
| 35. | 79066942 | [1] | HYD CONNECTOR | LEC |
| 40. | 79054283 | [1] | HYD CONNECTOR | LEC- A 90° |
