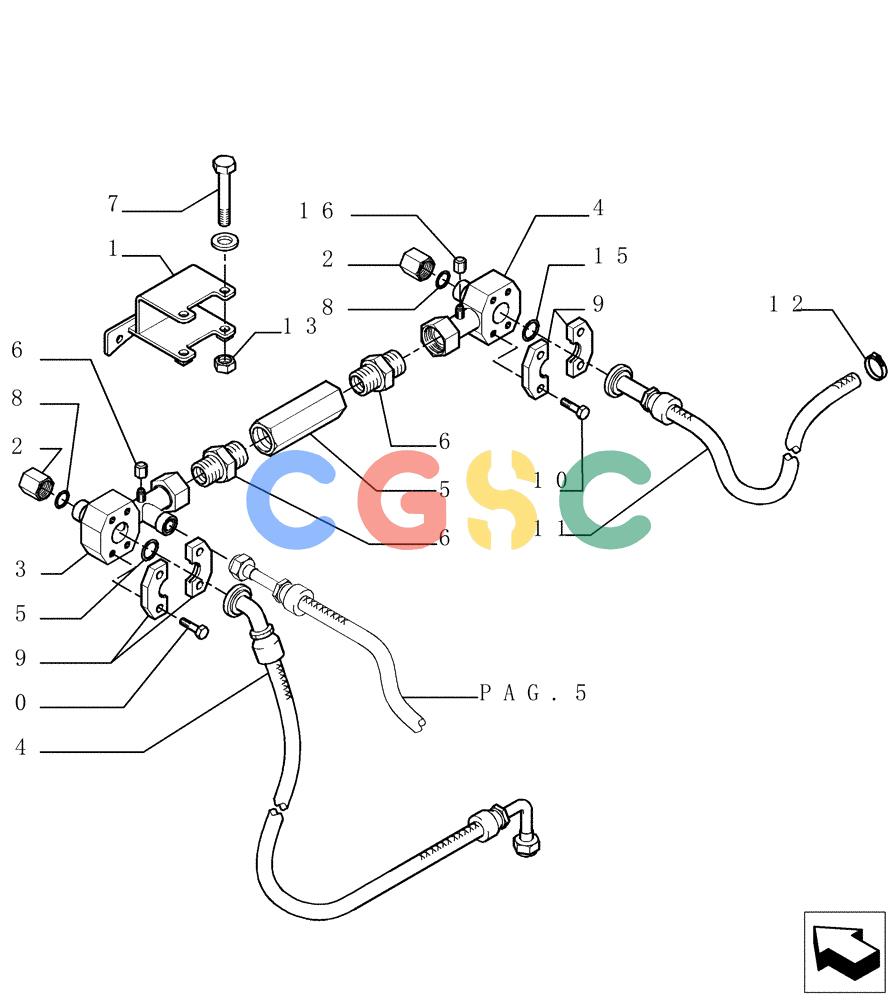

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (3.434[04]) - HYDRAULIC SYSTEM PIPING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
912 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76075065 | [1] | SUPPORT | LEC |
| 2. | 78100137 | [2] | PLUG | LEC20 |
| 3. | 76075018 | [1] | FLEXIBLE HOSE | LEC- LEFT |
| 4. | 76075036 | [1] | FLEXIBLE HOSE | LEC- RIGHT |
| 5. | 76040628 | [1] | CHECK VALVE | LEC- 5 BAR |
| 6. | 76053698 | [2] | HYD CONNECTOR | LEC |
| 7. | 11108031 | [2] | BOLT,Hex, M10 x 90mm, Cl 10.9 | LEC Superseded by part number: 86508620 |
| 8. | 14453580 | [2] | O-RING,10.77mm ID x 2.62" Width | LEC Superseded by part number: 17278581 |
| 9. | 79093684 | [4] | HALF-FLANGE | LEC1 1/4" Superseded by part number: A12301 |
| 10. | 14420331 | [8] | HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd | LEC |
| 11. | 76089155 | [1] | FLEXIBLE HOSE | LEC |
| 12. | 79083845 | [1] | HOSE CLAMP,32mm - 50mm, Worm Gear | LEC32-50 Superseded by part number: 71404506 |
| 13. | 11701721 | [2] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 14. | 76089152 | [1] | FLEXIBLE HOSE | LEC- RETURN |
| 15. | 14464080 | [2] | O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro | LEC |
| 16. | 79054460 | [2] | PLUG | LEC6 |
