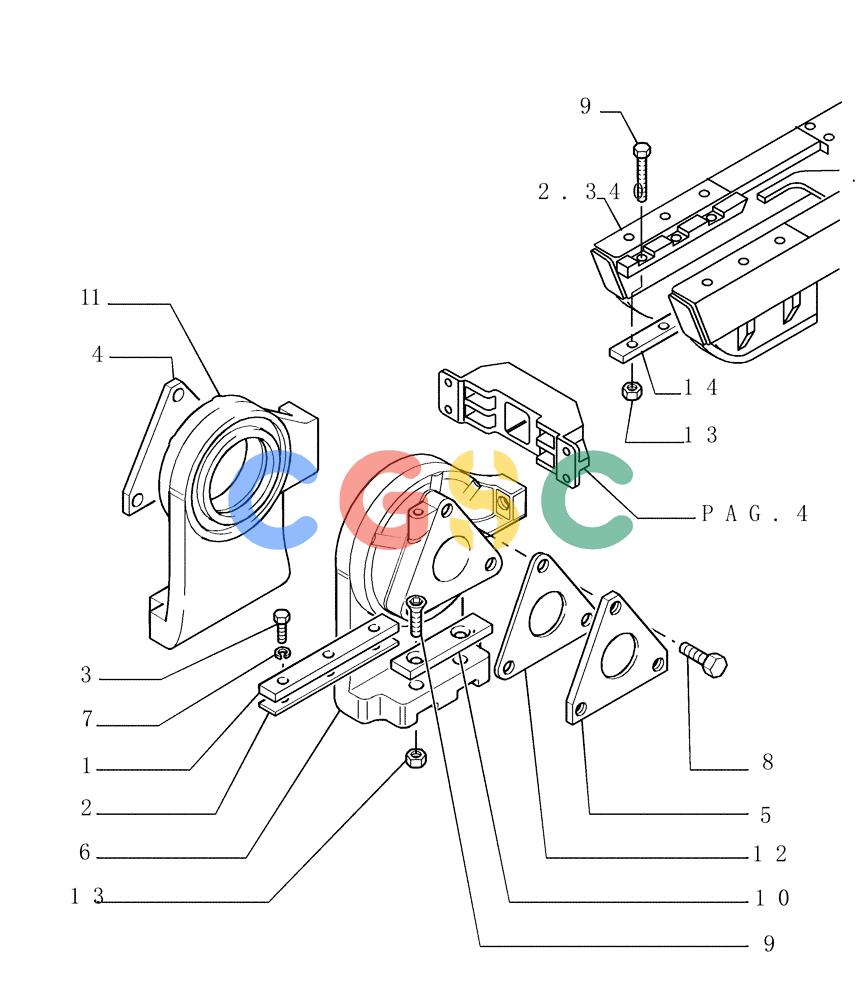

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (2.346[02]) - TRACK IDLER - SUPPORT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
958 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76049950 | [4] | GUIDE | LEC |
| 2. | 76049949 | [1] | SHIM | LEC |
| 3. | 587089 | [12] | SCREW,Hex, M16 x 1.5 x 35mm, Cl 8.8 | LEC |
| 4. | 76089208 | [2] | PLATE | LEC- INNER Superseded by part number: 4991076 |
| 5. | 76089209 | [2] | PLATE | LEC- OUTER Superseded by part number: 4991077 |
| 6. | 76031494 | [2] | TRACK ROD END ASSY | LEC- LEFT |
| 7. | 12605979 | [12] | LOCK WASHER,Serr, M16 | LEC |
| 8. | 14257831 | [12] | BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9 | BHB Superseded by part number: 14257834 |
| 9. | 79031906 | [20] | SCREW | LEC |
| 10. | 79032032 | [4] | SLIDING PAD | LEC |
| 11. | 76031495 | [2] | TRACK ROD END ASSY | LEC- RIGHT ASSY |
| 12. | 4991078 | [1] | SHIM,0.5mm Thk | LEC Superseded by part number: 79111717 |
| 13. | 16105021 | [20] | LOCK NUT,M12 x 1.25, Cl 10 | TTF |
| 14. | 79031909 | [4] | SHIM | LEC |
