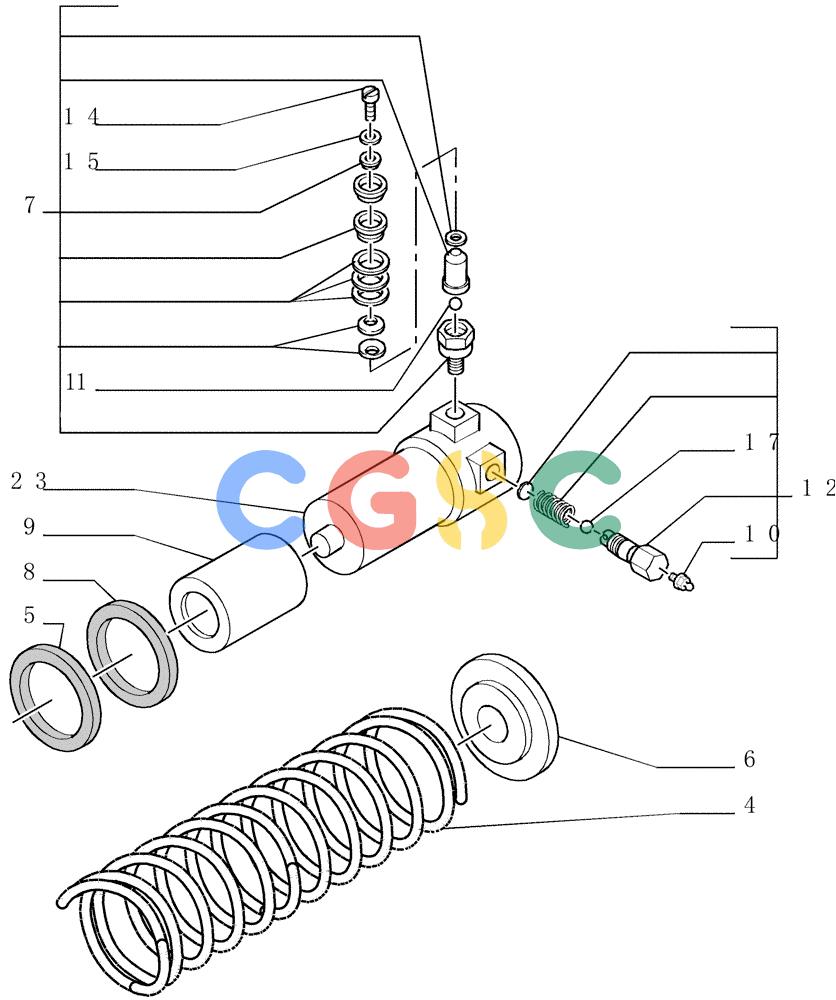

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (2.346[03]) - TRACK IDLER - CYLINDER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
324 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4. | 76041056 | [2] | SPRING | LEC |
| 5. | 8295066 | [2] | SEAL | LEC |
| 6. | 76041396 | [2] | CAP WASHER | LEC |
| 7. | 76008538 | [2] | SAFETY VALVE | LEC- ASSY |
| 8. | 76046465 | [2] | SEAL | LEC |
| 9. | 76053502 | [2] | PISTON | LEC |
| 10. | 13407211 | [1] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 11. | 20063470 | [1] | BALL | TTF7,938 Superseded by part number: 86642304 |
| 12. | 79043802 | [2] | HYDRAULIC VALVE | LEC- ASSY |
| 14. | 10389511 | [1] | SCREW,Sl Pan Hd, M5 x 14mm, Cl 5.8 | LEC Superseded by part number: 10389514 |
| 15. | 11195471 | [1] | LOCK WASHER | LEC5,1X1,1 Superseded by part number: 10569179 |
| 17. | 20063460 | [1] | BALL,7.14mm OD, Gr 100 | LEC7,144 |
| 23. | 76053500 | [2] | CYLINDER,75.2mm Bore Dia | LEC |
