纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.651[16]) - ROPS CANOPY - COMPONENTS - OPTIONAL CODE 784111201 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
384 次

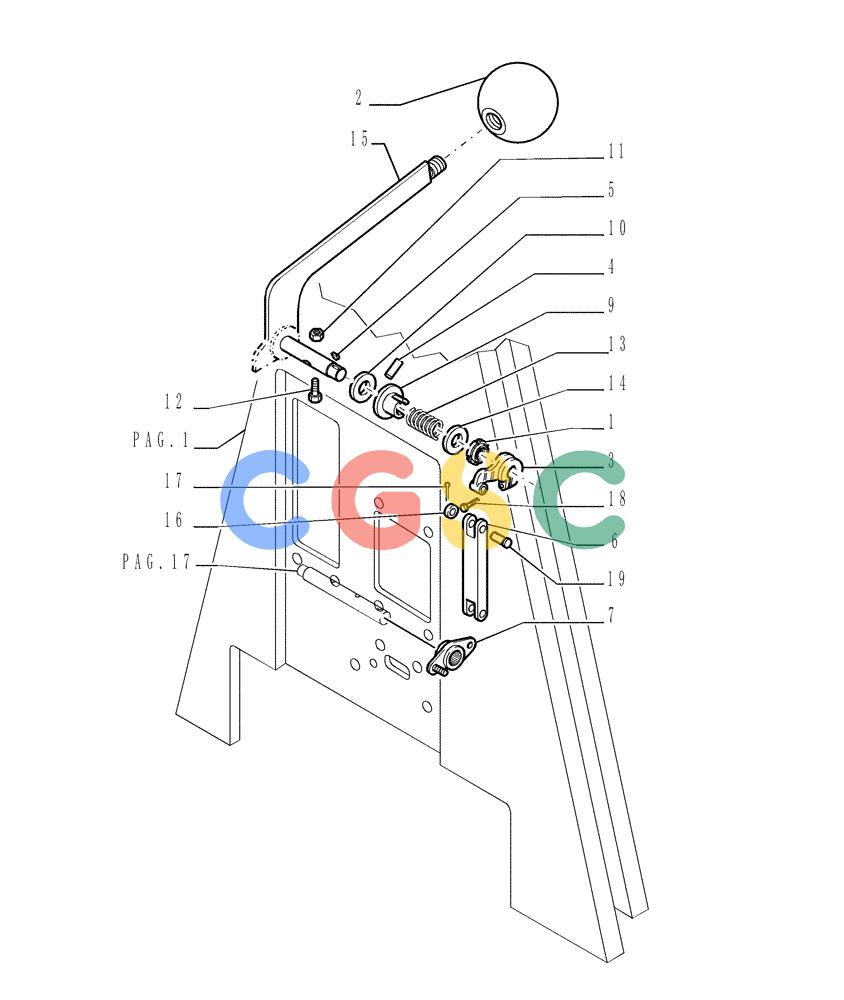

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79091571 | [1] | RING NUT | LEC |
| 2. | 5131161 | [1] | HANDLE GRIP | TTFBLACK |
| 3. | 79095114 | [1] | LEVER | LEC |
| 4. | 10334910 | [1] | DOWEL,M5 x 20 | MOD |
| 5. | 10205620 | [1] | KEY | LEC3,7X2,5 Superseded by part number: 10205610 |
| 6. | 79091546 | [1] | LINK | LEC- UPPER |
| 7. | 79078958 | [1] | PIVOT | LEC |
| 9. | 79091566 | [1] | BUSHING,14.1mm ID x 40mm OD x 18mm L | LEC |
| 10. | 76032147 | [2] | CLUTCH PLATE | LEC |
| 11. | 16100814 | [1] | NUT,M8, Cl 8, DAC | LEC Superseded by part number: 16100811 |
| 12. | 16043924 | [1] | BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd | TTF |
| 13. | 76072230 | [1] | SPRING | LEC |
| 14. | 79080850 | [1] | WASHER,14.5mm ID x 32mm OD x 3mm Thk | LEC |
| 15. | 76046976 | [1] | TRIP ARM | LEC |
| 16. | 591123 | [2] | WASHER | LEC |
| 17. | 10734201 | [2] | COTTER PIN,M2 x 12 | TTF Superseded by part number: |
| 18. | 10902421 | [1] | SCREW,Hex, M6 x 20mm, Cl 8.8 | LEC Superseded by part number: |
| 19. | 10004914 | [2] | PIN | LEC6X18,5 Superseded by part number: 10004911 |
