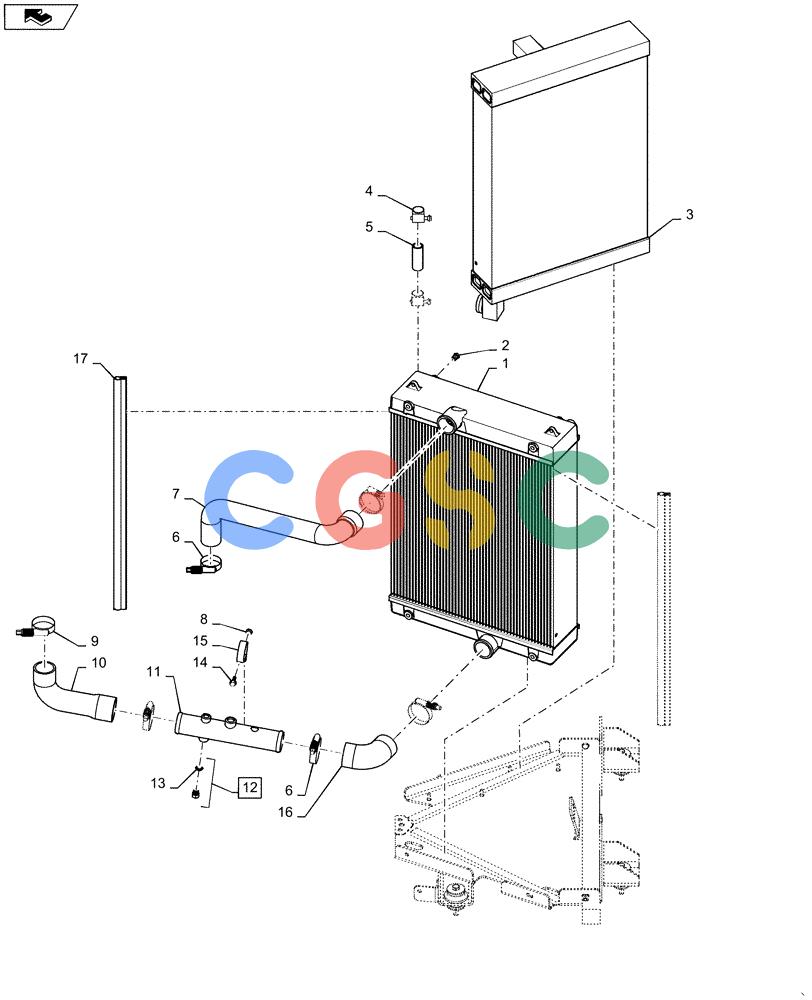

纽荷兰零件查询(D150C WT/LGP) - CRAWLER DOZER - TIER 4A (10/13-) (10.400.BE[06]) - RADIATOR AND OIL COOLER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
212 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84262310 | [1] | RADIATOR | RAC |
| 2. | 217-86 | [1] | PLUG,Hex Hd, 1/4"-18, Brass | CAS Superseded by part number: 9576801 |
| 3. | 84376175 | [1] | COOLER ASSY. | BUROil |
| 4. | 86625021 | [2] | HOSE CLAMP,17.5mm - 31.7mm | RAC |
| 5. | 84540654 | [1] | RADIATOR HOSE | BURAssembly, Cooler Outlet |
| 6. | L115548 | [4] | CLAMP,57.15mm - 79.38mm | CAS |
| 7. | 84487900 | [1] | HOSE | BURUpper |
| 8. | 87655042 | [1] | SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk | BURIncl O-ring |
| 9. | 254026A1 | [2] | HOSE CLAMP,44.45mm - 66.67mm | CAS |
| 10. | 84487403 | [1] | HOSE | BUR |
| 11. | 84540650 | [1] | TUBE | BURRadiator, Up |
| 12. | 76349 | [1] | PLUG,9/16" - 18 ORB | NHIncl 13 |
| 13. | 9617873 | [1] | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | NH |
| 14. | 9671714 | [1] | FLANGE BOLT,Hex, M8 x 1.25 x 25mm, CL 8.8 | NHValve, 1/4 NPTF Drain |
| 15. | 87573379 | [1] | CLAMP,57.1mm, Coat, 13.5mm Bolt Hole, P Type | GIRadiator, Epdm |
| 16. | 84487901 | [1] | HOSE | BURRadiator, Lower |
| 17. | 84540657 | [2] | RUBBER WEATHERSTRIP | BUR |
