沃尔沃零件查询EC240 Turning jointNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
720 次

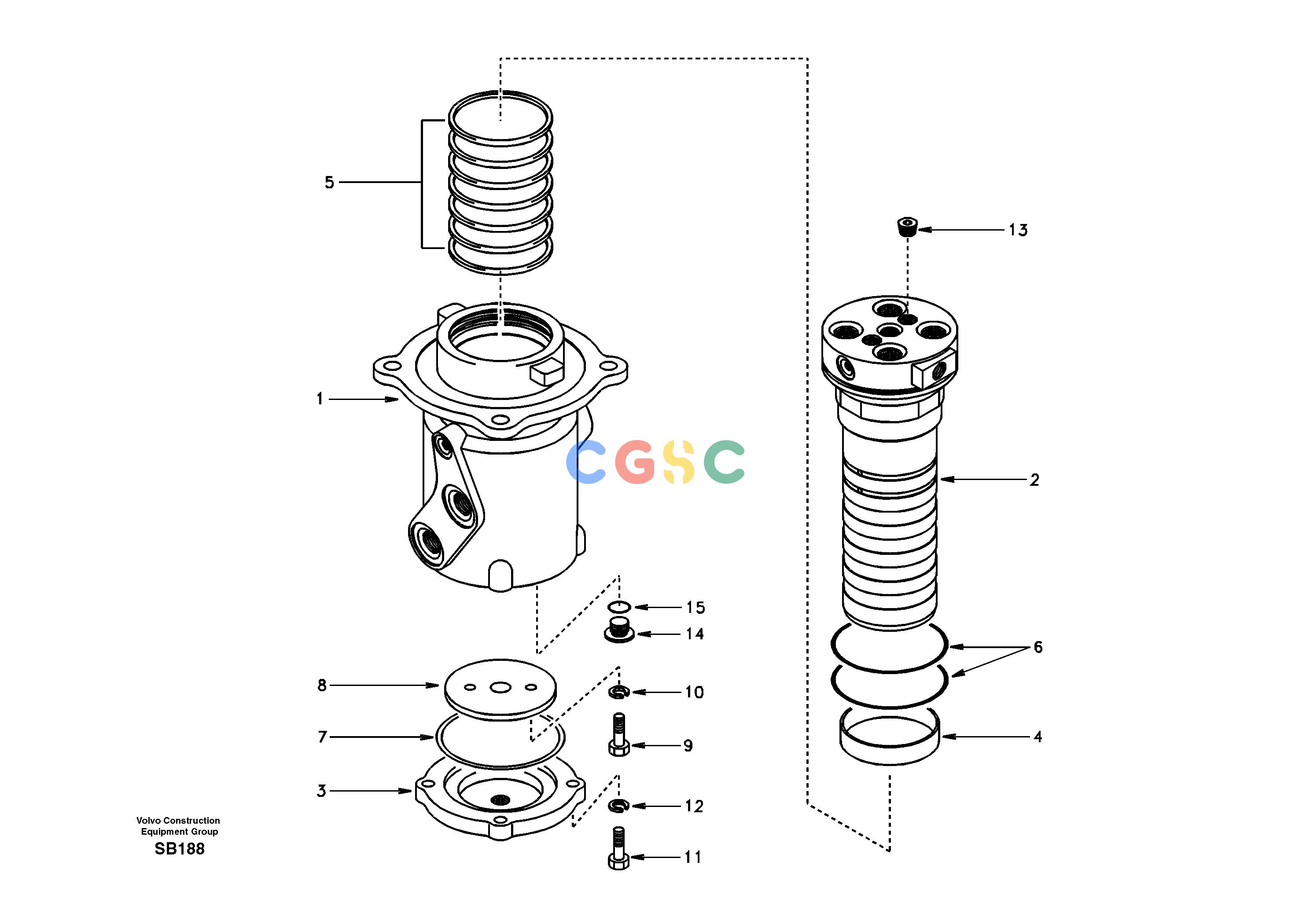

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
SA1146-00112
|
[1] |
Turning Joint
|
|
| 1. |
SA1146-00071
|
[1] |
Hub
|
|
| 2. |
SA1146-00122
|
[1] |
Dipper Arm
|
|
| 3. |
SA1146-00090
|
[1] |
Cover
|
|
| 4. |
SA9611-10025
|
[1] |
Bearing
|
|
| 5. |
VOE1046-05420
|
[7] |
Seal
|
SER NO 3001-3986
|
| |
VOE14507705
|
[7] |
Seal
|
SER NO 3987-
|
| 6. |
VOE990645
|
[2] |
O-ring
|
|
| 7. |
VOE990601
|
[1] |
O-ring
|
|
| 8. |
SA1146-00101
|
[1] |
Spacer
|
|
| 9. |
SA9011-11005
|
[2] |
Bolt
|
|
| 10. |
SA9213-10000
|
[2] |
Spring washer
|
|
| 11. |
SA9011-11208
|
[4] |
Bolt
|
|
| 12. |
SA9213-12000
|
[4] |
Spring washer
|
|
| 13. |
SA9415-43032
|
[2] |
Plug
|
|
| 14. |
SA1146-00670
|
[4] |
Plug
|
|
| 15. |
VOE983524
|
[4] |
O-ring
|
|
| 100. |
VOE14500512
|
[1] |
Sealing Kit
|
|
