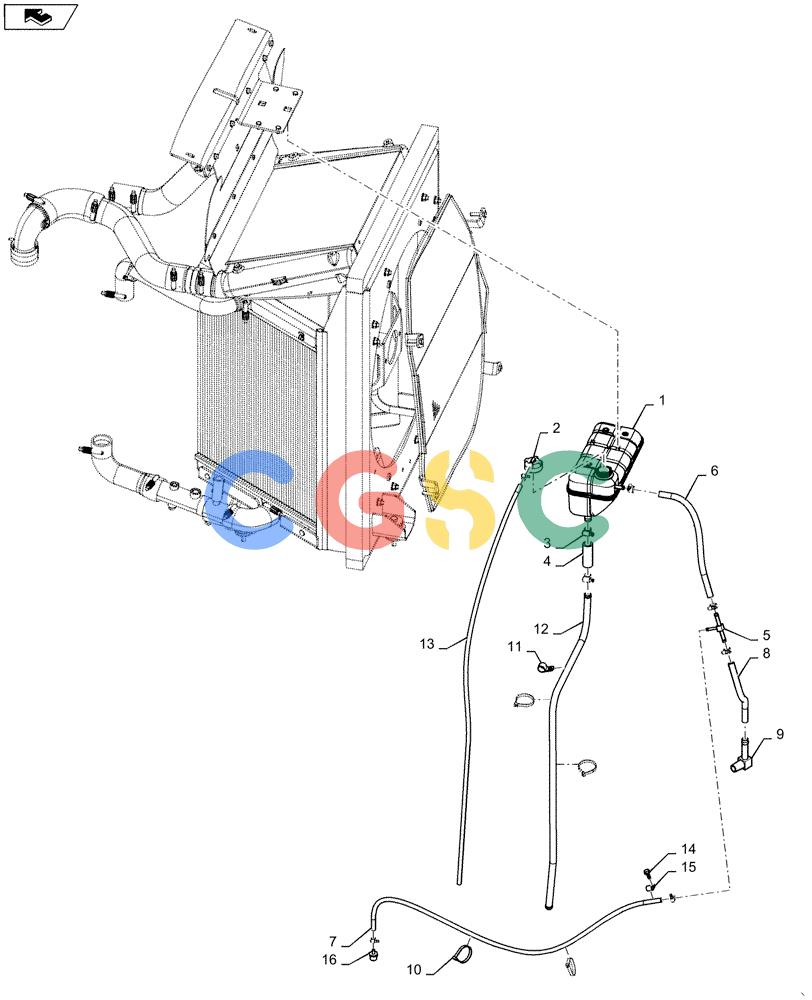

纽荷兰零件查询(D150C WT/LGP) - CRAWLER DOZER - TIER 4A (10/13-) (10.400.BI[02]) - DEAERATION SYSTEM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
723 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 82019588 | [1] | COOLANT EXPANSION RESERVOIR | BASDeaeration Bottle |
| 2. | 82022744 | [1] | CAP | BASDeaeration Bottle |
| 3. | 86625021 | [2] | HOSE CLAMP,17.5mm - 31.7mm | RAC |
| 4. | 84540654 | [1] | RADIATOR HOSE | BUR |
| 5. | 84207344 | [1] | TEE | FAR |
| 6. | 47376044 | [1] | HOSE,9.5mm ID x 418mm L | BURDeaeration Bottle |
| 7. | 84570289 | [1] | RADIATOR HOSE,6.35mm ID x 1212mm L | BUR Superseded by part number: 84570432 |
| 8. | 84570288 | [1] | RADIATOR HOSE,7.92mm ID x 327mm L | BUR |
| 9. | 217-132 | [1] | 90 ELBOW,90º, 3/8" Hose x 1/4" NPTF Beaded | CAS |
| 10. | L11541 | [8] | CABLE TIE,203.2mm L, Nylon | CAS7/8, Tie Superseded by part number: 87000312 |
| 11. | 86624005 | [1] | CLAMP,19mm, Coat, 10.3mm Bolt Hole, P Type | FOR |
| 12. | 84591224 | [1] | TUBE | BURDeaeration To Radiator |
| 13. | 84540652 | [1] | HOSE,6.35mm ID x 1417mm L | BURRadiator |
| 14. | 845-8020 | [1] | BOLT,Hvy Hex, M8 x 20mm, Cl 8.8 | CAS |
| 15. | 86625036 | [1] | CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type | FAR |
| 16. | 87635840 | [1] | VALVE | FARCheck, Venting |
