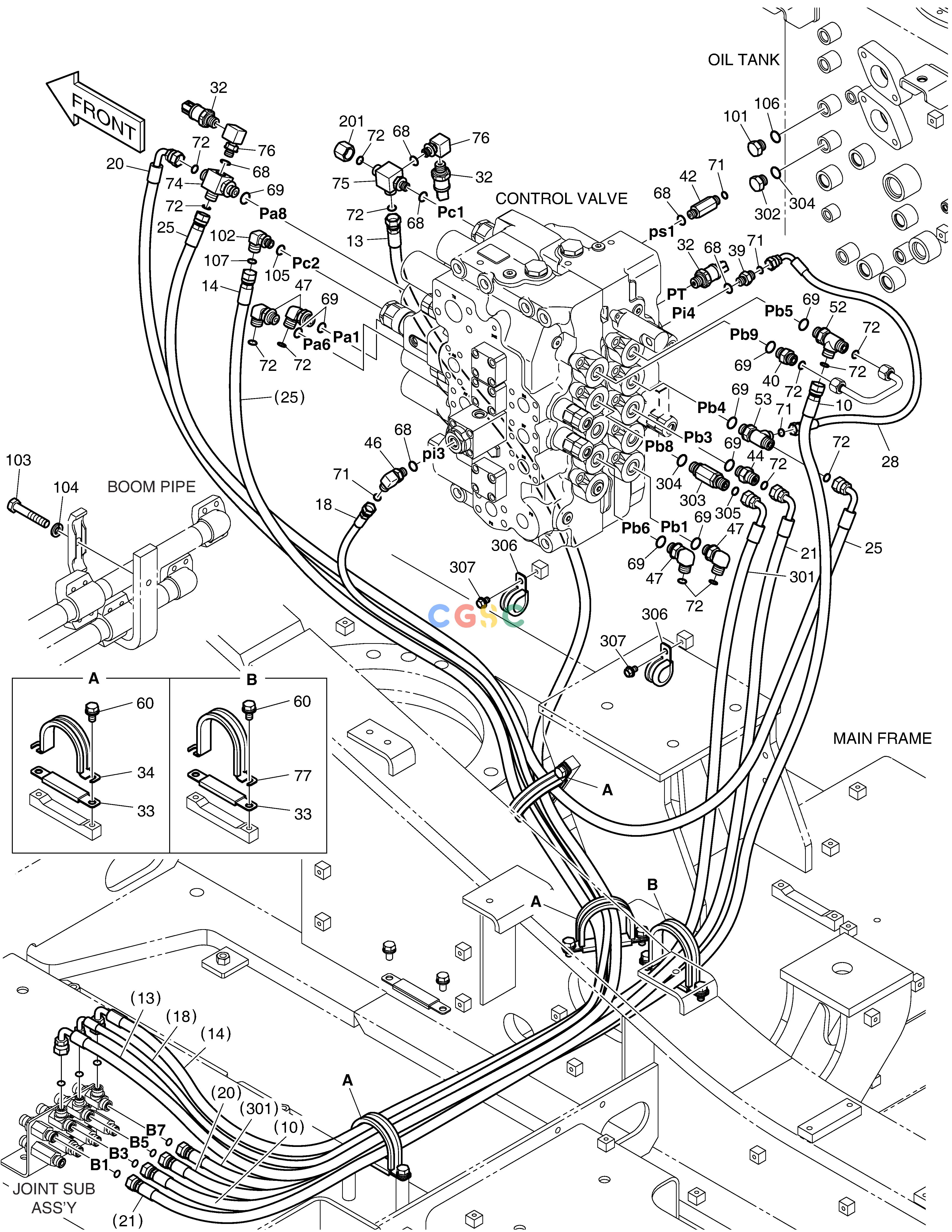

斗山零件查询PILOT PIPING(4) DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
645 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08546
|
[-] |
|
|
| 10. |
DS2119039
|
[1] |
|
|
| 101. |
2181-1950D2
|
[1] |
PLUG
|
|
| 102. |
2181-2815D5
|
[1] |
ELBOW
|
|
| 103. |
S0561166
|
[1] |
BOLT
|
|
| 104. |
S5102703
|
[1] |
WASHER
|
|
| 105. |
S8000111
|
[1] |
O-RING
|
|
| 106. |
S8000141
|
[1] |
O-RING
|
|
| 107. |
S8030061
|
[1] |
O-RING
|
|
| 13. |
DS2121040
|
[1] |
|
|
| 14. |
DS2121140
|
[1] |
|
|
| 18. |
DS2121283
|
[1] |
|
|
| 20. |
DS2121118
|
[1] |
|
|
| 201. |
DS2916010
|
[1] |
|
|
| 21. |
DS2121371
|
[1] |
|
|
| 25. |
DS2143002
|
[1] |
|
|
| 28. |
DS2143005
|
[1] |
|
|
| 301. |
DS2121370
|
[1] |
|
|
| 302. |
2181-1950D2
|
[1] |
PLUG
|
|
| 303. |
410133-00004D2
|
[1] |
|
|
| 304. |
S8000141
|
[2] |
O-RING
|
|
| 305. |
S8030061
|
[1] |
O-RING
|
|
| 306. |
124-00208D4
|
[2] |
CLIP
|
|
| 307. |
K1001029
|
[2] |
BOLT
|
|
| 32. |
K1057340
|
[3] |
SENSOR,PRESSURE
|
|
| 33. |
120202-00055
|
[4] |
|
|
| 34. |
120202-00137A
|
[3] |
|
|
| 39. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 40. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 42. |
2181-4133D43
|
[1] |
ADAPTER
|
|
| 44. |
DS2413003
|
[1] |
|
|
| 46. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 47. |
2181-2815D6
|
[4] |
ELBOW
|
|
| 52. |
181-00121D2
|
[1] |
TEE
|
|
| 53. |
181-00121D4
|
[1] |
TEE
|
|
| 60. |
DS0025042
|
[8] |
BOLT
|
|
| 68. |
S8000111
|
[6] |
O-RING
|
|
| 69. |
S8000141
|
[9] |
O-RING
|
|
| 71. |
S8030041
|
[4] |
O-RING
|
|
| 72. |
S8030061
|
[13] |
O-RING
|
|
| 74. |
430225-00218
|
[1] |
|
|
| 75. |
430225-00219
|
[1] |
|
|
| 76. |
2181-2295D4
|
[2] |
ELBOW
|
|
| 77. |
120202-00057C
|
[1] |
|
|
