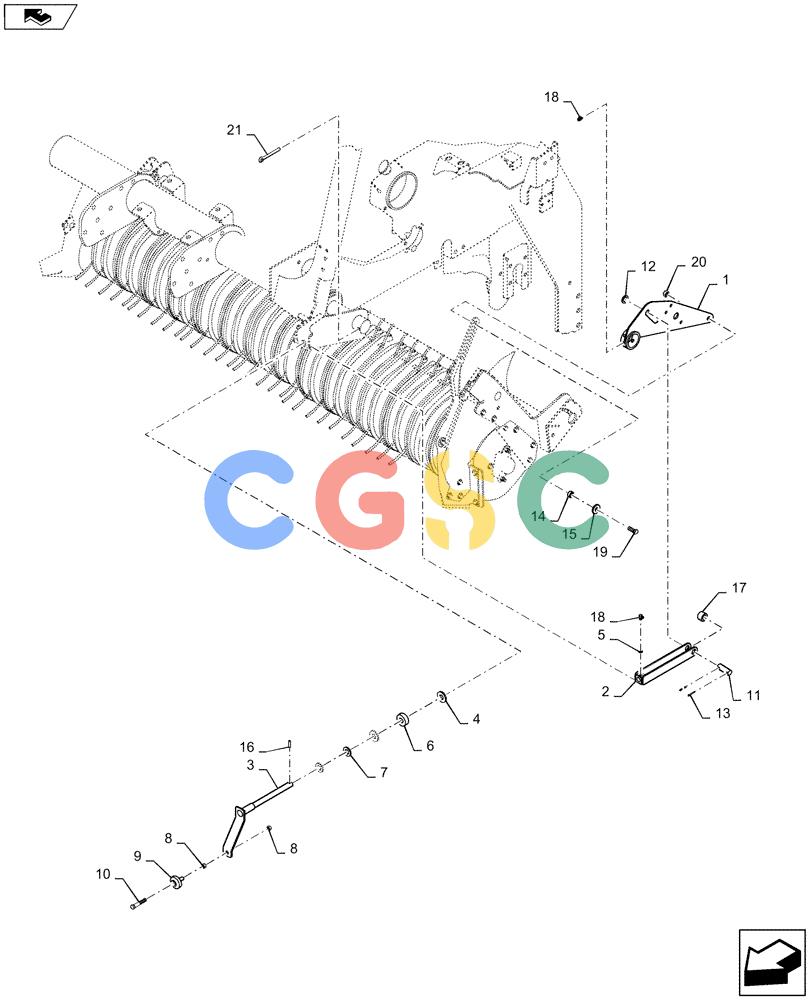

凯斯零件查询(RB465) - CASE IH ROUND BALER - NORTH AMERICA (5/14-12/15) (60.220.CS[04]) - VAR - 726866, 726867 - PICK-UP, MECHANICAL LIFT, YFN188619 AND AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
903 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47437159
|
[1] |
ARM
|
NH
Pickup Lift
|
| 2. |
47478955
|
[1] |
LINK
|
NH
Pickup Lift
|
| 3. |
47478963
|
[1] |
CRANKED HANDLE
|
NH
Pickup Lift
|
| 4. |
86632592
|
[2] |
WASHER,1.06" ID x 2" OD x 0.13" Thk
|
FOR
|
| 5. |
87361
|
[1] |
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
|
NH
|
| 6. |
90999
|
[1] |
SPACER,25.65mm ID x 50.8mm OD x 15.88mm L
|
NH
|
| 7. |
47485726
|
[2] |
BELLEVILLE WASHER,M22 Bolt Size x 50mm OD x 3mm Thk
|
PLO
|
| 8. |
9628503
|
[2] |
NUT,3/8"-16, G5
|
NH
|
| 9. |
33781
|
[1] |
KNOB
|
NH
|
| 10. |
88444
|
[1] |
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
|
NH
|
| 11. |
47437161
|
[1] |
PIN
|
NH
|
| 12. |
249100
|
[1] |
WASHER,0.78" ID x 1.25" OD x 0.06" Thk
|
NH
|
| 13. |
80738
|
[2] |
COTTER PIN,3/16" x 1 1/4"
|
GI
Superseded by part number: 87398
|
| 14. |
87020910
|
[11] |
SPACER,10.4mm ID x 19mm OD x 8.9mm Thk
|
PA
|
| 15. |
213404
|
[1] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
|
| 16. |
280315
|
[1] |
GROOVED PIN,4.76mm OD x 25.4mm L
|
NH
|
| 17. |
86636631
|
[1] |
HUB
|
NH
Pickup Lift
|
| 18. |
87569
|
[2] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
|
| 19. |
9706704
|
[1] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
|
| 20. |
9804278
|
[1] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 21. |
9790710
|
[1] |
COTTER PIN,3/16" x 3 1/2"
|
NH
|
