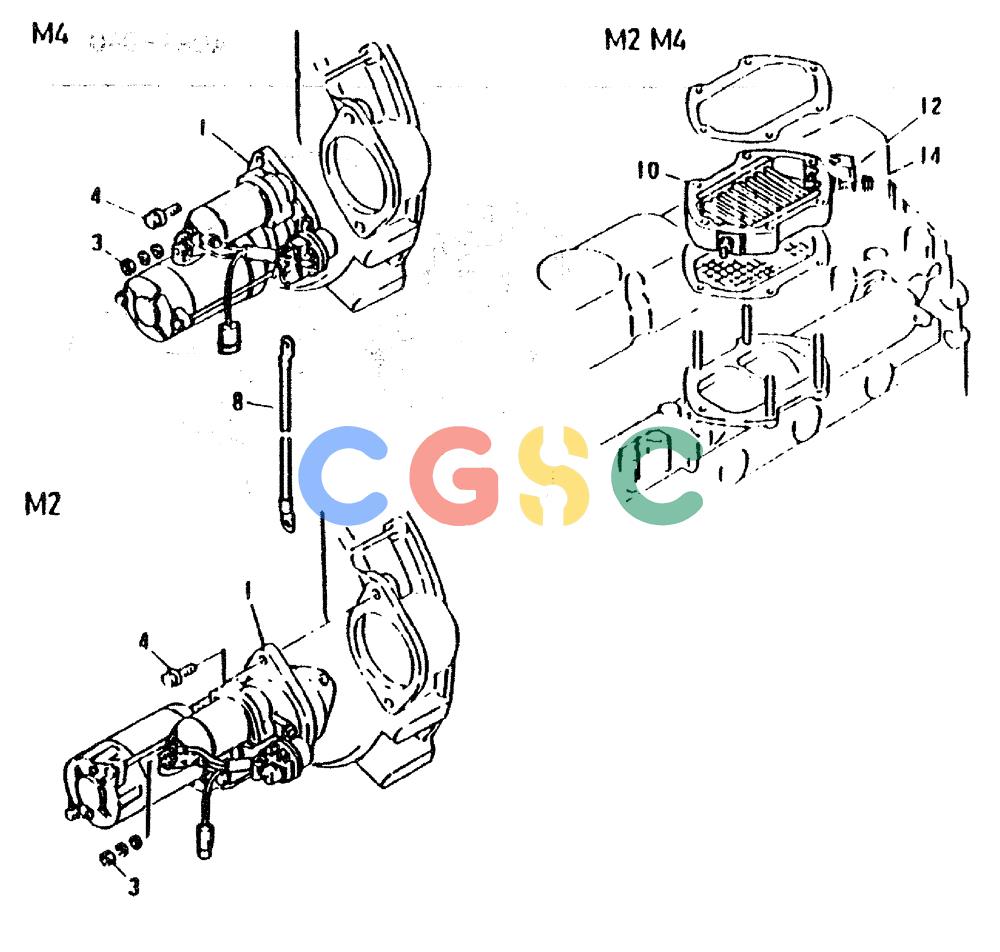

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (04-001) - STARTER GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
227 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME087507 | [1] | STARTER MOTOR | KOBMEC 24V-5KW, FOR M2 ONLY Superseded by part number: VAME087589 |
| . . | VAME087521 | [1] | STARTER MOTOR | KOB24V-5.5KW, FOR M4 ONLY |
| 3. | VAMF430725 | [1] | NUT | KOB8 |
| . . | VAMF450405 | [1] | WASHER | KOBSPG 8 Superseded by part number: 132502A1 |
| . . | VAMF450005 | [1] | WASHER | KOBPLAIN B |
| 4. | VAMH000727 | [2] | BOLT | KOBFLANGE 12 X 30 |
| 8. | VAMH054040 | [1] | STRAP | KOBSTRAP, GROUND, FOR M4 ONLY |
| 10. | VAME077014 | [1] | HEATER | KOBASSY 22V-130A |
| 12. | VAME018150 | [1] | PLATE | KOB |
| 14. | VAMF434103 | [2] | NUT | KOBFLANGE 6 |
