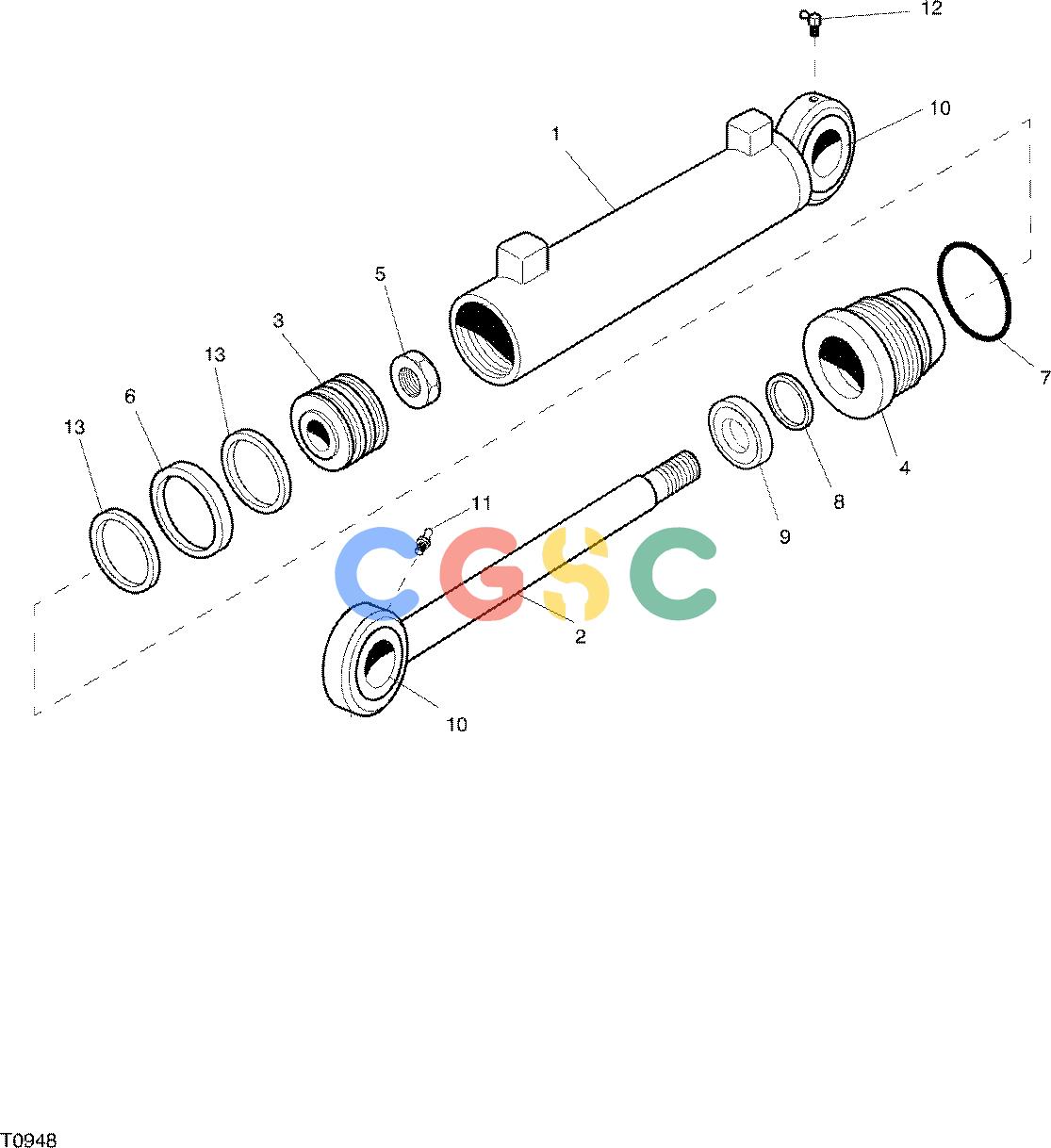

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE CYLINDER, KNIVES F045006 11 40 T0948 [T0948]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
1003 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F047835
|
[1] |
Hydraulic Cylinder
|
|
| 1. |
F047875
|
[1] |
CYLINDER TUBE
|
|
| 2. |
F047876
|
[1] |
PISTON ROD
|
|
| 3. |
F047877
|
[1] |
Piston
|
|
| 4. |
F047878
|
[1] |
PISTON GUIDE
|
|
| 5. |
F003568
|
[1] |
Nut
|
|
| 6. |
F047879
|
[1] |
SEAL RING
|
|
| 7. |
F035259
|
[1] |
O-Ring
|
|
| 8. |
F047880
|
[1] |
Seal
|
|
| 9. |
F047881
|
[1] |
Scraper
|
|
| 10. |
F003818
|
[2] |
SPHERICAL BEARING
|
|
| 11. |
F003727
|
[1] |
GREASE NIPPLE
|
|
| 12. |
F023581
|
[1] |
GREASE NIPPLE
|
|
| 13. |
F047882
|
[2] |
GUIDE RING
|
|
| 13. |
F047883
|
[1] |
Seal Kit
|
|
