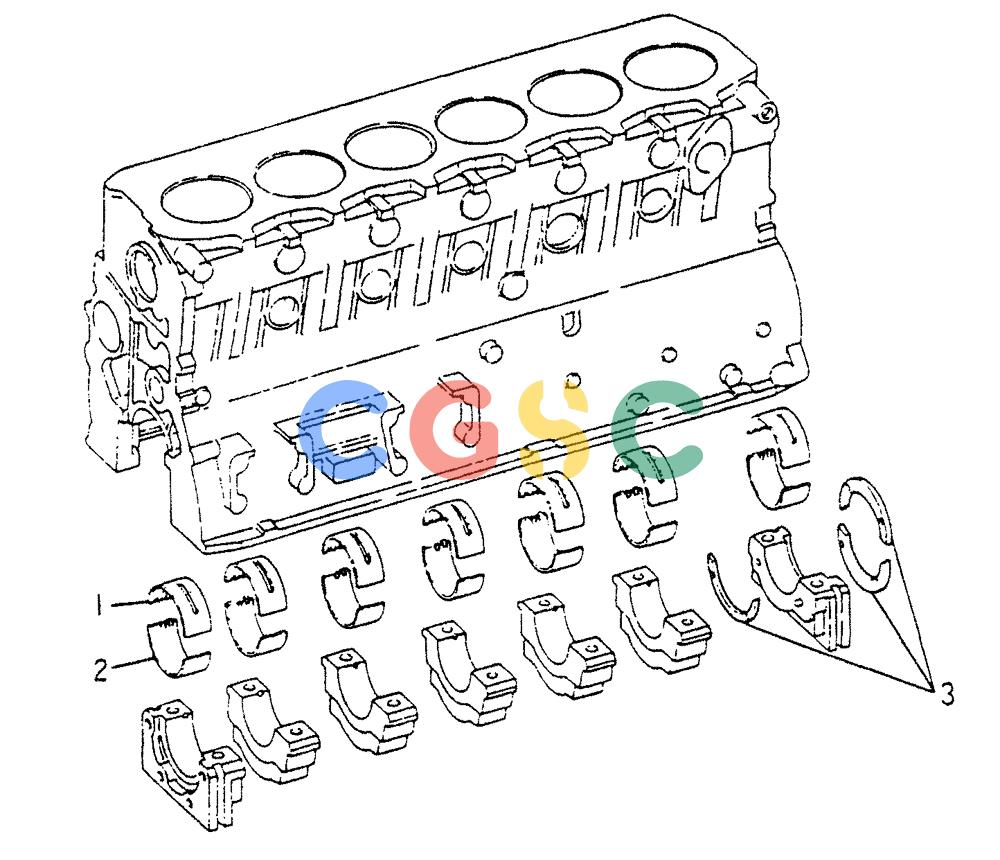

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-002) - CRANKSHAFT BEARING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
824 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME999081 | [1] | SET OF STD MAIN BRGS | KOBONE MODEL |
| 1-2. | VAME999083 | [1] | SET OF STD MAIN BRGS | KOBONE MODEL 0.25 |
| 1-2. | VAME999085 | [1] | SET OF STD MAIN BRGS | KOBONE MODEL 0.50 |
| 1-2. | VAME999087 | [1] | SET OF STD MAIN BRGS | KOBMAIN BEARING SET, ONE MODEL US 0.75 |
| 1. | NSS | [7] | NOT SOLD SEPARAT | CONBEARING, MAIN UPPER STD (ME001033) |
| 2. | NSS | [7] | NOT SOLD SEPARAT | CONBEARING, MAIN LOWER STD (ME001102) |
| 3. | VA3130908101 | [3] | THRUST PLATE | KOBPLATE,THRUST STD Superseded by part number: VAME001355 |
| 3. | VA3130908201 | [1] | PLATE,THRUST 0.15 PLATE,THRUST OS 0.15 | PLATE,THRUST 0.15 PLATE,THRUST OS 0.15 |
| 3. | VA3130908301 | [1] | THRUST PLATE OS 0.30 PLATE,THRUST OS 0.30 | THRUST PLATE OS 0.30 PLATE,THRUST OS 0.30 |
| 3. | VA3130908401 | [1] | THRUST PLATE | KOBPLATE,THRUST OS 0.45 |
