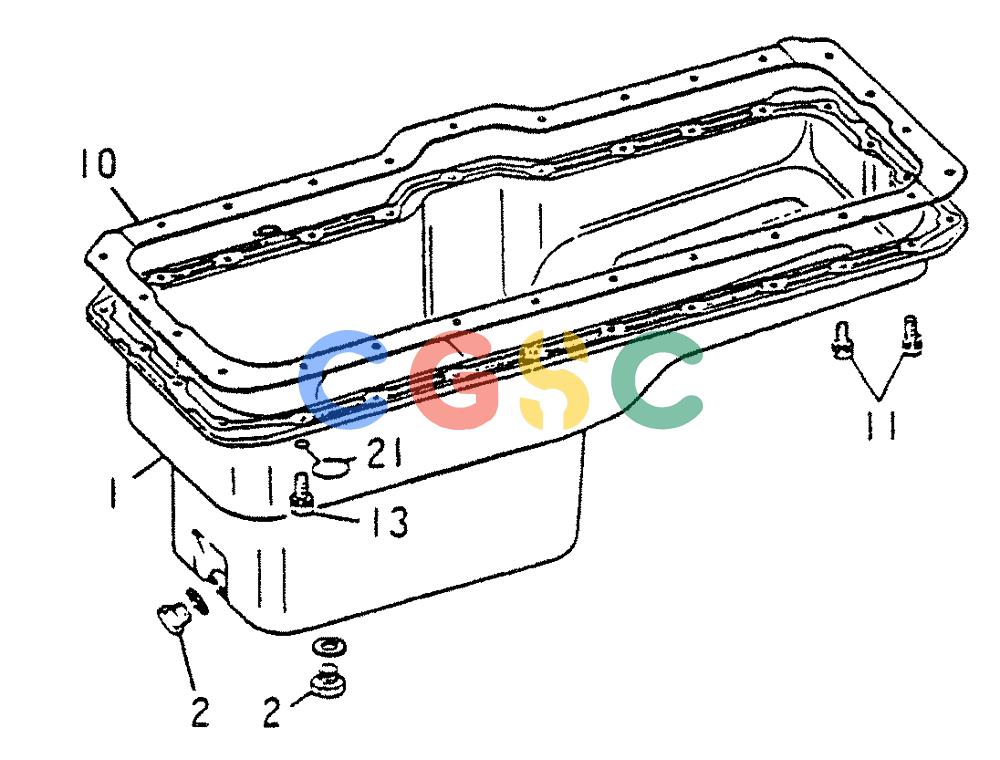

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-003) - OIL PAN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
396 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME008139 | [1] | PAN, OIL PAN, OIL | PAN, OIL PAN, OIL |
| 2. | VAMH037126 | [2] | PLUG,18mm OD x 1.5 Thd Pitch | KOBPLUG, DRAIN |
| . . | VAMH035018 | [2] | GASKET | KOBGASKET 18 |
| 10. | VA3171320200 | [1] | GASKET | KOBGASKET, OIL PAN |
| 11. | VAMF140223 | [25] | BOLT | KOBBOLT, FLANGE 8X16 |
| 13. | VAMF140225 | [1] | BOLT | KOBBOLT, FLANGE 8X20 |
| 21. | VA3004211900 | [1] | STAY | KOBCLAMP Superseded by part number: 132291A1 |
