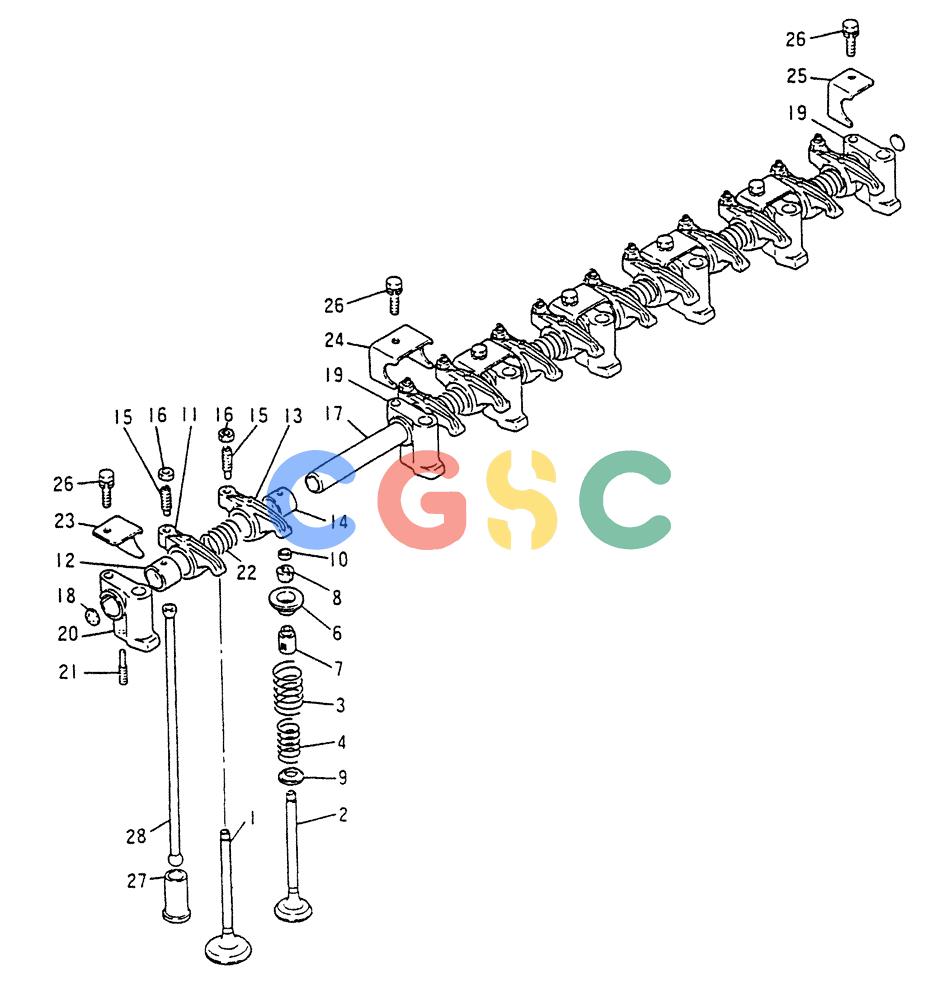

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-014) - VALVE GEAR TRAIN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
295 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME001142 | [6] | VALVE,INLET | VALVE,INLET |
| 2. | VAME001143 | [6] | VALVE,EXHAUST | VALVE,EXHAUST |
| 3. | VAME001119 | [12] | SPRING | KOBVALVE OUTER |
| 4. | VAME001118 | [12] | SPRING | KOBVALVE INNER |
| 6. | VAME001184 | [12] | RETAINER | KOBRETAINER,UPPER |
| 7. | VAME001166 | [12] | SEAL | KOBVALVE STEM |
| 8. | VAME001121 | [24] | COTTER PIN | KOBCOTTER, VALVE (AVAILABLE IN SET WITH PAIR) |
| 9. | VA3130400701 | [12] | RETAINER | KOBRETAINER,LOWER |
| 10. | VA3130411700 | [12] | CAP | KOBCAP |
| 11-12. | VAME001005 | [6] | ROCKER ARM | KOBROCKER ASSY, INLET |
| 11. | NSS | [6] | NOT SOLD SEPARAT | CONROCKER, INLET |
| 12. | VA3160413100 | [6] | BUSHING | KOBBUSHING |
| 13-14. | VAME001006 | [6] | ROCKER ASSY EXH | ROCKER ASSY EXH |
| 13. | NSS | [6] | NOT SOLD SEPARAT | CONROCKER, EXH |
| 14. | VA3160413100 | [6] | BUSHING | KOBBUSHING |
| 15. | VAMH001002 | [12] | SCREW | KOBSCREW, ADJUSTING 8X32 Superseded by part number: VAME220221 |
| 16. | VAMF430841 | [12] | NUT | KOBNUT 8 |
| 17-18. | VAME001249 | [1] | SHAFT | KOB |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONSHAFT,ROCKER |
| 18. | VA3130404500 | [2] | PLUG, EXPANSION | |
| 19. | VAME001107 | [6] | BRACKET ROCKER SHAFT | BRACKET ROCKER SHAFT |
| 20. | VAME001108 | [1] | BRACKET ROCKER SHAFT | BRACKET ROCKER SHAFT |
| 21. | VA3130419500 | [1] | SCREW SET SCREW, SET | SCREW SET SCREW, SET |
| 22. | VA3130408500 | [6] | SPRING ROCKER SHAFT SPRING, ROCKER SHAFT | SPRING ROCKER SHAFT SPRING, ROCKER SHAFT |
| 23. | VA3130419101 | [1] | RETAINER F RETAINER, FR | RETAINER F RETAINER, FR |
| 24. | VA3130419201 | [5] | RETAINER M RETAINER, MI | RETAINER M RETAINER, MI |
| 25. | VA3130419301 | [1] | RETAINER R RETAINER, RE | RETAINER R RETAINER, RE |
| 26. | VAMF241257 | [7] | BOLT | KOBBOLT, W/WSR 8X30 |
| 27. | VAME023171 | [12] | TAPPET | KOB |
| 28. | VAME001183 | [12] | PUSH ROD | KOB |
