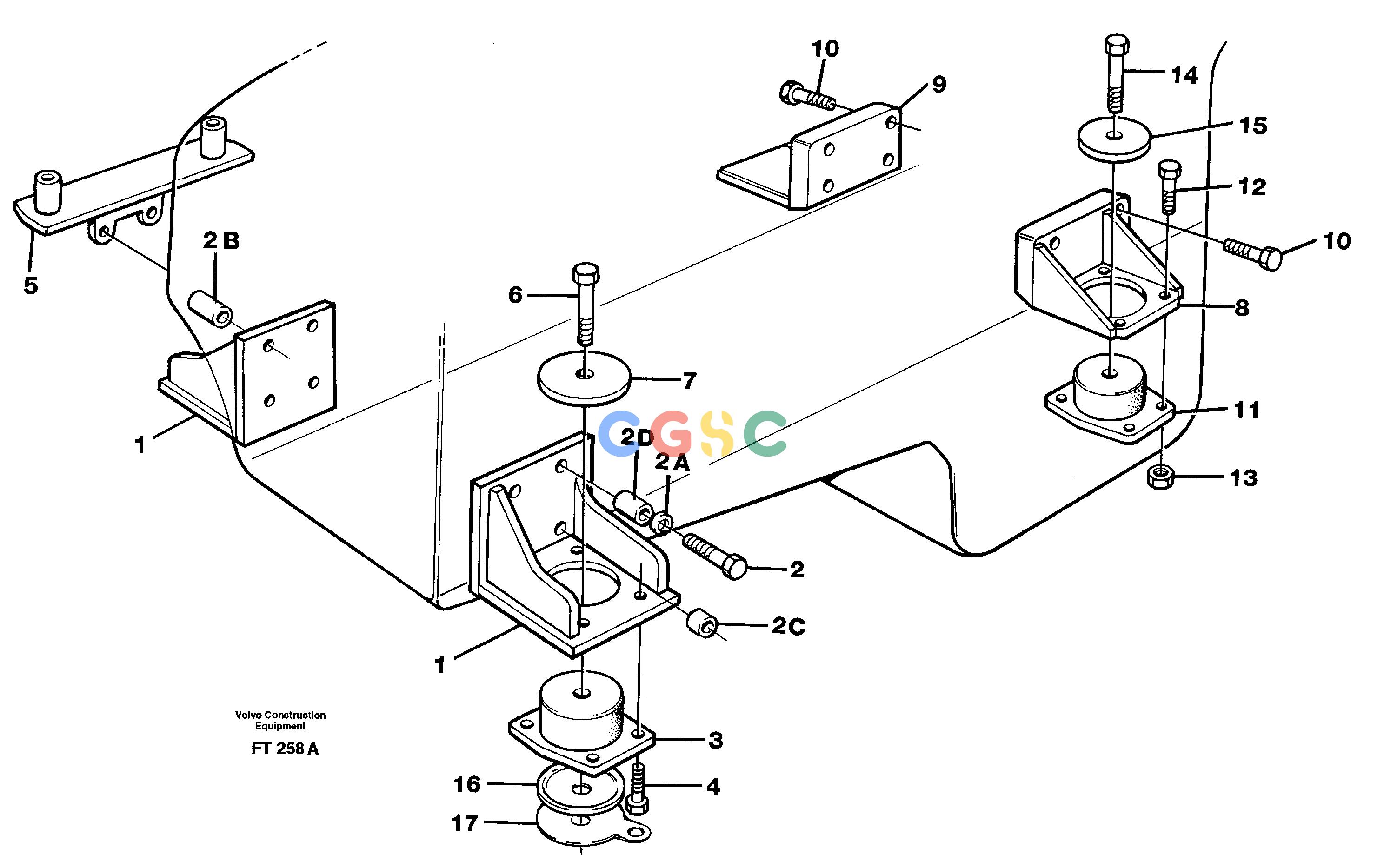

沃尔沃零件查询EC340 Engine mountingSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
910 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14344757
|
[2] |
Engine anchorage
|
LH, FRONT AND REAR
|
| 2. |
VOE13970906
|
[4] |
Hexagon screw
|
L = 70MM
|
| |
VOE13970910
|
[4] |
Hexagon screw
|
L = 100MM
|
| 2A. |
VOE60110353
|
[10] |
Washer
|
|
| 2B. |
VOE14344699
|
[2] |
Spacer
|
|
| 2C. |
VOE14344696
|
[4] |
Spacer
|
|
| 2D. |
VOE14344698
|
[2] |
Spacer
|
|
| 3. |
VOE14343643
|
[2] |
Rubber cushion
|
|
| 4. |
VOE14310063
|
[8] |
Screw
|
|
| 5. |
VOE14268025
|
[1] |
Bracket
|
|
| 6. |
VOE963347
|
[2] |
Hexagon screw
|
|
| 7. |
VOE14343874
|
[2] |
Washer
|
|
| 8. |
VOE14344716
|
[1] |
Engine anchorage
|
RH, REAR
|
| 9. |
VOE14344717
|
[1] |
Engine anchorage
|
RH, FRONT
|
| 10. |
VOE14310035
|
[8] |
Lock screw
|
|
| 10A. |
VOE955899
|
[8] |
Plain washer
|
|
| 11. |
VOE14343643
|
[2] |
Rubber cushion
|
|
| 12. |
VOE13965185
|
[8] |
Screw
|
|
| 13. |
VOE13971098
|
[8] |
Flange nut
|
|
| 14. |
VOE963347
|
[2] |
Hexagon screw
|
|
| 15. |
VOE14343874
|
[2] |
Washer
|
|
| 16. |
VOE14343658
|
[4] |
Washer
|
SER NO 1085 -
|
| 17. |
VOE14343689
|
[REQ] |
Shim
|
SER NO 1085 -
|
