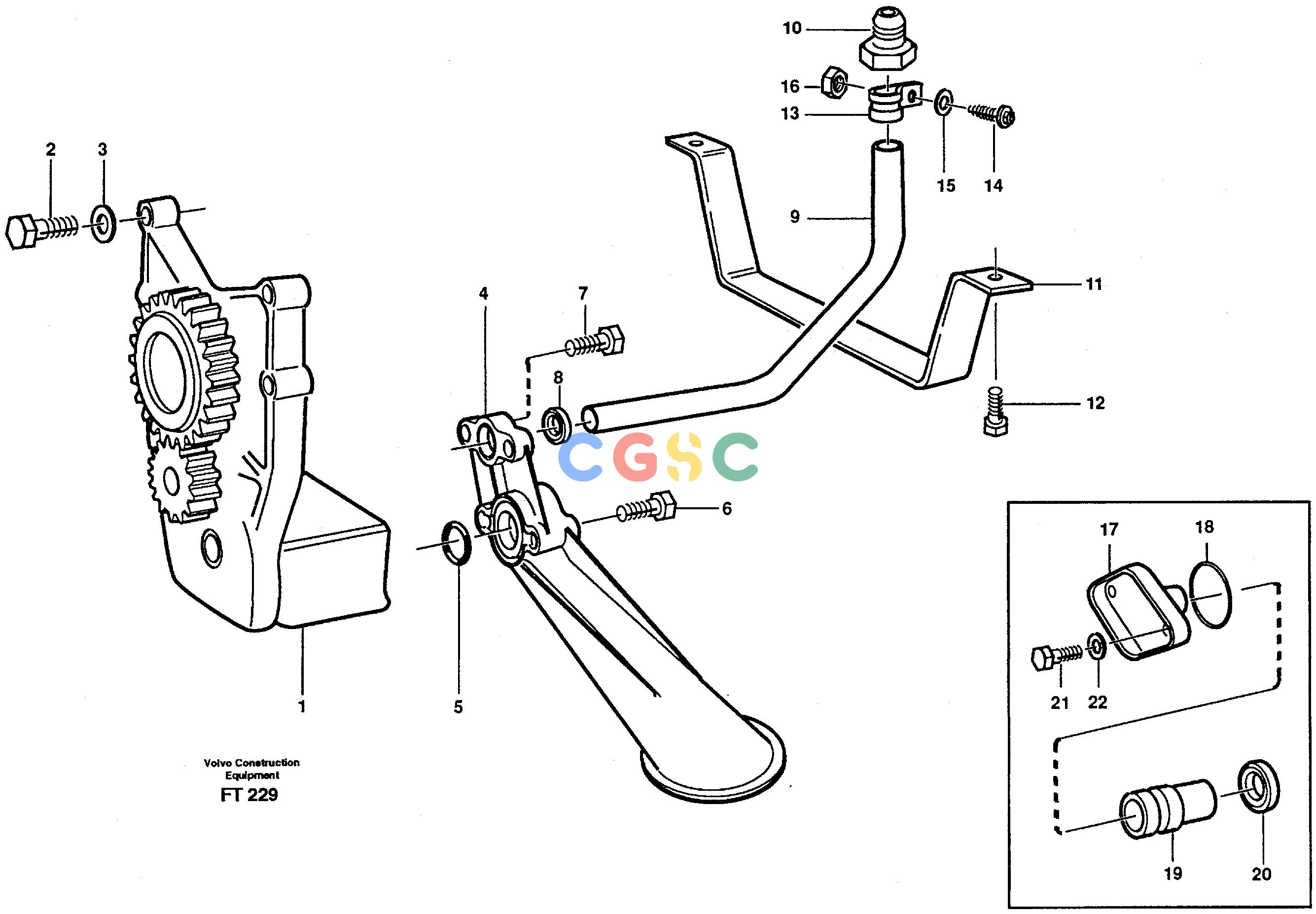

沃尔沃零件查询EC340 Lubricating oil systemSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
683 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Oil pump
|
|
| 2. |
VOE955538
|
[4] |
Hexagon screw
|
|
| 3. |
VOE13942336
|
[4] |
Spring washer
|
|
| 4. |
VOE479325
|
[1] |
Oil strainer
|
|
| 5. |
VOE949659
|
[1] |
O-ring
|
|
| 6. |
VOE959795
|
[2] |
Hexagon screw
|
|
| 7. |
VOE942402
|
[2] |
Flange screw
|
|
| 8. |
VOE470263
|
[1] |
Sealing ring
|
|
| 9. |
VOE8125392
|
[1] |
Oil feed pipe
|
|
| 10. |
VOE466908
|
[1] |
Fitting
|
|
| 11. |
VOE470918
|
[1] |
Bracket
|
|
| 12. |
VOE942402
|
[2] |
Flange screw
|
|
| 13. |
VOE11000239
|
[1] |
Clamp
|
|
| 14. |
VOE942402
|
[1] |
Flange screw
|
|
| 15. |
VOE13955894
|
[1] |
Washer
|
|
| 16. |
VOE945467
|
[1] |
Lock nut
|
|
| 17. |
VOE471752
|
[1] |
Cover
|
|
| 18. |
VOE949658
|
[1] |
O-ring
|
|
| 19. |
VOE471707
|
[1] |
Reduction valve
|
|
| 20. |
VOE469846
|
[1] |
Sealing ring
|
|
| 21. |
VOE940100
|
[2] |
Hexagon screw
|
|
| 22. |
VOE13949607
|
[2] |
Washer
|
|
