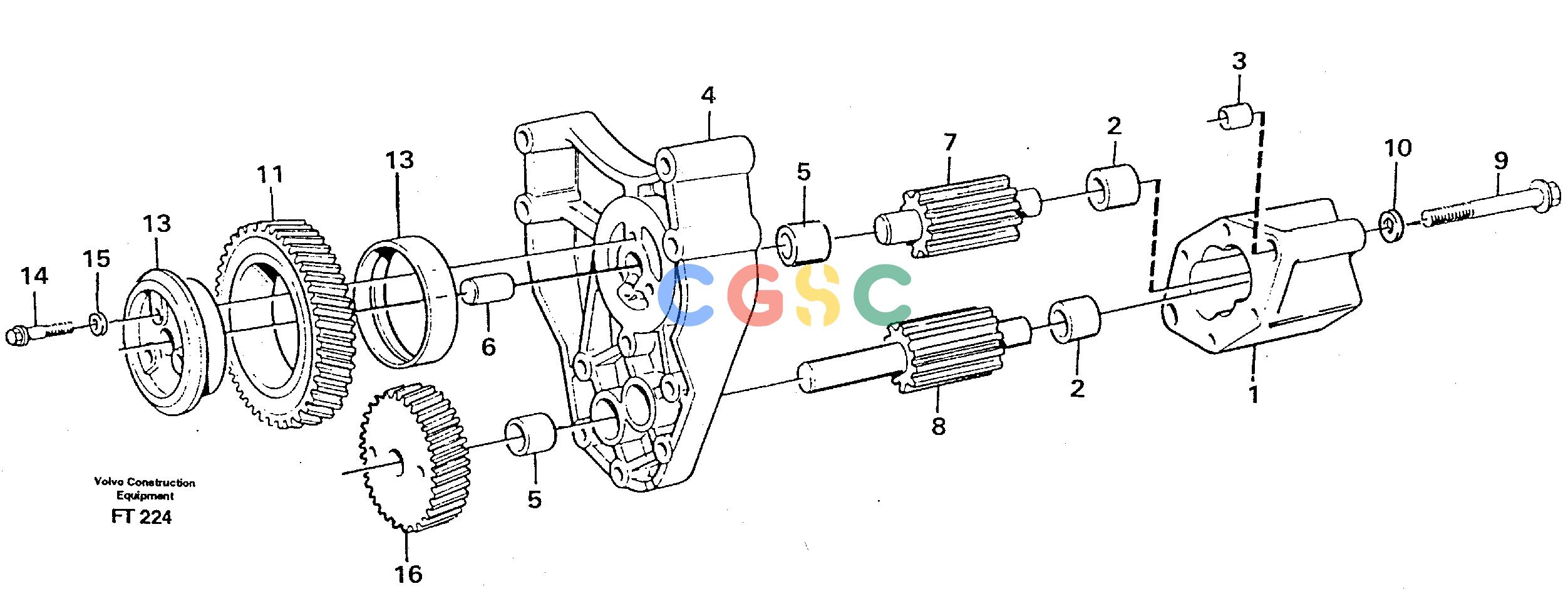

沃尔沃零件查询EC340 Oil pumpSER NO 1001- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
604 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE478649
|
[1] |
Oil pump
|
|
| 1. |
|
[1] |
Housing
|
|
| 2. |
VOE470347
|
[2] |
Bushing
|
|
| 3. |
VOE401146
|
[2] |
Guide sleeve
|
|
| 4. |
VOE470349
|
[1] |
Bracket
|
|
| 5. |
VOE470347
|
[2] |
Bushing
|
|
| 6. |
VOE191171
|
[1] |
Pin
|
|
| 7. |
|
[1] |
Shaft
|
|
| 8. |
VOE478232
|
[1] |
Drive Gear
|
|
| 9. |
VOE955531
|
[2] |
Hexagon screw
|
|
| 10. |
VOE13941907
|
[2] |
Washer
|
|
| 11. |
VOE422047
|
[1] |
Idler gear
|
|
| 12. |
VOE422314
|
[1] |
Bushing
|
|
| 13. |
VOE422313
|
[1] |
Bearing sleeve
|
|
| 14. |
VOE940186
|
[3] |
Hexagon screw
|
|
| 15. |
VOE13941907
|
[3] |
Washer
|
|
| 16. |
VOE478232
|
[1] |
Drive Gear
|
|
| |
VOE276156
|
[1] |
Repair kit
|
|
