神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (03-003) - AUTOMATIC TIMER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
759 次

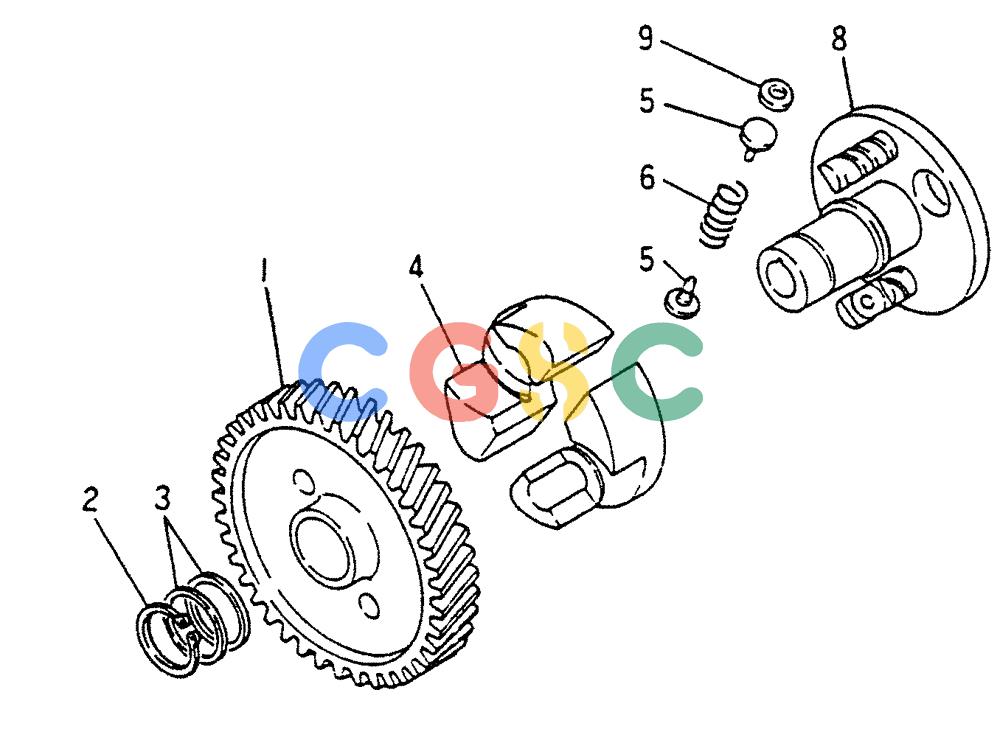

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-9. | VAME006077 | [1] | RADIO | KOBAUTOMATIC TIMER (INNER PARTS) (ND 0918001490) |
| 1. | VAME006025 | [1] | GEAR, DRIVE Z=40 (918500061) | |
| 2. | 9055728000 | [1] | RING, SNAP | |
| 3. | 9490132770 | [1] | WASHER T = 1.0 | |
| 3. | 9490132760 | [1] | WASHER T = 0.2 | |
| 3. | 9490132950 | [1] | WASHER T = 0.1 | |
| 4. | 918360023 | [2] | WEIGHT, TIMER | |
| 5. | 918170050 | [4] | SEAT, SPG | |
| 6. | 918190282 | [2] | SPRING,TIMER | |
| 8. | 918100890 | [1] | HUB SUB ASSY | |
| 9. | 9490131480 | [1] | WASHER T=0.3 | |
| 9. | 9490131960 | [1] | WASHER T = 0.1 | |
| 9. | 9490131970 | [1] | WASHER T = 0.2 | |
| 9. | 9490131980 | [1] | WASHER T = 0.5 | |
| 9. | 9490131990 | [1] | WASHER T = 1.0 | |
