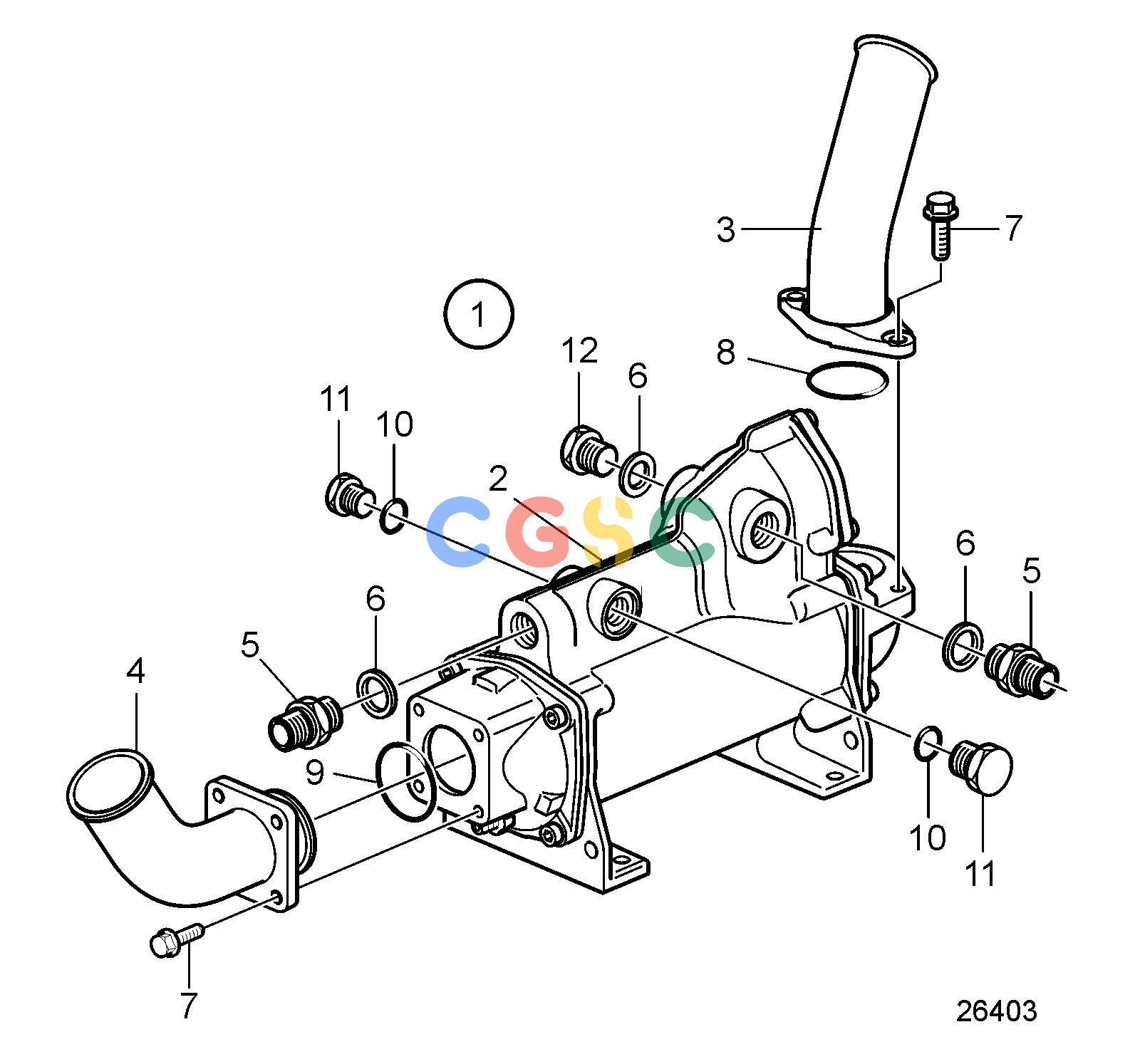

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Cooling SystemOil Cooler for Reverse Gear, KCEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
474 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21891144
|
[1] |
Oil cooler
|
|
| 2. |
|
|
|
|
| 2. |
3843997
|
[1] |
Heat exchanger
|
Replaced by next part number
|
| 2. |
22108637
|
[1] |
Heat exchanger
|
|
| 3. |
3842588
|
[1] |
Sea-water pipe
|
|
| 4. |
3830257
|
[1] |
Pipe elbow
|
|
| 5. |
984670
|
[2] |
Nipple
|
|
| 6. |
982508
|
[3] |
Gasket
|
|
| 7. |
946173
|
[6] |
Flange screw
|
|
| 8. |
925092
|
[1] |
O-ring
|
|
| 9. |
843584
|
[1] |
Gasket
|
|
| 10. |
11998
|
[2] |
Gasket
|
|
| 11. |
960630
|
[2] |
Plug
|
|
| 12. |
914394
|
[1] |
Plug
|
|
