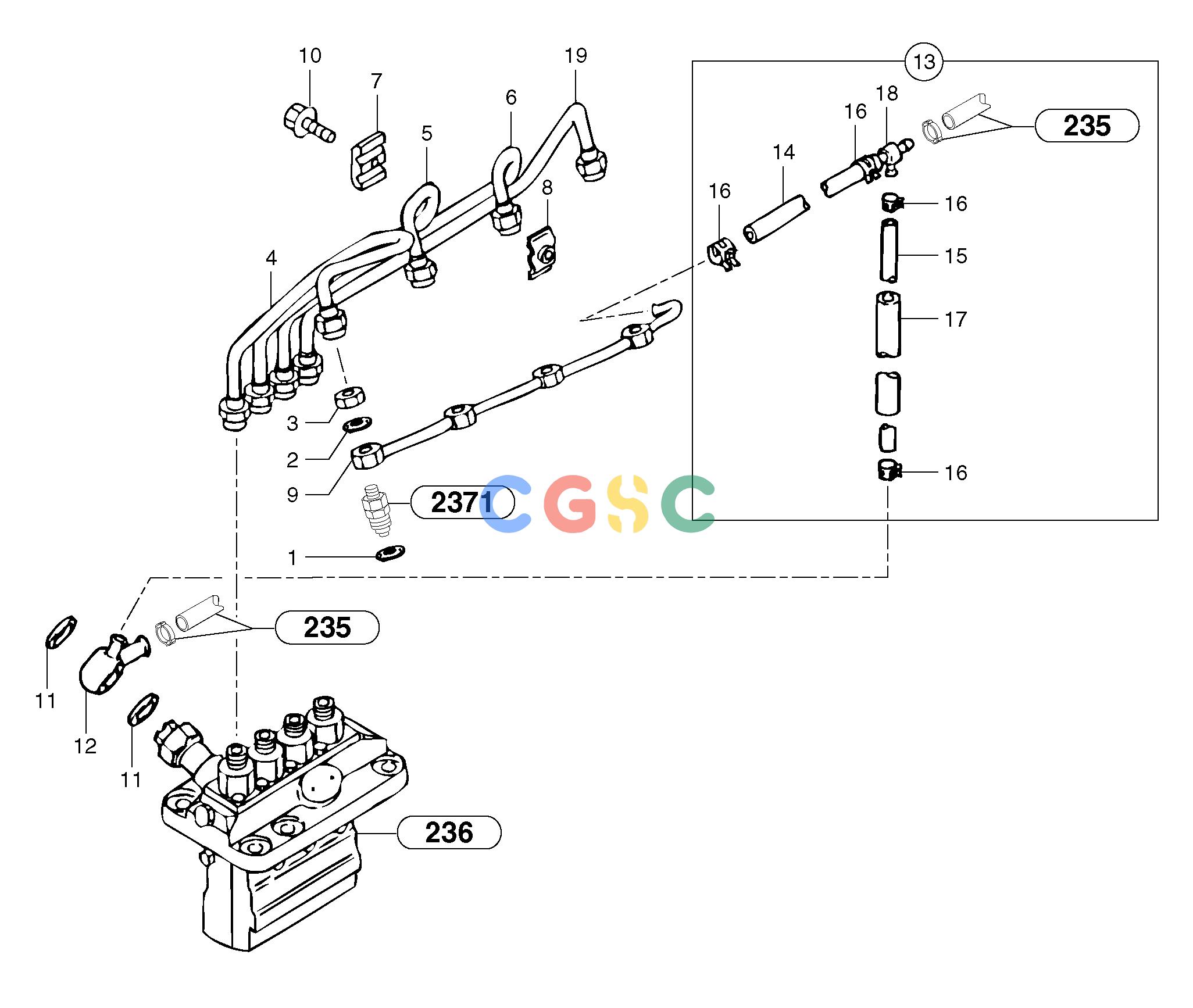

沃尔沃零件查询EC35 Fuel circuit : injection pumpTYPE 283283.10151 283.18462-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
266 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
PJ7410718
|
[4] |
Seal
|
|
| 2. |
PJ7410717
|
[4] |
Seal
|
|
| 3. |
PJ7410716
|
[4] |
Nut
|
|
| 4. |
PJ7415495
|
[1] |
Pipe
|
|
| 5. |
PJ7415496
|
[1] |
Injection pipes
|
|
| 6. |
PJ7415497
|
[1] |
Pipe
|
|
| 7. |
PJ7410317
|
[3] |
Flange
|
|
| 8. |
PJ7410316
|
[3] |
Flange
|
|
| 9. |
PJ7415499
|
[1] |
Tube Assembly
|
|
| 10. |
PJ7411293
|
[3] |
Attachment kit
|
|
| 11. |
PJ7411298
|
[2] |
Seal
|
|
| 12. |
PJ7411347
|
[1] |
Nipple
|
|
| 13. |
PJ7418397
|
[1] |
Tube Assembly
|
S4L2-63ES
|
| 13. |
PJ7418396
|
[1] |
Tube Assembly
|
S4L2-Y163ES
|
| 14. |
PJ7417850
|
[1] |
Fuel pipe
|
|
| 15. |
PJ7415381
|
[1] |
Fuel pipe
|
|
| 16. |
PJ7415382
|
[4] |
Clamp
|
|
| 17. |
PJ7415493
|
[1] |
Fuel pipe
|
|
| 18. |
PJ7410172
|
[1] |
Tee
|
|
| 19. |
PJ7415498
|
[1] |
Pipe
|
|
