沃尔沃零件查询EC35 Fuel circuitTYPE 283283.10151 283.18462-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
842 次

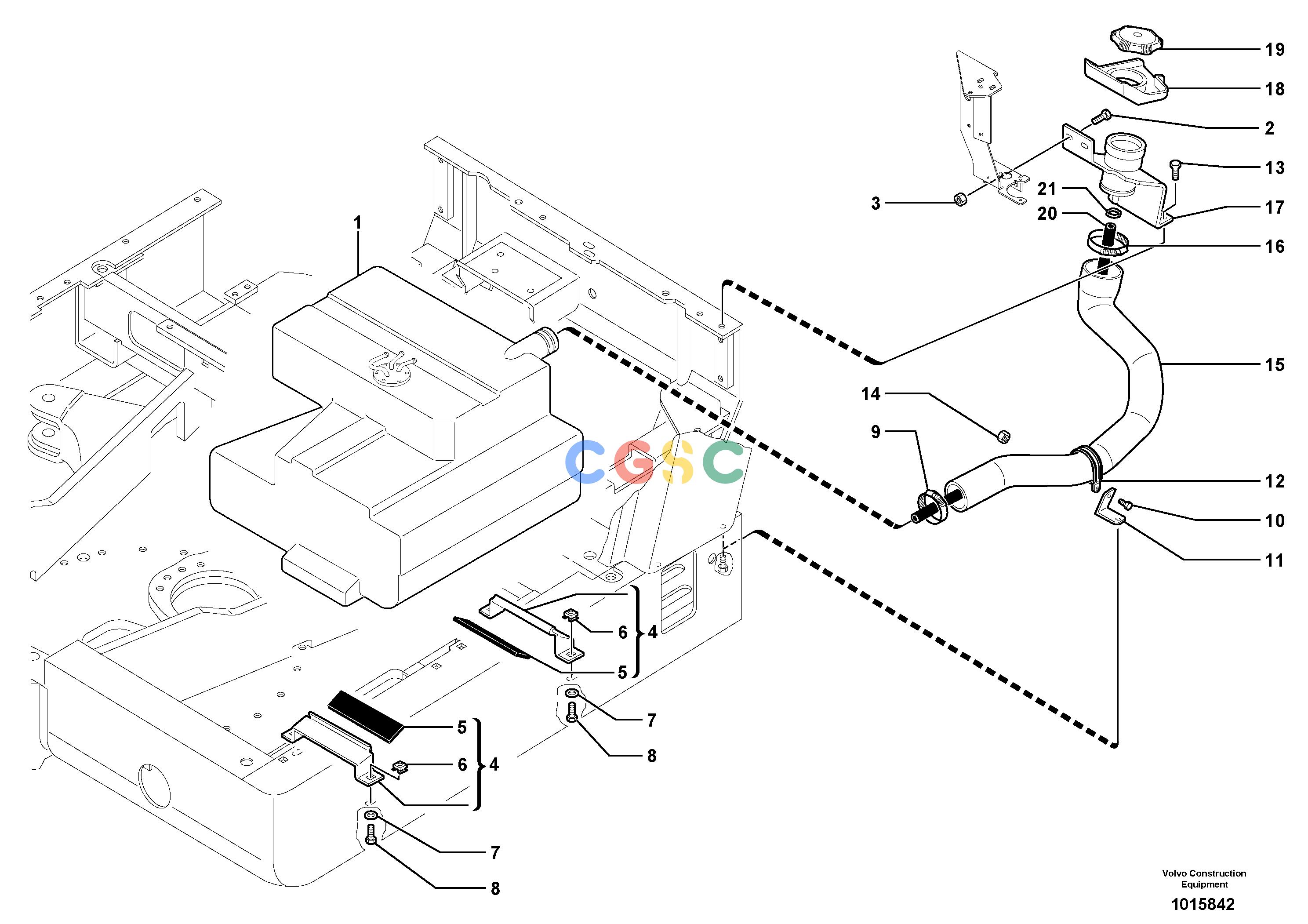

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Fuel tank
|
|
| 2. |
VOE945444
|
[2] |
Flange screw
|
|
| 3. |
VOE945408
|
[2] |
Flange nut
|
|
| 4. |
VOE11802317
|
[2] |
Flange
|
|
| 5. |
VOE11802324
|
[1] |
Strap
|
|
| 6. |
VOE11802303
|
[2] |
Cage nut
|
|
| 7. |
VOE960143
|
[4] |
Plain washer
|
|
| 8. |
VOE946329
|
[4] |
Flange screw
|
|
| 9. |
VOE11806262
|
[1] |
Cable clamp
|
|
| 10. |
VOE946173
|
[1] |
Flange screw
|
|
| 11. |
VOE11805327
|
[1] |
Support
|
|
| 12. |
VOE11806253
|
[1] |
Cable clamp
|
|
| 13. |
VOE946440
|
[2] |
Flange screw
|
|
| 14. |
VOE945408
|
[1] |
Flange nut
|
|
| 15. |
VOE11806104
|
[1] |
Hose
|
|
| 16. |
VOE11806258
|
[1] |
Cable clamp
|
|
| 17. |
VOE11805674
|
[1] |
Inlet flange
|
|
| 18. |
VOE11806436
|
[1] |
Deflector
|
|
| 19. |
VOE11802315
|
[1] |
Plug
|
|
| 20. |
VOE11806867
|
[1] |
Tube
|
L = 1180MM
|
| 21. |
VOE947520
|
[1] |
Hose clamp
|
|
