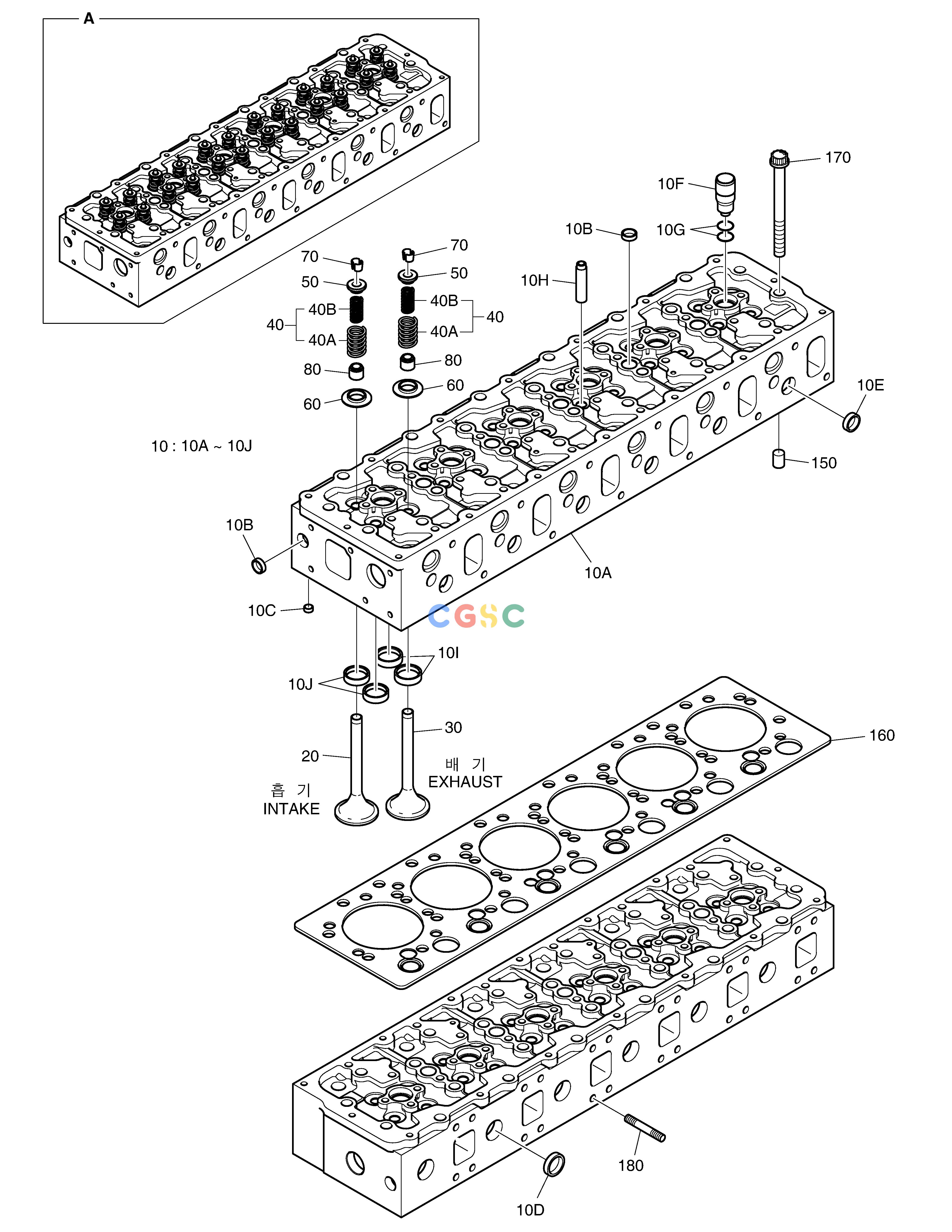

斗山零件查询CYLINDER HEAD DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
984 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
150113-00120
|
[1] |
CYLINDER HEAD ASS'Y
|
|
| 10. |
65.03101-6075G
|
[1] |
HEAD;CYLINDER
|
150113-00120
|
| 10A. |
65.03101-1056B
|
[1] |
HEAD;CYLINDER
|
|
| 10A. |
150113-00118
|
[1] |
HEAD;CYLINDER
|
|
| 10B. |
65.90302-0045
|
[17] |
. PLUG;CORE
|
|
| 10C. |
65.90302-0027
|
[1] |
. PLUG;CORE
|
|
| 10D. |
65.90302-0042
|
[6] |
. PLUG;CORE
|
|
| 10E. |
65.90302-0048
|
[6] |
. PLUG,CORE
|
|
| 10F. |
65.03205-0006B
|
[6] |
. BUSH,INJ. NOZZLE
|
|
| 10G. |
65.96501-0088
|
[12] |
. O-RING
|
|
| 10H. |
65.03201-1052B
|
[24] |
VALVE;GUIDE
|
|
| 10I. |
65.03203-1055B
|
[12] |
SEAT;INTAKE VALVE
|
|
| 10J. |
65.03203-1056B
|
[12] |
SEAT;EXHAUST VALVE
|
|
| 150. |
65.91030-0005
|
[2] |
PIN
|
|
| 160. |
65.03901-0074
|
[1] |
GASKET;CYLINDER HEAD
|
|
| 170. |
65.90021-0005
|
[26] |
BOLT;COLLARED HEX.
|
|
| 180. |
65.90201-0113
|
[24] |
BOLT;STUD
|
|
| 20. |
65.04101-0059C
|
[12] |
VALVE
|
|
| 30. |
65.04101-0060B
|
[12] |
VALVE
|
|
| 40. |
65.04102-6011B
|
[24] |
SPRING;VALVE
|
|
| 40A. |
65.04102-0020B
|
[1] |
SPRING;VALVE
|
|
| 40B. |
65.04102-0021A
|
[1] |
SPRING;VALVE
|
|
| 50. |
65.04103-0016
|
[24] |
PLATE;VALVE SPRING
|
|
| 60. |
65.90701-0097B
|
[24] |
WASHER
|
|
| 70. |
65.04104-0008
|
[48] |
COTTER;VALVE
|
|
| 80. |
65.04902-0020
|
[24] |
SEAL;VALVE STEAM
|
|
| A. |
150113-00216
|
[1] |
CYL. HEAD SUB ASSY
|
|
