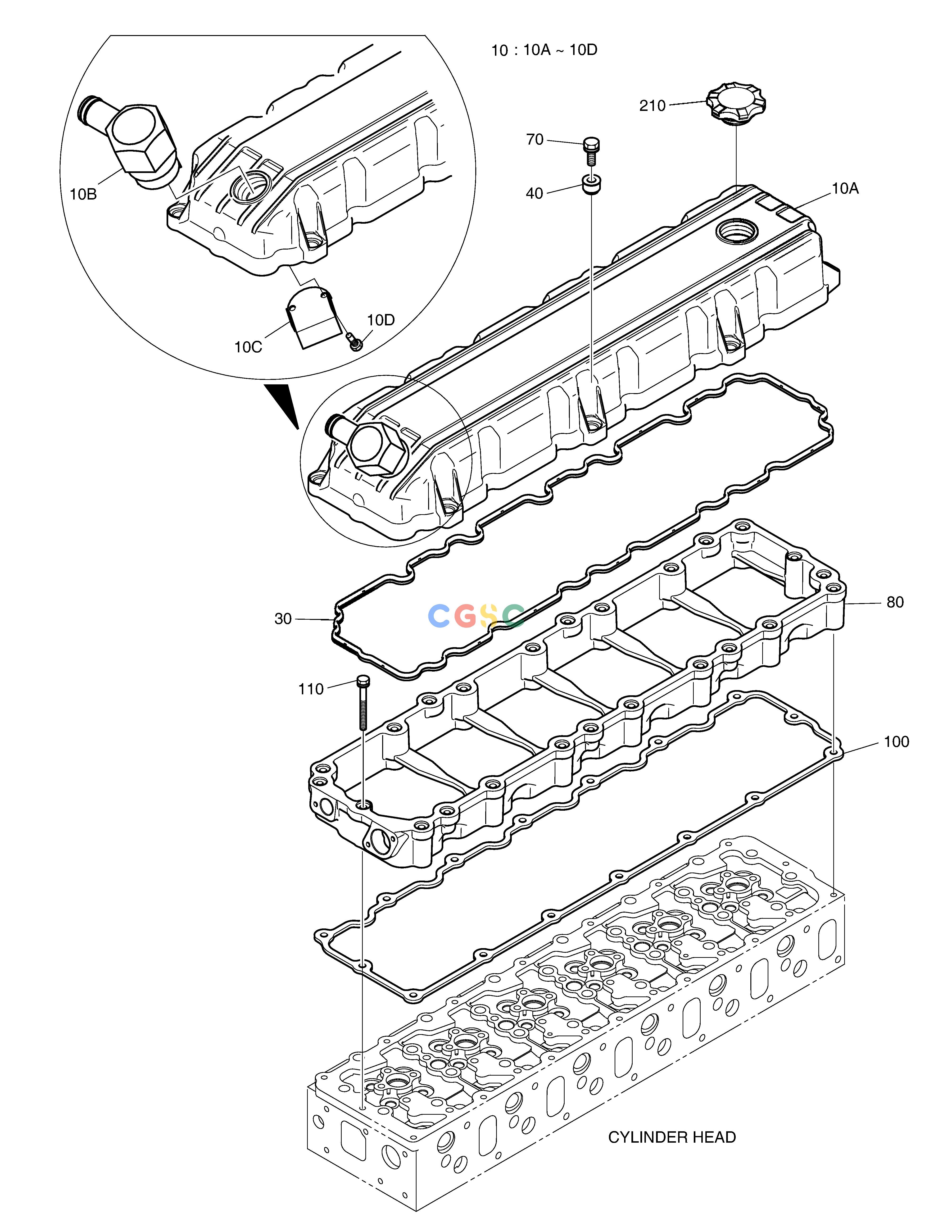

斗山零件查询CYLINDER HEAD COVER DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
579 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.03401-5008B
|
[1] |
CYLINDER HEAD COVER ASS'Y
|
|
| 100. |
65.03905-0045
|
[1] |
GASKET;CYLINDER HEAD COVER
|
400603-00048
|
| 100. |
400603-00048
|
[1] |
GASKET;INTERMEDIATE COVER
|
|
| 10A. |
65.03401-0085B
|
[1] |
COVER;CYLINDER HEAD
|
|
| 10B. |
65.01810-5009
|
[1] |
ADAPTER
|
|
| 10C. |
65.03440-0015
|
[1] |
PLATE;BAFFLE
|
|
| 10D. |
06.01280-6807
|
[2] |
BOLT;HEX
|
|
| 110. |
65.90020-0110A
|
[16] |
BOLT;COLLARED HEX.
|
|
| 210. |
65.01810-5011
|
[1] |
CAP;OIL FILLER
|
|
| 30. |
65.03905-0032
|
[1] |
GASKET;COVER
|
|
| 40. |
65.03905-5002
|
[8] |
PACKING;HEAD COVER
|
|
| 70. |
65.90020-0109
|
[8] |
BOLT;COLLARED HEX
|
|
| 80. |
65.03402-0007B
|
[1] |
COVER;INTERMEDIATE
|
110518-00005
|
| 80. |
110518-00005
|
[1] |
COVER;INTERMEDIATE
|
110518-00043
|
| 80. |
110518-00043
|
[1] |
COVER,INTERMEDIATE
|
|
