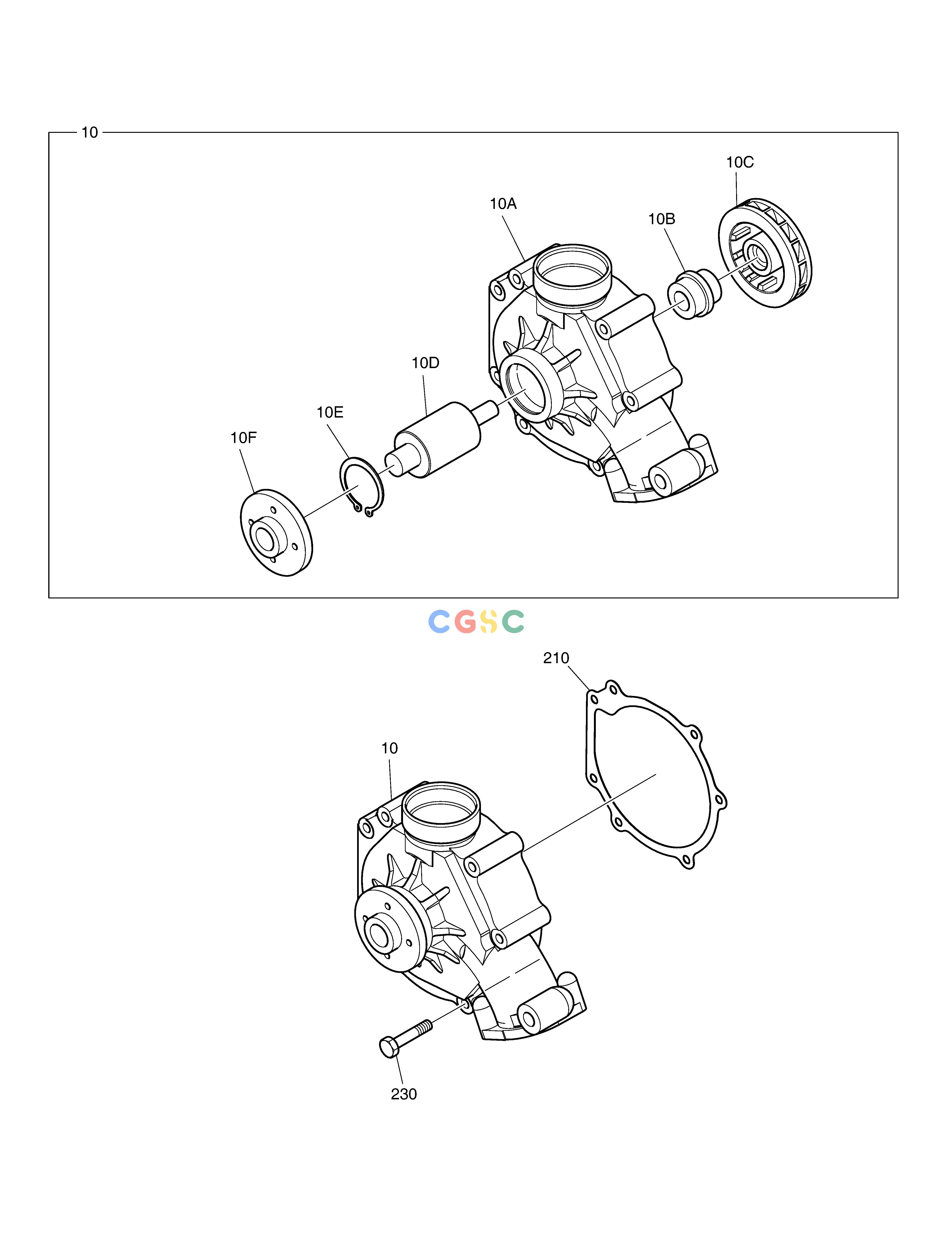

斗山零件查询WATER PUMP DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
893 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.06500-6174D
|
[1] |
WATER PUMP ASS’Y
|
400921-00040A
|
| 10. |
400921-00040A
|
[1] |
WATER PUMP ASSY
|
|
| 10A. |
65.06501-0091C
|
[1] |
HOUSING;WATER PUMP
|
|
| 10A. |
400923-00022
|
[1] |
HOUSING,WATER PUMP
|
|
| 10B. |
65.06520-6007
|
[1] |
. SEAL;MECHANICAL
|
65.06520-6008
|
| 10B. |
65.06520-6008
|
[1] |
. SEAL;MECHANICAL
|
|
| 10C. |
65.06506-0028
|
[1] |
IMPELLER;WATER PUMP
|
400902-00008A
|
| 10C. |
400902-00008A
|
[1] |
IMPELLER;FOR WATER PUMP
|
|
| 10D. |
65.93410-0027
|
[1] |
BEARING
|
65.93410-0087
|
| 10D. |
65.93410-0087
|
[1] |
. BEARING
|
|
| 10E. |
06.29020-0132
|
[1] |
. SNAP RING
|
|
| 10F. |
65.06504-0030A
|
[1] |
HUB
|
|
| 210. |
65.06901-0039
|
[1] |
GASKET;WATER PUMP
|
|
| 230. |
06.01913-3125
|
[7] |
BOLT ASS`Y M8X70
|
|
