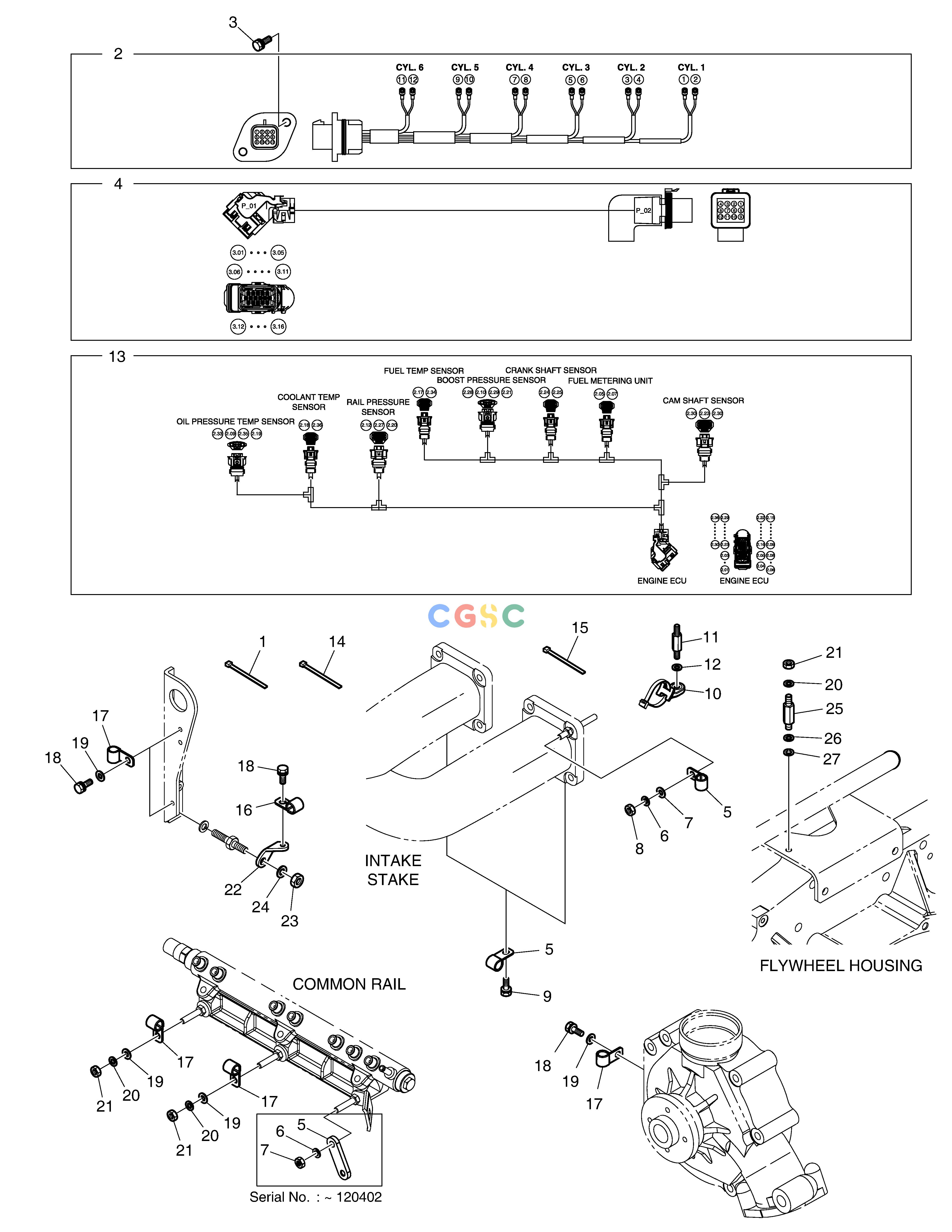

斗山零件查询WIRE HARNESS DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
360 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.97460-0008
|
[9] |
BAND;TENSION
|
|
| 1. |
310101-00172
|
[6] |
TIE,CABLE
|
|
| 10. |
65.97401-5024
|
[2] |
CLIP;PIPE
|
124-00209D4
|
| 10. |
120402-00259
|
[1] |
|
110420-00330
|
| 10. |
110420-00330
|
[1] |
BRACKET
|
|
| 10. |
124-00209D4
|
[2] |
CLIP
|
|
| 11. |
65.90201-0128
|
[1] |
BOLT;STUD
|
|
| 12. |
06.16731-2107
|
[1] |
WASHER
|
|
| 13. |
310207-01704
|
[1] |
|
310207-01704A
|
| 13. |
310207-01704A
|
[1] |
|
|
| 13. |
65.29101-6211C
|
[1] |
WIRE;ELECTIRC
|
|
| 14. |
65.97460-0005
|
[1] |
BAND;TENSION
|
|
| 15. |
120602-00020
|
[1] |
|
310101-00035
|
| 15. |
310101-00035
|
[1] |
TIE,CABLE
|
|
| 16. |
65.97401-5024
|
[1] |
CLIP;PIPE
|
|
| 17. |
65.97401-0196
|
[5] |
CLIP;PIPE
|
|
| 18. |
06.01923-3110
|
[5] |
BOLT ASS'Y M8X12
|
|
| 18. |
06.01923-3110
|
[4] |
BOLT ASS'Y M8X12
|
|
| 19. |
06.15010-2311
|
[4] |
WASHER
|
|
| 2. |
310208-00439
|
[1] |
|
|
| 2. |
65.29101-6137E
|
[1] |
WIRE;ELECTIRC
|
|
| 20. |
06.16731-2107
|
[5] |
WASHER
|
|
| 20. |
06.16731-2107
|
[3] |
WASHER
|
|
| 21. |
06.11063-8214
|
[5] |
. NUT
|
|
| 21. |
06.11063-8214
|
[3] |
. NUT
|
|
| 22. |
65.09440-5005
|
[1] |
BRACKET
|
|
| 23. |
06.11063-9216
|
[1] |
NUT;HEX. M12X1.5
|
|
| 24. |
06.16731-2109
|
[1] |
WASHER;SPRING A12
|
|
| 25. |
65.90201-0122
|
[1] |
BOLT;STUD
|
|
| 25. |
120122-00024
|
[1] |
WASHER
|
|
| 26. |
06.16731-2108
|
[1] |
WASHER;SPRING
|
|
| 27. |
06.15010-2312
|
[1] |
WASHER;PLAIN
|
|
| 3. |
06.01923-2911
|
[2] |
BOLT ASS`Y M6X16
|
|
| 4. |
65.29101-6155C
|
[1] |
WIRE;ELECTIRC
|
|
| 4. |
310207-01705
|
[1] |
|
|
| 4. |
310207-04024
|
[1] |
|
|
| 5. |
65.29150-0005
|
[1] |
BRACKET;HARNESS
|
|
| 5. |
124-00209D4
|
[2] |
CLIP
|
|
| 6. |
06.16731-2107
|
[1] |
WASHER
|
|
| 6. |
06.15010-2311
|
[1] |
WASHER
|
|
| 7. |
06.11063-8214
|
[1] |
. NUT
|
|
| 7. |
06.16731-2107
|
[1] |
WASHER
|
|
| 8. |
06.11063-8214
|
[1] |
. NUT
|
|
| 9. |
06.01923-3110
|
[1] |
BOLT ASS'Y M8X12
|
|
